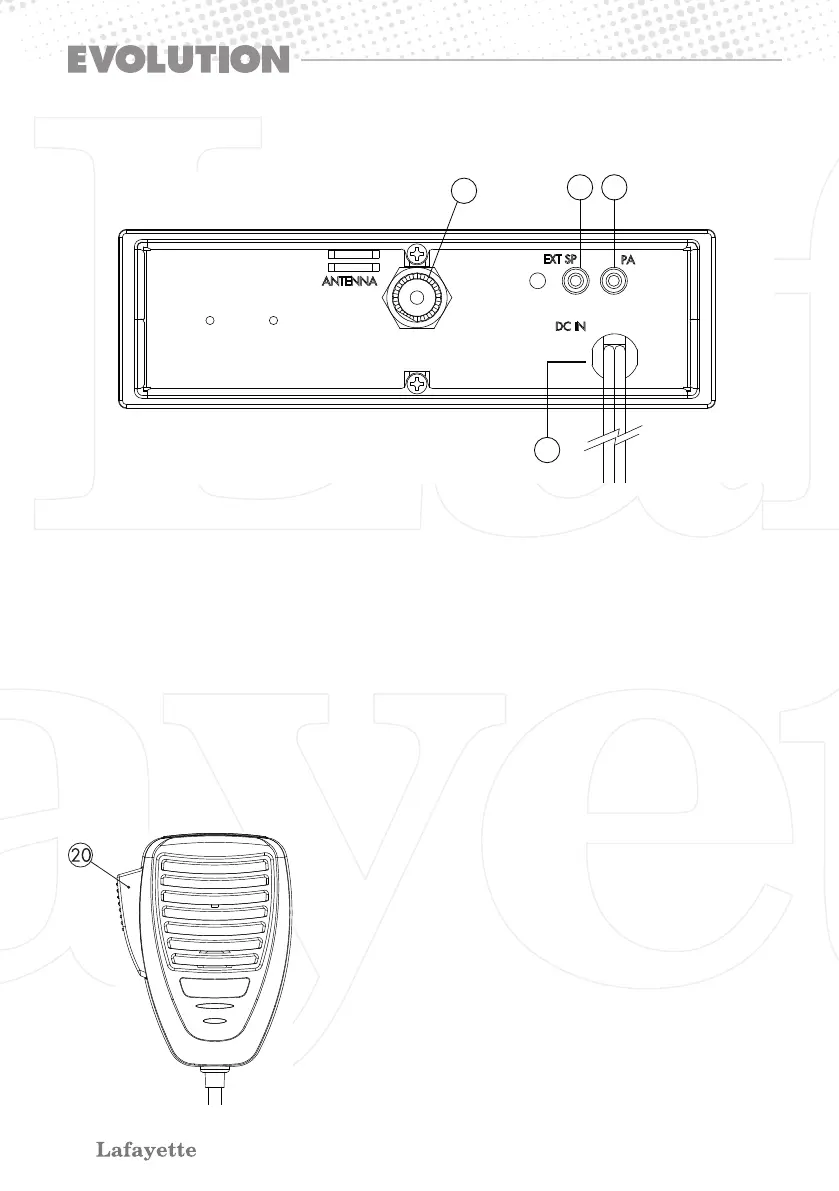

Rear Panel
16. Antenna connector
Please refer to the section Antenna installation.
17. EXT (External) speaker Jack
This jack is for connecting an (optional) external speaker.
18. PA Jack
By connecting with an external loudspeaker, you can use the unit as an auio-amplifier.
19. DC Power Cord
Power Supply cable for DC12 V or 24 V.
Microphone
20. PTT (Push-to-talk) key
Transmitter key, press the PTT key to transmit and release to
return to receive mode.
