LAGOON 380
PLUMBING
62

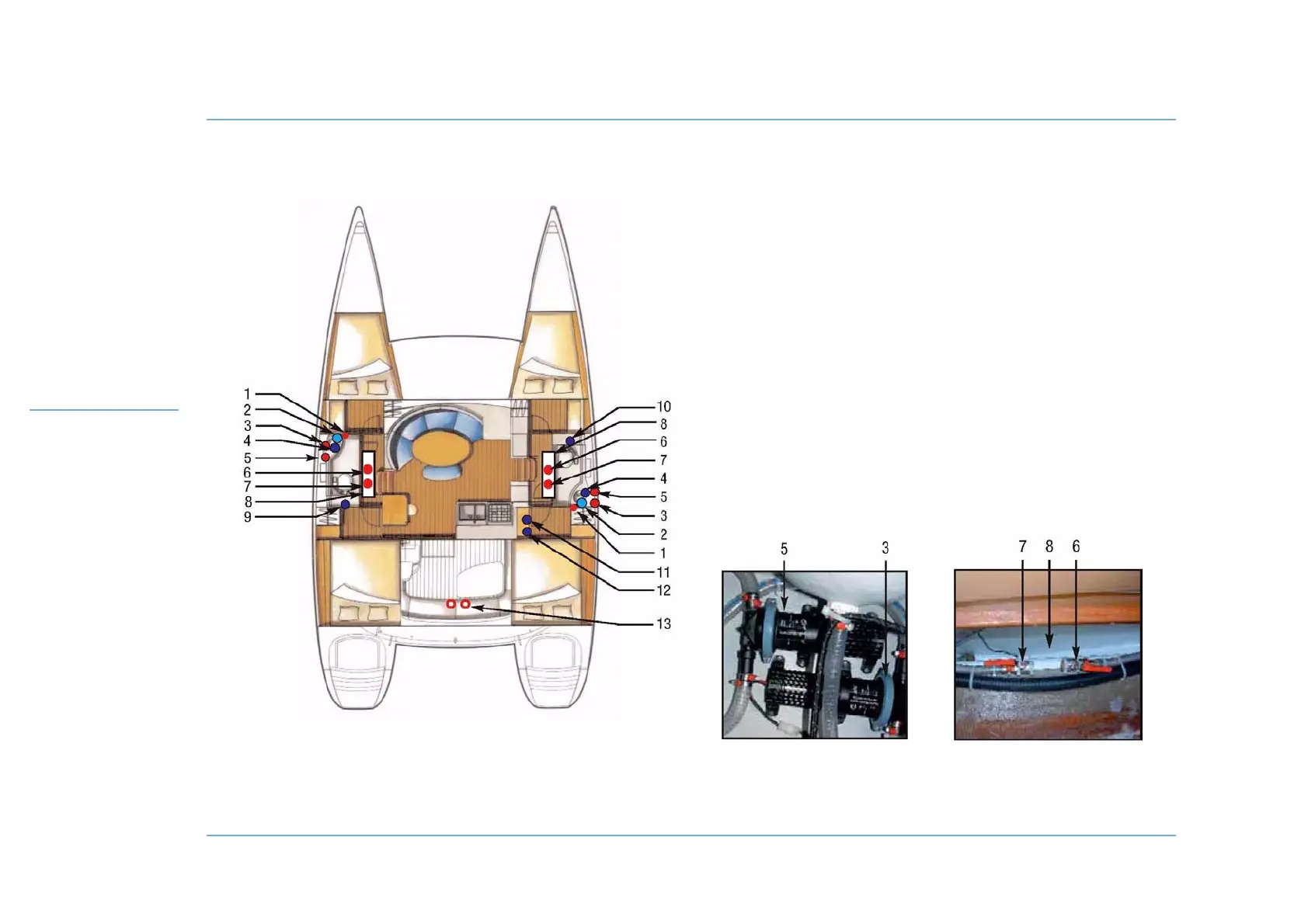

WASTE WATER SYSTEM
The positions are the same for the other layout version.
1. Switch - shower pump
2. Suction valve WC
3. Pump - Shower draining
4. Valve - Washbasin draining
5. Electric bilge pump
6. Drainage valve for forward
watertight compartment
7. Drainage valve for aft water-
tight compartment
8. Sump
9. WC evacuation / Sewage
tank - To port
10. Valve - Forward starboard
toilet drain
11. Vannes - Icebox drainage
12. Vannes - Sink draining
13. Manual bilge pump
