LAGOON 380
PLUMBING
64
1. Stuffing box.
2. Non-return valve.
3. Electric bilge pumps with automatic start mechanism.
4. Manual bilge pump - Cockpit.
5. Sump.
6. Drainage outlet.

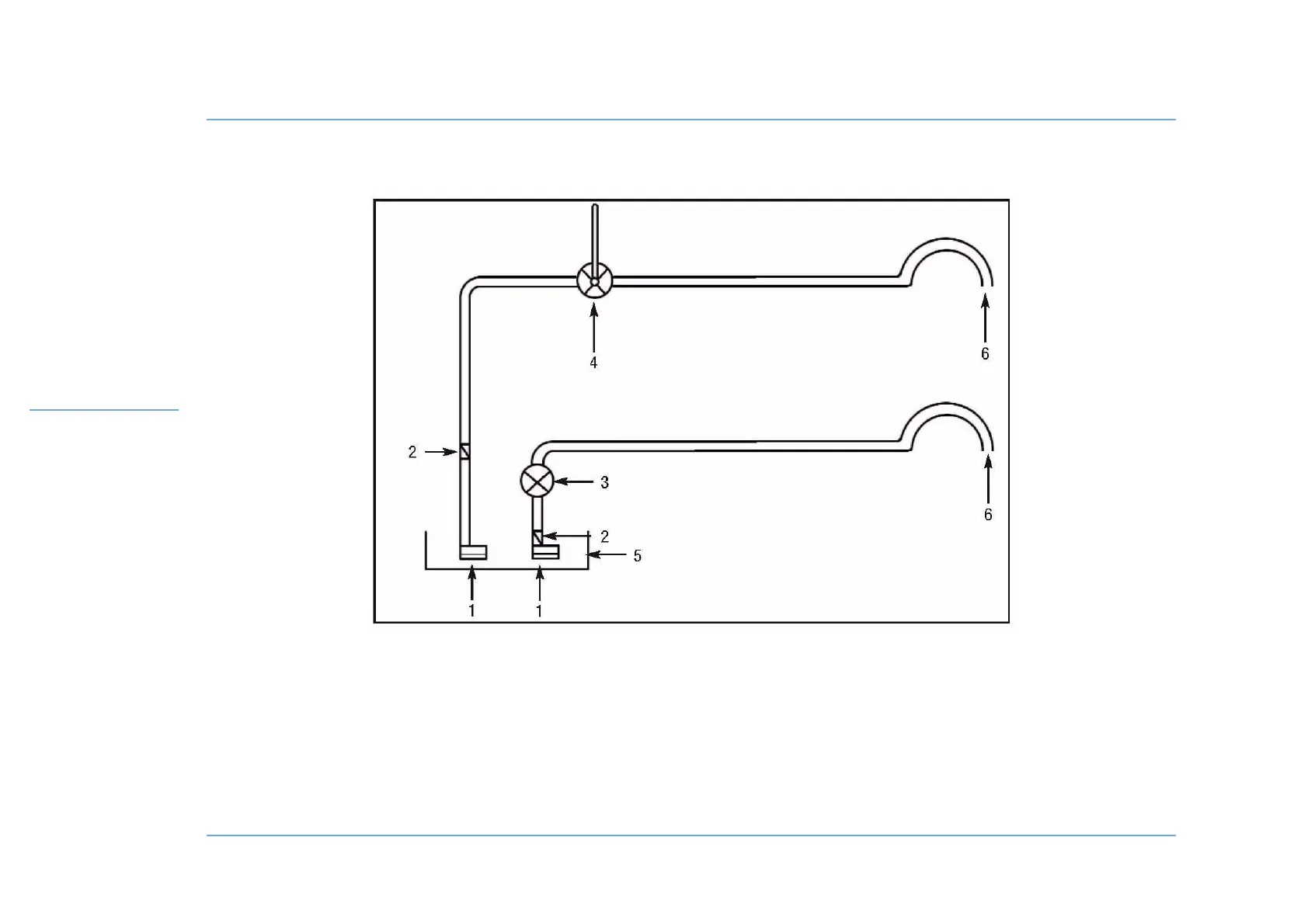

SCHEMATIC DIAGRAM DRAINAGE SYSTEM
