LAGOON 421
ELECTRICITY
58

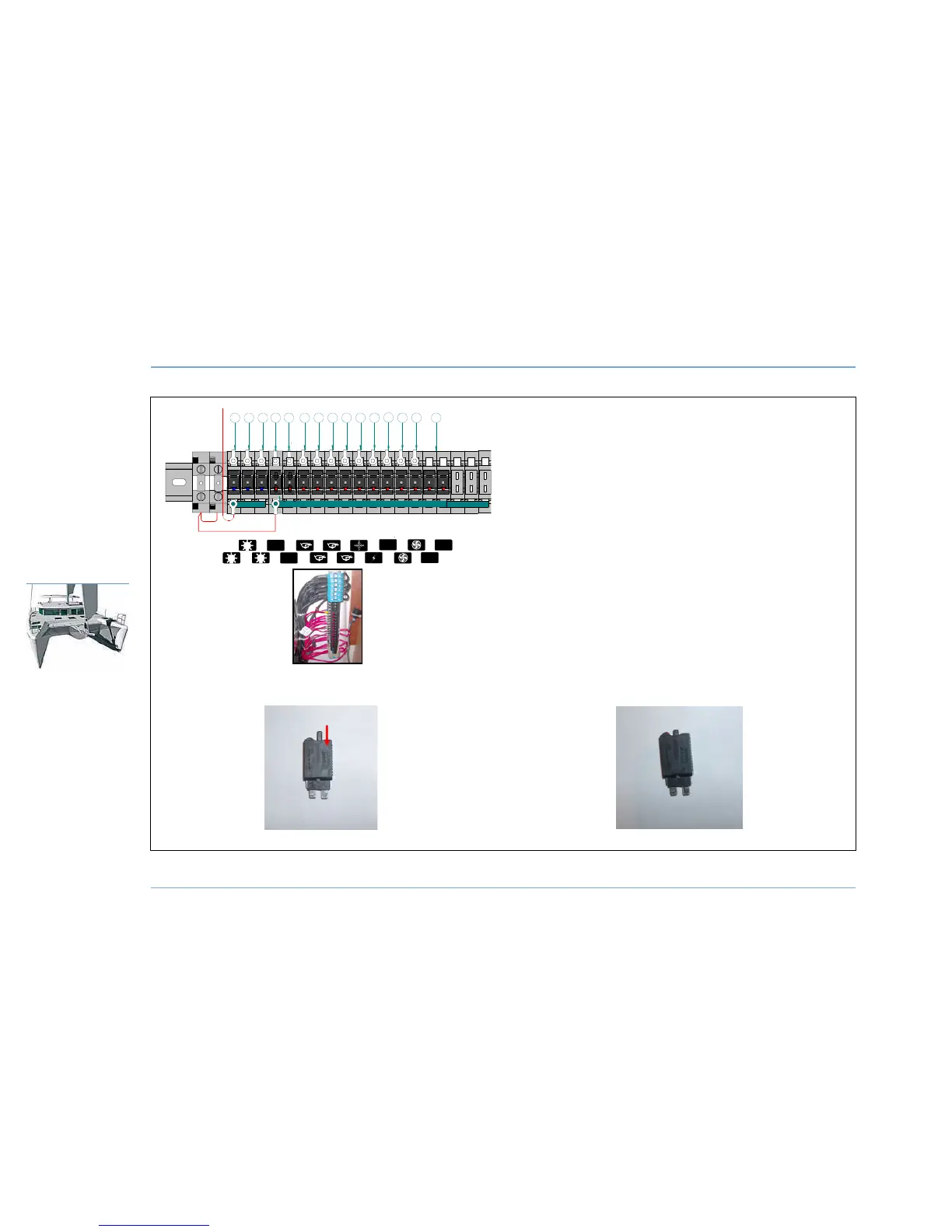

CIRCUIT BREAKERS 12V
1 - Interior lighting - Hull - To port
2 - Chart table lighting - Cockpit locker - Galley - Cockpit
3 - Interior lighting - Hull - To starboard
4 - Shower pump - To port
5 - Shower pump - To starboard
6 - Electric bilge pump - To starboard
7 - Automatic bilge pump - To starboard
8 - Electric bilge pump - To port
9 - Automatic bilge pump - To port
10 - Fridge
11 - 12 V socket
12 - VHF - Hifi
13 - Square cabin fan - To starboard
14 - Square cabin fan - To port
15 - Auxiliary x 2
Circuit breakers are resettable. Press the tab manually on black back on the road circuit (see photo)
BREAKER DISARMED ARMED BREAKER
          
VHF
HIFI
AUX 1
AUX 2
douche
douche

1 2 3 4 5 6 7 8 9 10 11
12
13 14 15
TECHNICAL ROOM
