LAGOON 421
6
ELECTRICITY
61
The generator is located in the central cockpit locker.
Its function is to re-supply the batteries via the chargers and to sup-
ply 110 V - 220 V electricity on board.
The generator is supplied by the main tank in the starboard hull.
Selection of the supply generator: Starboard aft cabin.
Lever pushed: Supply - Diesel - Tank.
Lever pulled: Supply - Diesel - Tank.
• OPERATION
The generator is started either at the generator itself or by the remo-
te control on the electrical panel after opening of the fuel valve (star-
board aft cabin) followed by the seawater cooling valve.
Concerning use and maintenance of the generator,refer to its ins-
tructions.
The battery charger can be used with shore power supply or with
the generator in use.
Lay out of: Starboard transom extension.
- Turn on the charger with the circuit breaker on the electrical panel.
Charger power: 40A.
Concerning use and maintenance of the charger refer to its instruc-
tions.
The inverter enables 220 V equipment to operate from 12 V supply.
Lay out of: Starboard transom extension.
- Turn on the inverter with the circuit breaker on the electrical panel.
For use and maintenance of the inverter refer to its instructions.

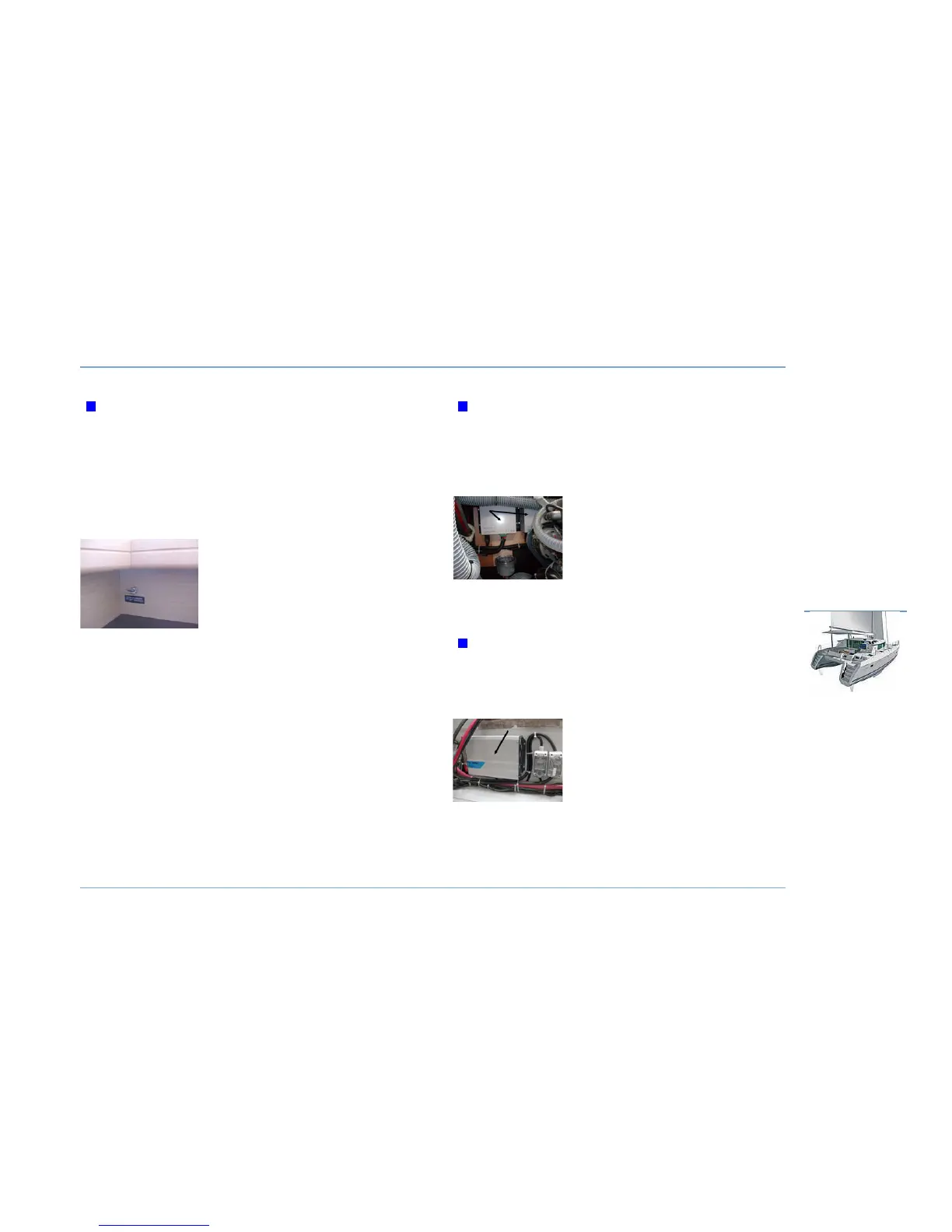

Generator Battery charger (optional extra)
Inverter (optional extra)
ELECTRICITY
