SHEAVES BOX
(STARBOARD AFT CABIN)

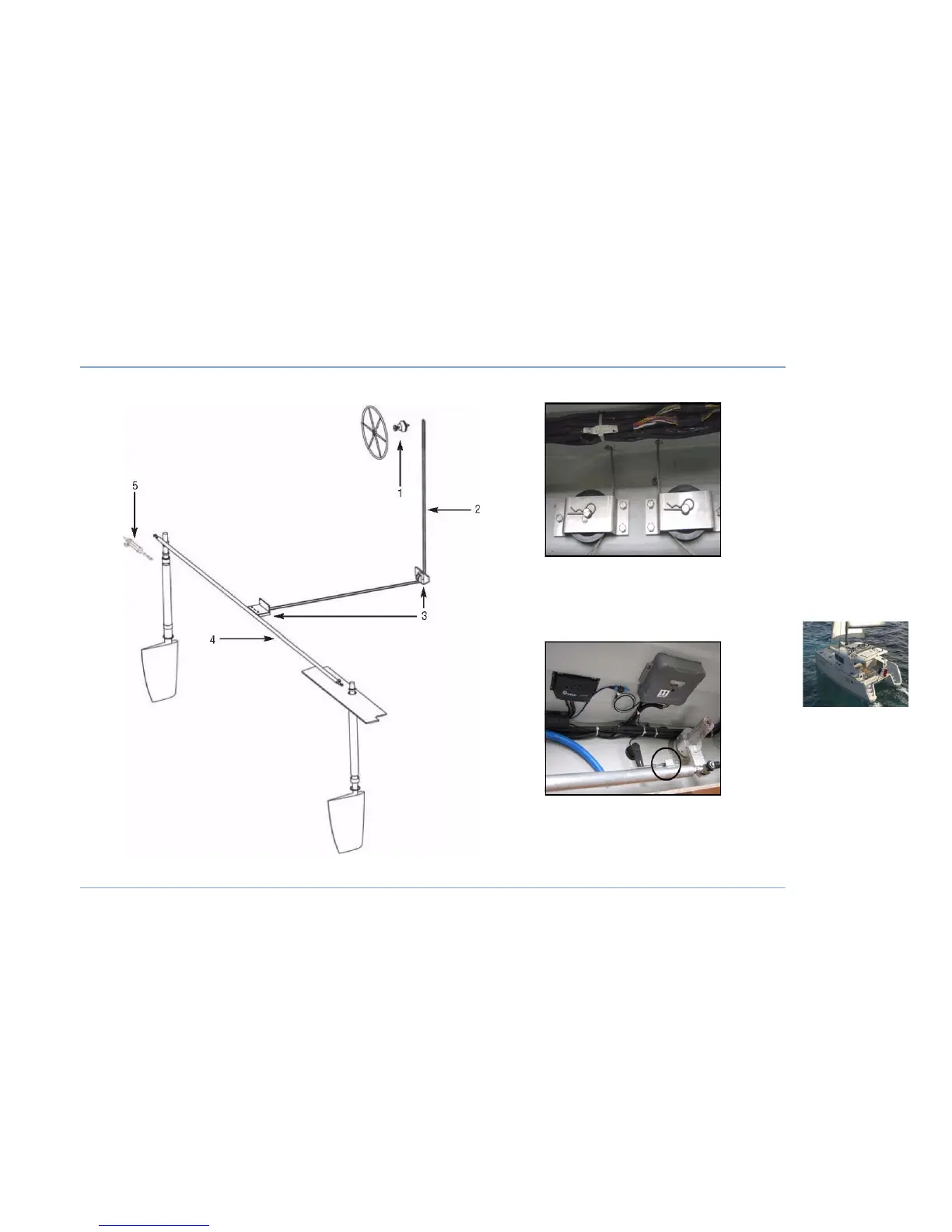

CABLE TENSION SYSTEM
1 - Steering rack.
2 - Ropes
3 - Sheaves box.
4 - Connecting rod.
5 - Autopilot ram (optional).
