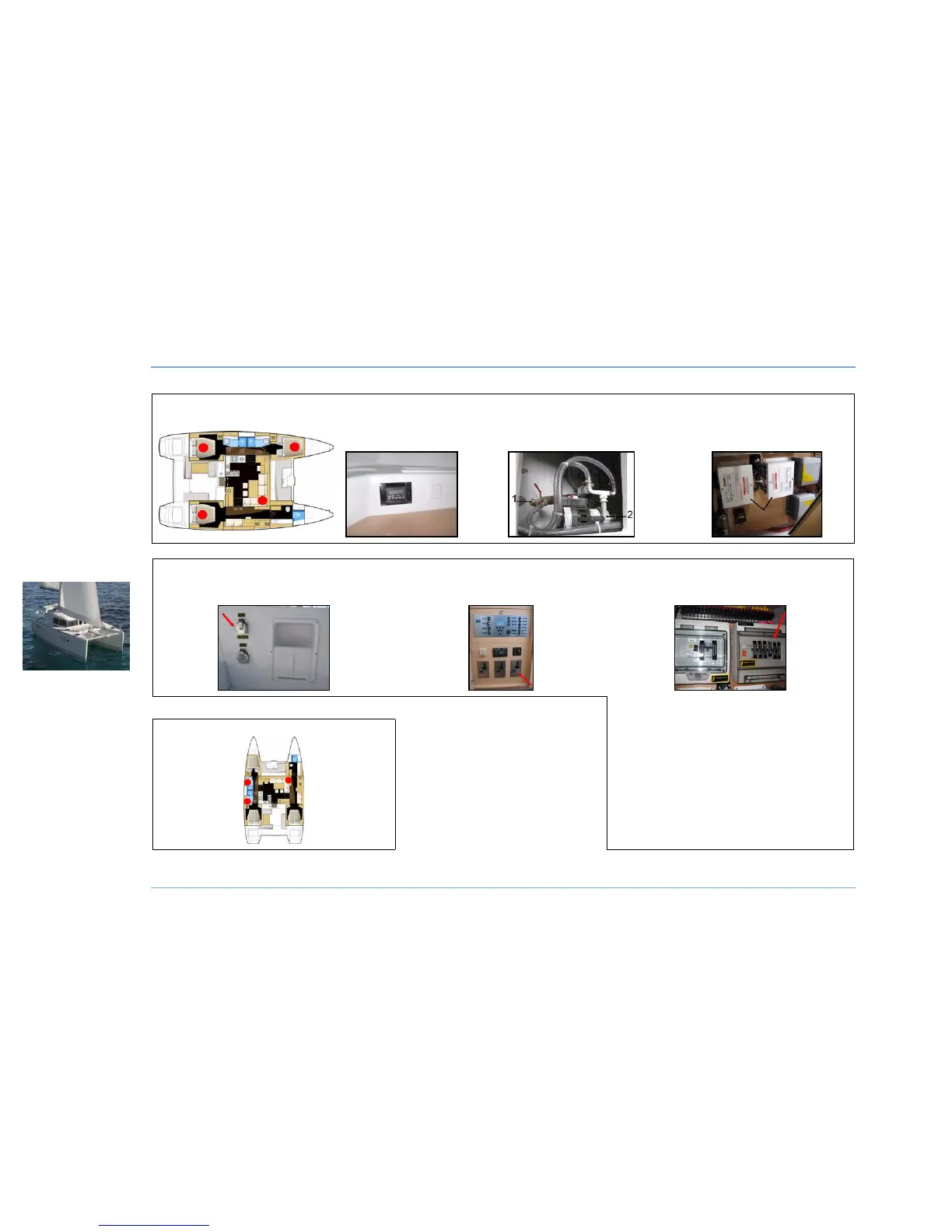

Lagoon 450 - Air Conditioning (Optional)

LAGOON 450
INTERIOR
52
COMPRESSORS -
LAY OUT OF
CONTROL
1. Seawater inlet
2. Seawater pump
Lay out of: Port passageway -
Starboard pasageway
Relay box - Seawater pump
Lay out of: Cupboard - Aft - Star-
board pasageway
SOCKET 220V
Lay out of: Starboard cockpit
MASTER SWITCH
Lay out of:
Electrical panel
CIRCUIT BREAKERS
Lay out of: Cupboard - Aft - Starboard
pasageway
from left to right:
Compressor - Port forward
Compressor - Saloon
Compressor - Starboard aft
Compressor - Port aft
Pump - To port
Pump - To starboard
DRAINAGE - SEA WATER
AIR CONDITIONING
