Lagoon 450 - Generator Operation and Maintenance

LAGOON 450
ELECTRICITY
62

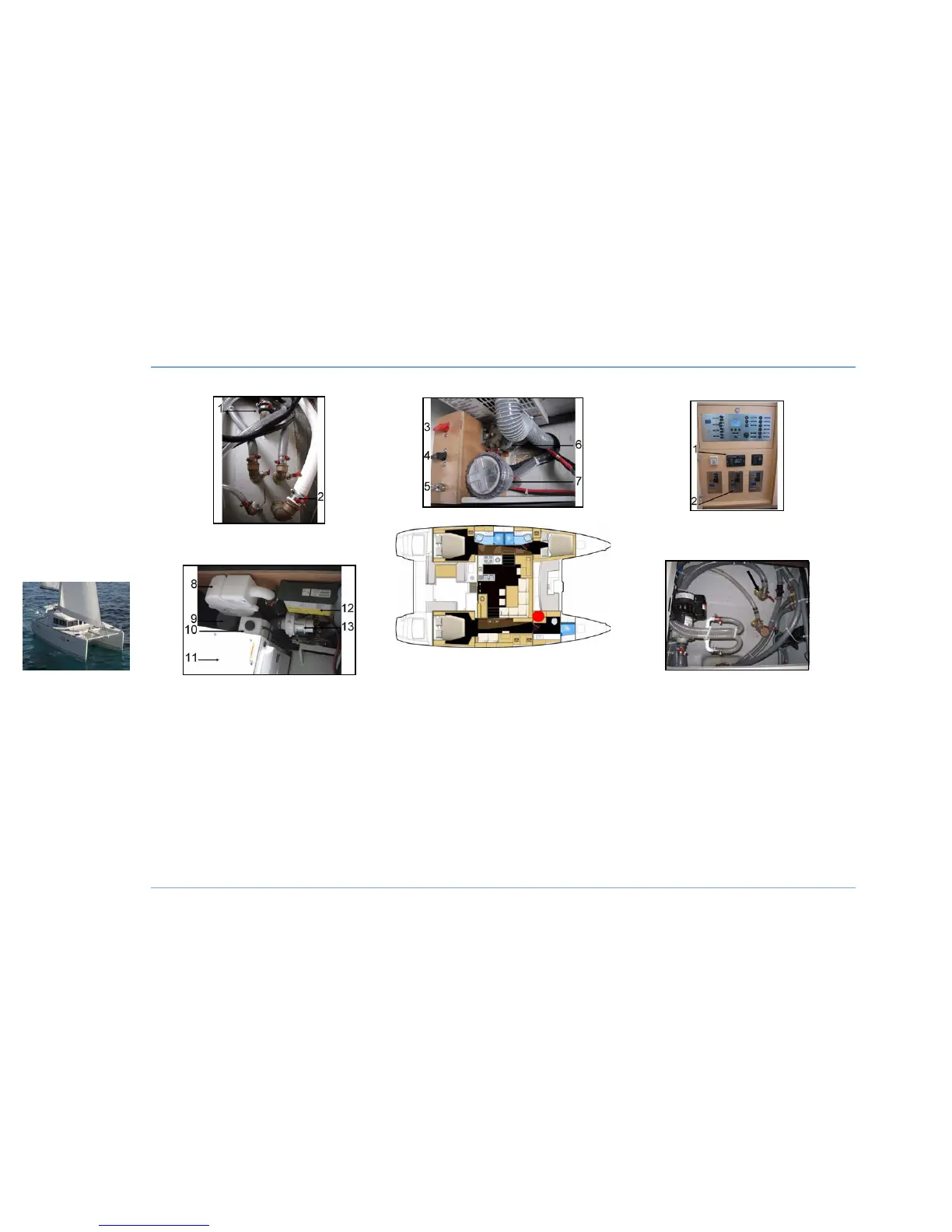

Position of elements
1. Remote control
2. Generator/shore commutator
Lay out of: Electrical panel
1. Outlet
2. Drainage - Sea water
3. Battery switch - Positive
4. Battery switch - Negative terminal
5. Pull switch - Selection (Supply - Diesel - Port tank / Starboard tank)
6. diesel filter
7. Sea water filter
8. Water - Gas separator
9. Water trap
10. Tank - Cooling liquid
11. Generator
12. Battery charger
13. Ventilator - Generator compartment
Seawater inlet
Lay out of: Starboard pasageway
GENERATOR
