Lagoon 450 - Technical Room

LAGOON 450
ELECTRICITY
60

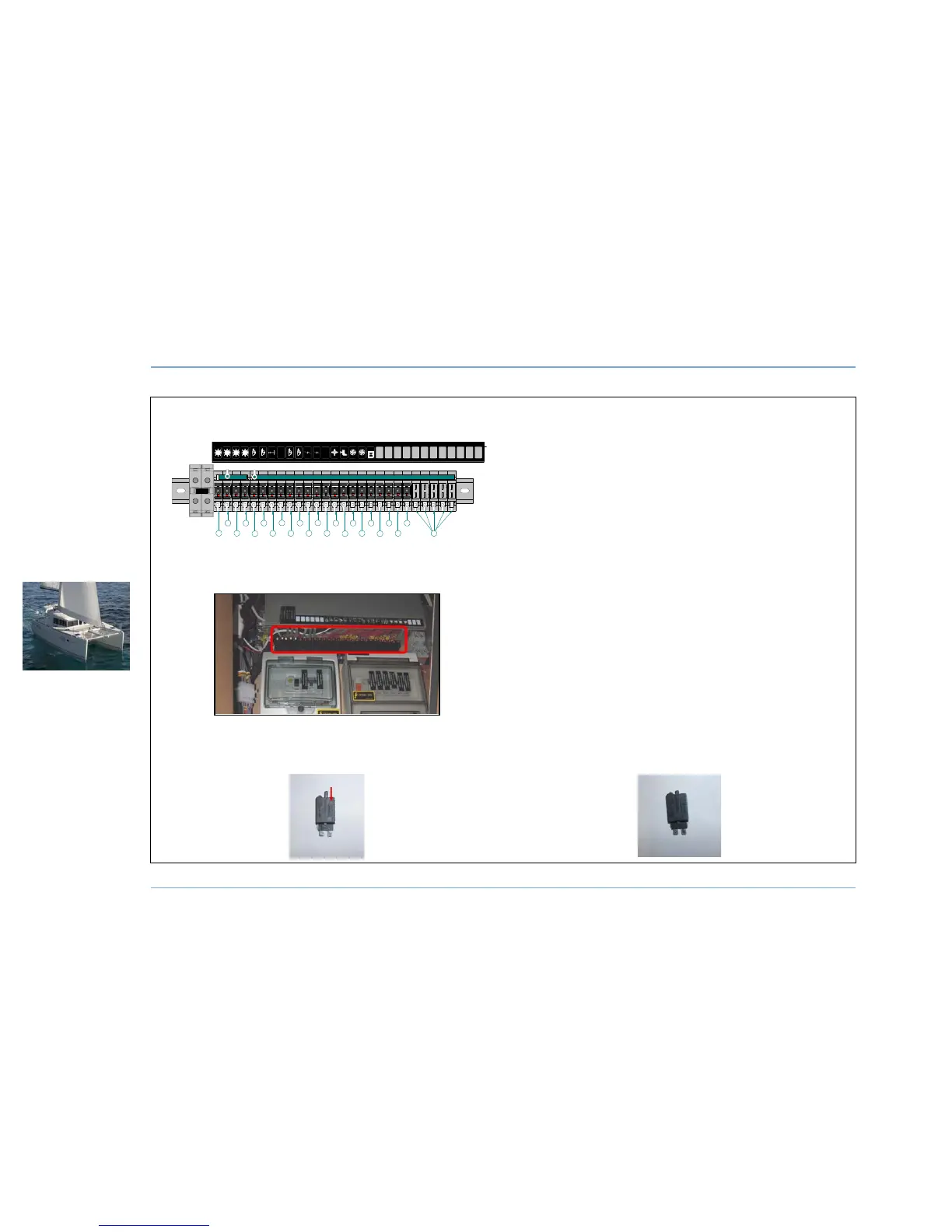

CIRCUIT BREAKERS 12V
1 - Lighting
2 - Lighting
3 - Lighting
4 - Lighting
5 - Shower pump
6 - Shower pump
7 - Windlass
8 - Hifi
9 - Bilge pump
10 - Bilge pump
11 - 12 V socket
12 - 12 V socket
13 - VHF
14 - Fridge
15 - Water unit
16 - Ventilator
17 - Ventilator
18 - Mechanism - upward/Companionway - TV
19 - Optional equipment:
20 - Optional equipment:
21 - Optional equipment:
22 - Optional equipment:
23 - Available
Circuit breakers are resettable. Press the tab manually on black back on the road circuit (see photo)
BREAKER DISARMED ARMED BREAKER






















2 2
1
VHF
1
2
HIFI 1
1
2
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
TECHNICAL ROOM
