LAGOON 450
ELECTRICITY
56
The positions are the same for the other layout version.

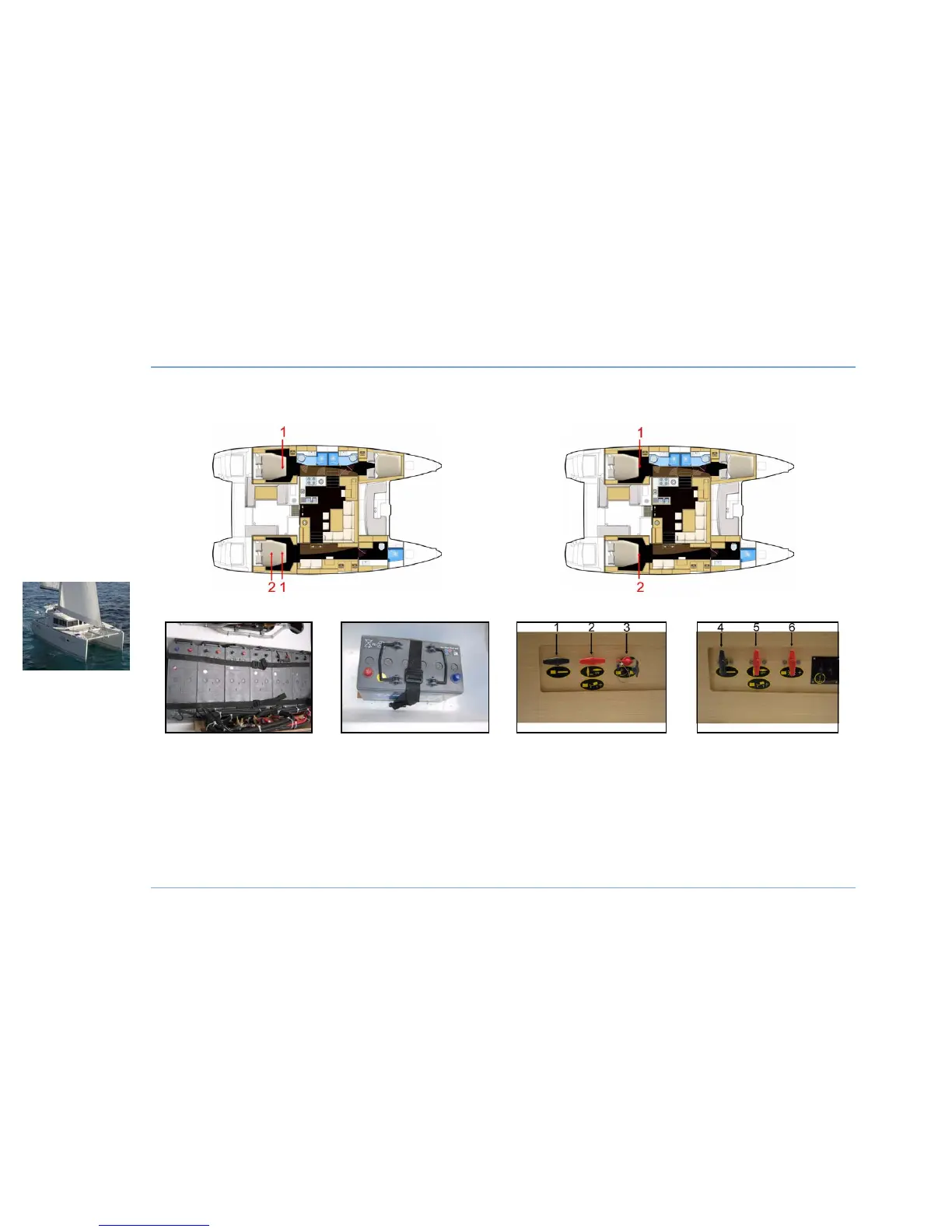

LAY OUT OF - BATTERIES LAY OUT OF - BATTERY SWITCH
Set - Service batteries
3 x 140A
Spare battery
3 x 140A
(Reference 2)
Battery stock - engine
2 x 110A
(Reference 1)
Landmark 1
Lay out of:
Port aft cabin
1. Battery switch of negative ter-
minal -
Port engine
2. Battery switch Positive -
Port engine
3. Relay coupler
Landmark 2
Lay out of:
Starboard aft cabin
4. Battery switch -
Common negative
5. Battery switch -
Positive engine - To star-
board
6. Battery switch -
Service positive
ELECTRICAL LAYOUT
