LAGOON 450
PLUMBING
72

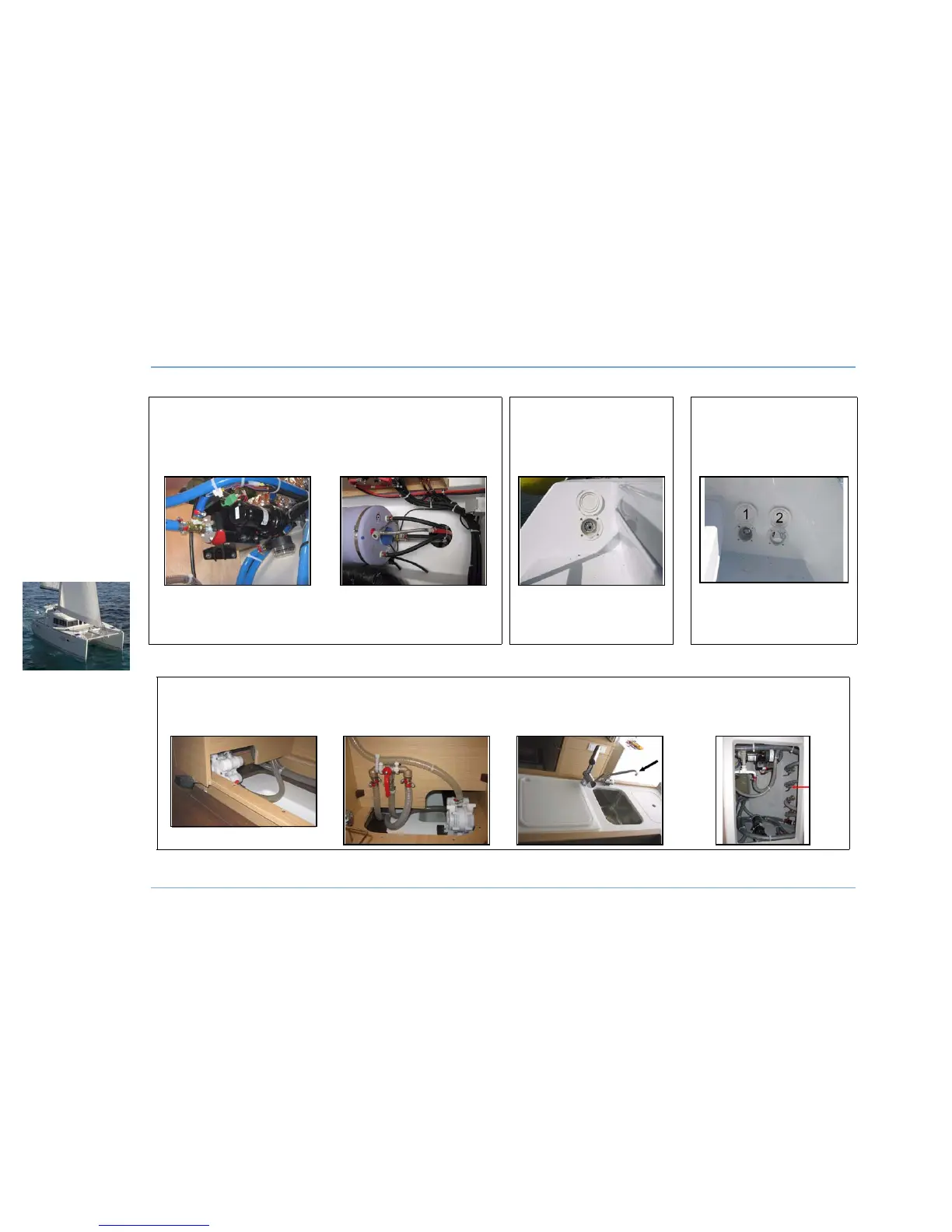

WATER PUMP 12V
LAY OUT OF:
PASSAGEWAY - TO PORT
220V 60L WATER HEATER
LAY OUT OF:
PORT AFT CABIN
SHORE POWER SOCKET -
FRESH WATER
Lay out of: Starboard transom
extension
COCKPIT SHOWER SPRAY
Operation: The water comes
directly to the group on water,
no valve.
1 - Mixer tap
2 - Cockpit shower spray
Lay out of: Starboard transom
extension
FOOT PUMP
Control
VALVE SELECTION OF WA-
TER BOARD / SEA WATER
SPOUT
SEAWATER INLET
PORT AFT CABIN
Lay out of: Port passageway
DISTRIBUTION CIRCUIT
