The rotating steady moves with the copy saddle and supports the job close to the copy
cutter.
The steady has a cutter that will turn the blank prior to the job moving into the steady.
This is a useful function as it allows you to turn none round stock.

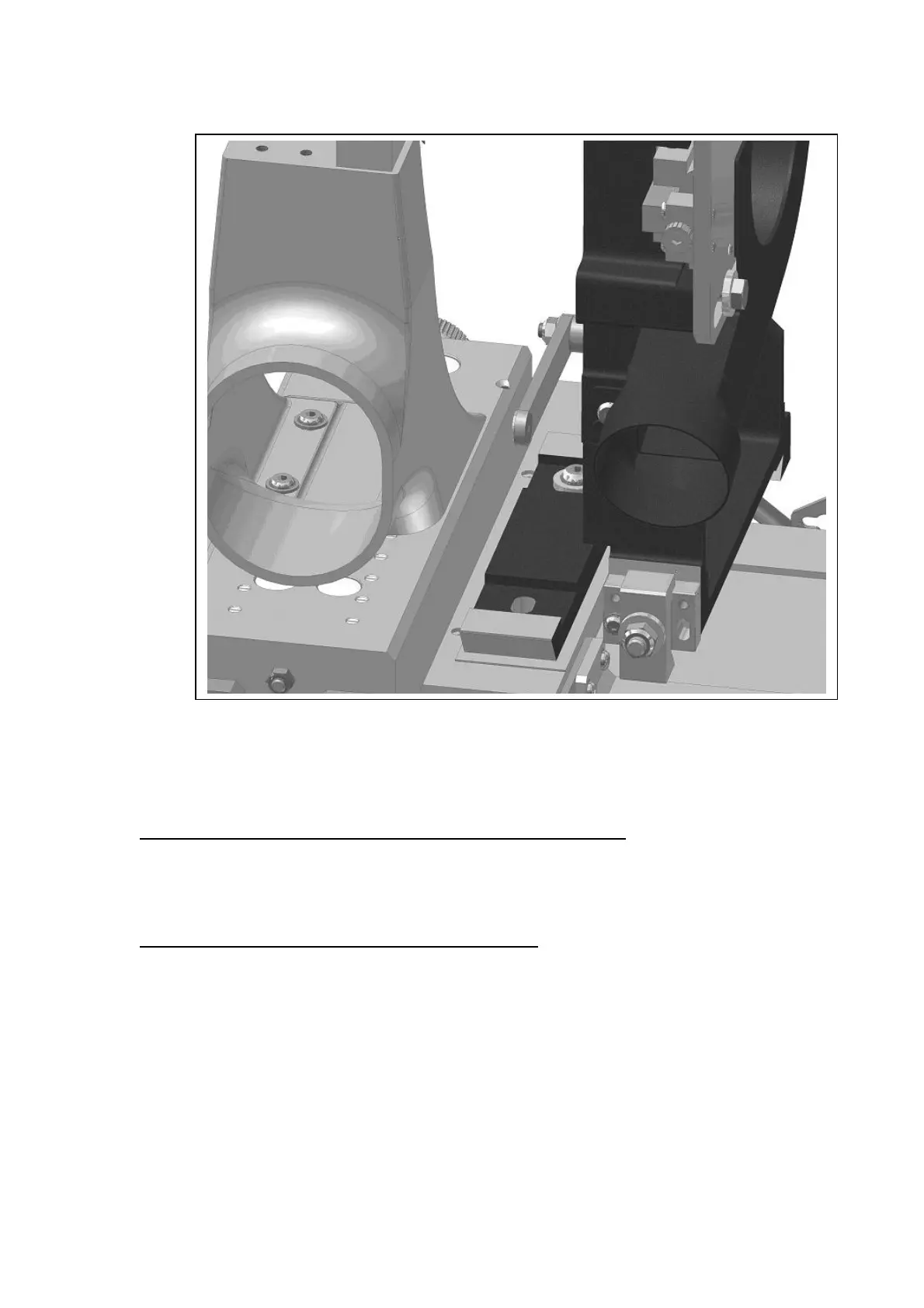

Assembling the optional rotating steady onto the copy saddle
Two additional centres are provided. Both have are extended so that they pass through
the rotating rings. Note that one is the drive centre and fits into the headstock spindle
and the other rotates and fits into the tailstock.
To assemble the rotating steady to the copy saddle
The rotating steady must be positioned accurately on the centre line of the lathe
spindle both vertically and horizontally.
1/ Fit the base to the copy saddle with the screws provided. Do not fully tighten them
until the adjustments are complete
