Operator's Manual – Lighthouse
© LAI GAMES
Page 44

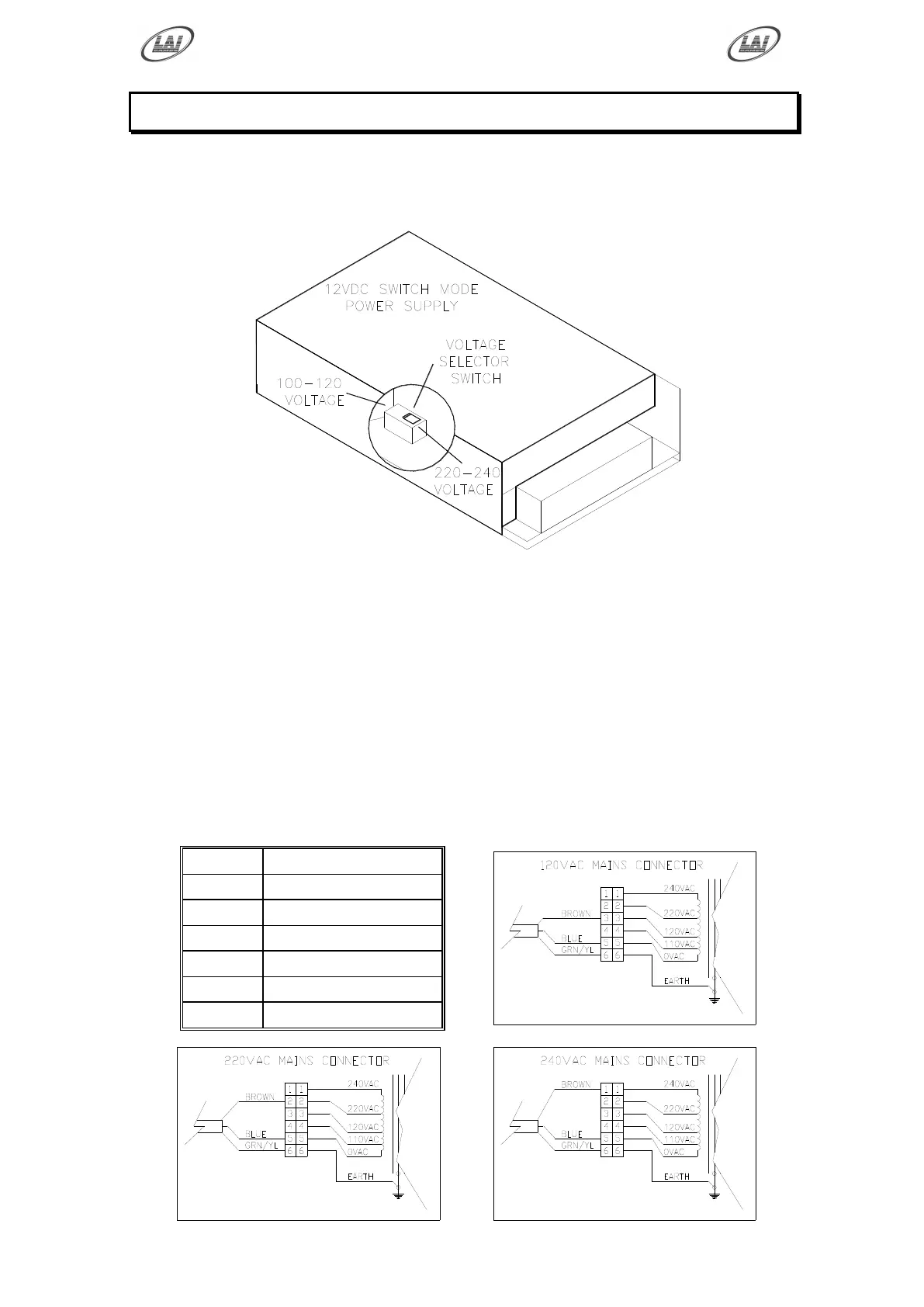

MAINS VOLTAGE ADJUSTMENT
POWER SUPPLY
The Switch Mode Power Supply has a switch to set the mains voltage range. It is
located at the rear of the game cabinet, and is accessed via the back door. Use a
thin blade screwdriver to move the selector switch to the desired mains voltage
(See Diagram Below)
FLORESCENT TUBE BALLAST AND STARTER
Locate the florescent tube ballast and starter in the back of the cabinet. If unsure
of the location of any ballasts or starters, refer to Parts location diagram on page
34 of this manual. These have to be removed and replaced with an equivalent
wattage at you local mains voltage level.
TRANSFORMER CONNECTORS
Locate the machine transformer(s) in the base of the cabinet. If unsure of the
location of the transformer(s), refer to Parts location diagram on page 34 of this
manual. Change the position of the „ACTIVE‟ or „HOT WIRE‟ input, (marked
brown on the diagram), to the position for the desired mains voltage. (See
Diagram Below)
6 WAY CONNECTOR PINOUT
