Ventilation
When the elevating roof is open, a fabric flap can be
opened for ventilation.
Opening the ventilation:
• Release the Velcro of the fabric flap (fig. 4,1) under-
neath the elevating roof. A mesh is installed behind
the fabric flap as protection from insects.
Closing the ventilation:
• Pull the fabric flap (fig. 5,2) upwards and press
down the Velcro strap (fig. 5,1).
Closing the elevating roof:
• Slowly pull down the elevating roof by the auxiliary
strap (fig. 6,1) until the elevating roof remains in this
position by itself. When doing this, make sure that
the side retraction devices (fig. 7,2) bend inwards.
• If the retraction devices are not bent inwards: open
the elevating roof again and close it more slowly.
• Pull in the canvas by the red tabs (fig. 7,1) of the
retraction devices (fig. 7,2).

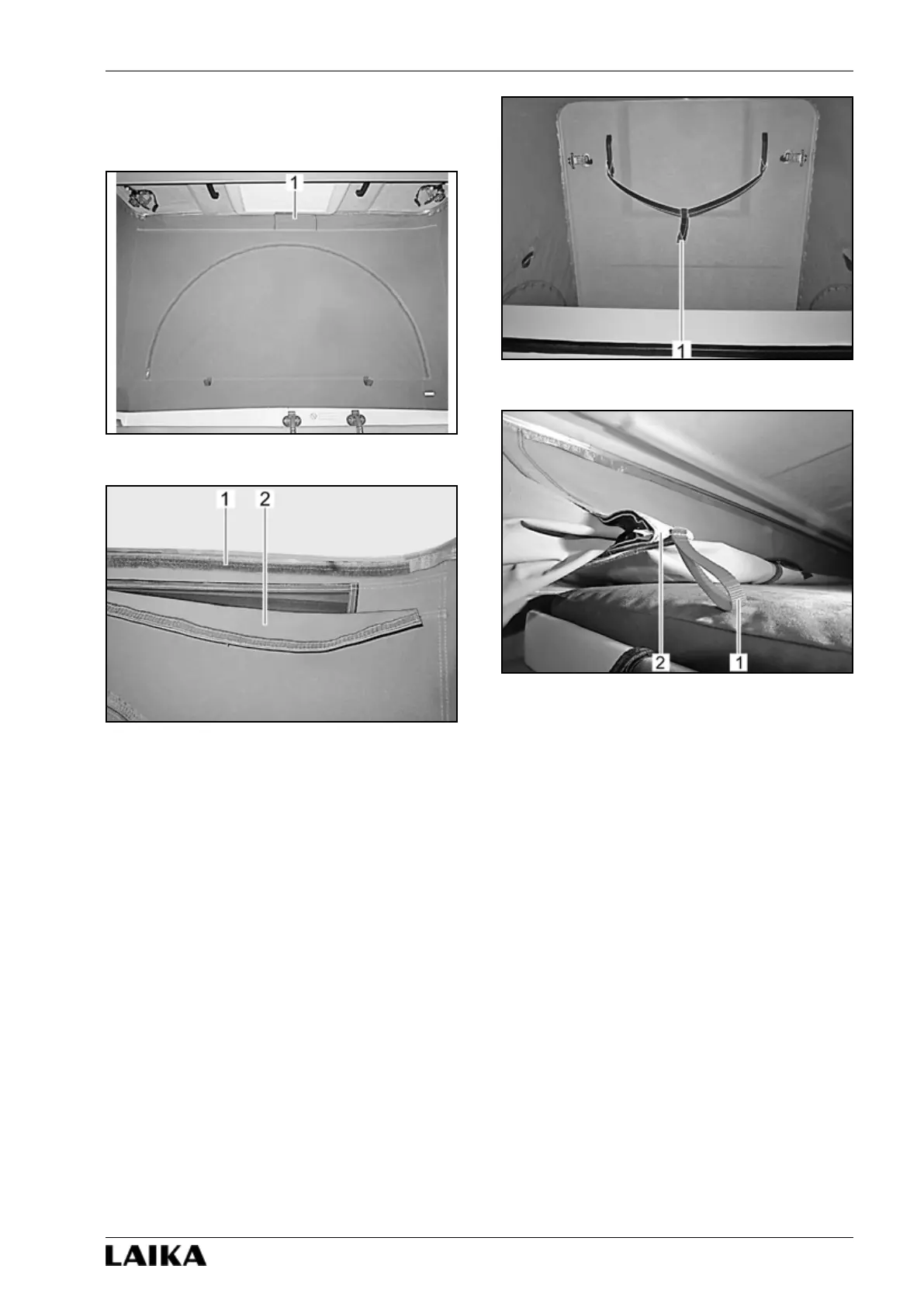

Fig. 4 - Ventilation (closed)
Fig. 5 - Ventilation (open)
Fig. 6 - Auxiliary strap (elevating roof)
Fig. 7 - Retraction device (elevating roof)
