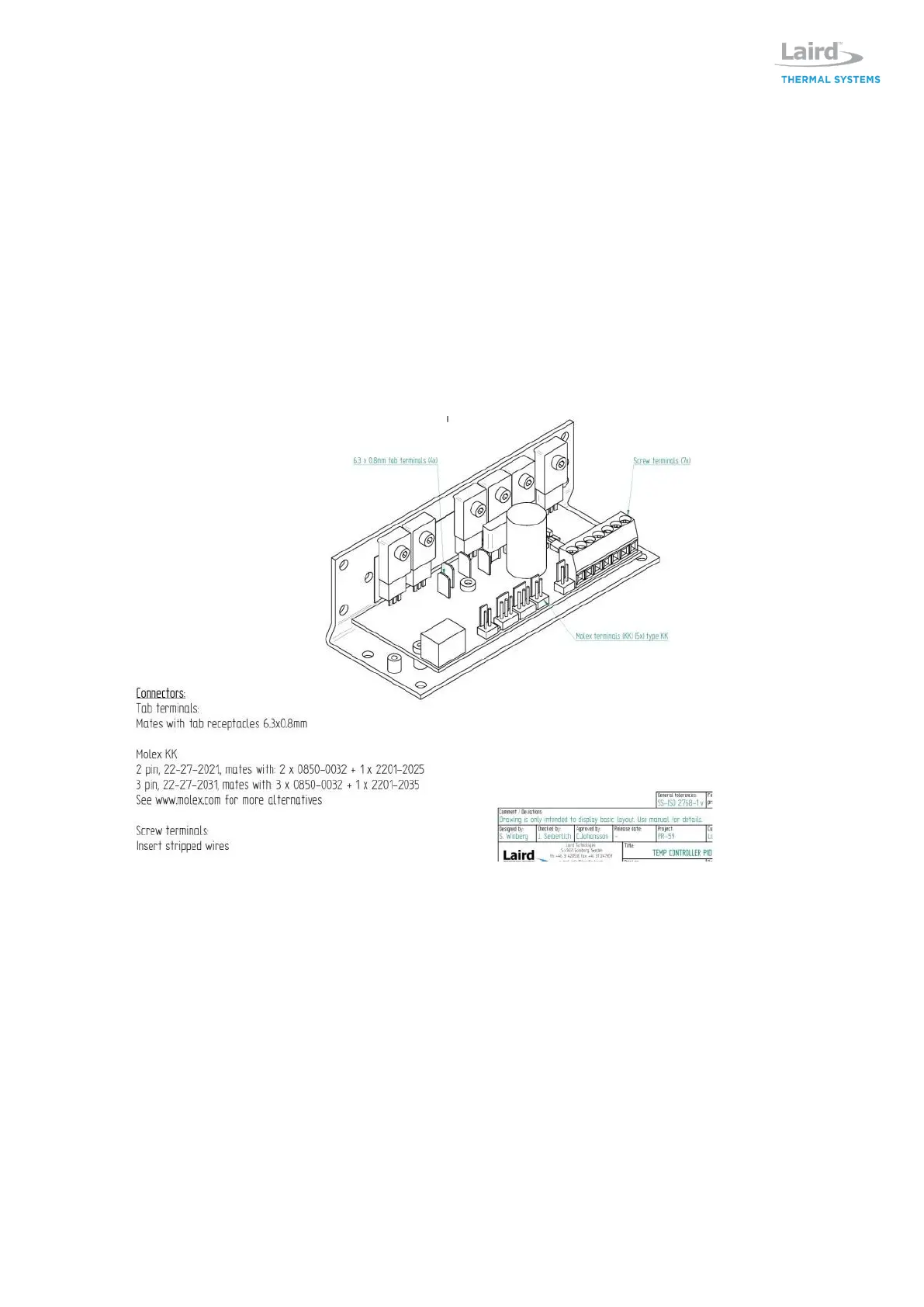

The applied voltage should not exceed the voltage rating of the TEM(s)/TEA. Also note that the
solder pads on the board may have to be shorted depending on the applied voltage, see picture
below.
If TC-WIRE3 is used for the T1 sensor, interconnect the red and brown wires at the sensor
connection end.
Connectors to use:
• VDC in and TEM out: Tab receptacles 6.3x0.8mm
• Sensor inputs and alarm output and external potentiometer:
o 2 pin: 2201-2025 + 2pcs 0850-0032
o 3 pin: 2201-2035+ 3pcs 0850-0032
• Fan and communication: stripped wires, preferable with an end ferrule
