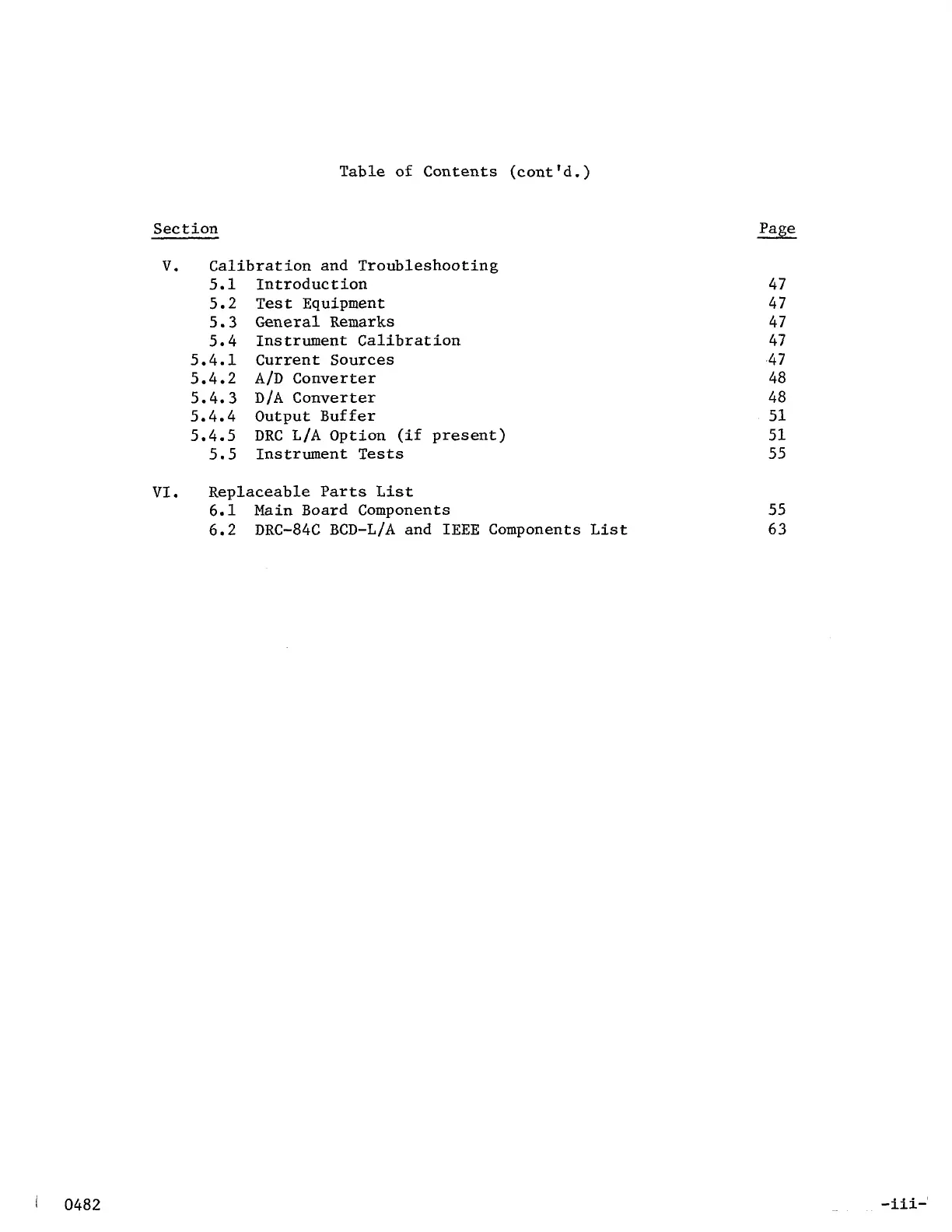

Lakeshore DRC-84C - Page 3

Table of Contents (cont'd.)
Section
V. Calibration and Troubleshooting
5.1 Introduction
5.2
Test Equipment
5.3 General Remarks
5.4 Instrument Calibration
5.4.1 Current Sources
5.4.2
A/D Converter
5.4.3
D/A Converter
5.4.4 Output Buffer
5.4.5
DRC L/A Option (if present)
5.5 Instrument Tests
VI. Replaceable Parts List
6.1 Main Board Components
6.2 DRC-84C
BCD-L/A and IEEE Components List
Page
47
47
47
47
47
48
48
51
51
55
55
63
-iii-
