Lakeshore DRC-84C - Table

Table 5.1
Decimal
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Hexadecimal
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Complimentary
Hexadecimal
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
0

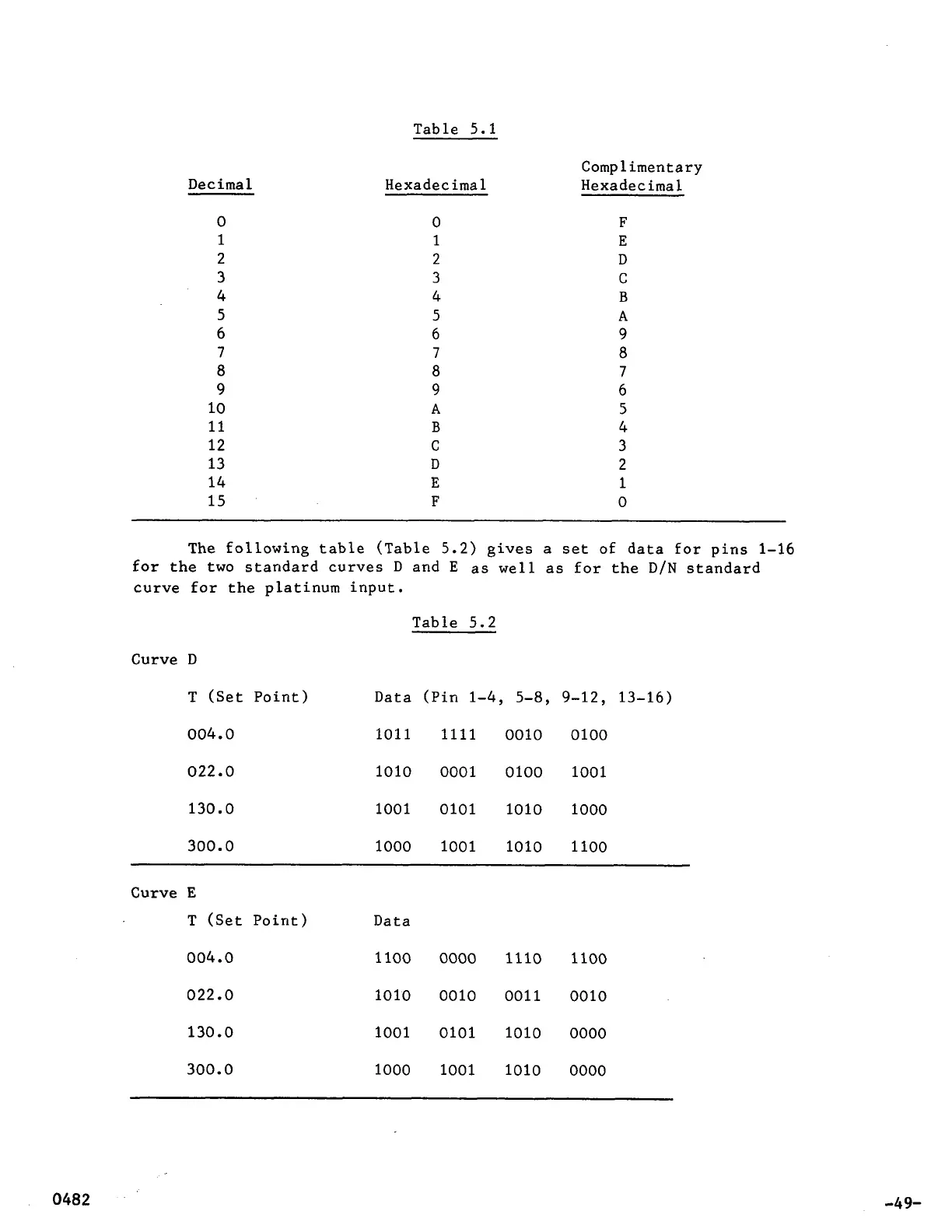

The following table (Table 5.2) gives a set of data for pins 1-16
for the two standard curves D and E as well as for the DIN standard
curve for the platinum input.
Table
5.2
Curve D
T (Set Point) Data (Pin 1-4, 5-8, 9-12, 13-16)
004.0 1011 1111 0010 0100
022.0 1010 0001 0100 1001
130.0 1001 0101 1010 1000
300.0 1000 1001 1010 1100
Curve E
T (Set Point) Data
004.0
1100 0000 1110 1100
022.0
1010 0010 0011 0010
130.0 1001 0101 1010 0000
300.0 1000 1001 1010 0000
