PAGE 8
ASSEMBLY STAGE #4
Attach Seat Pad & (Optional) Spacers
Assembly Hardware Required:
#21 Hex Head Bolts Qty. 4 #28 Flat Washer Qt
. 4
Assembly Description:

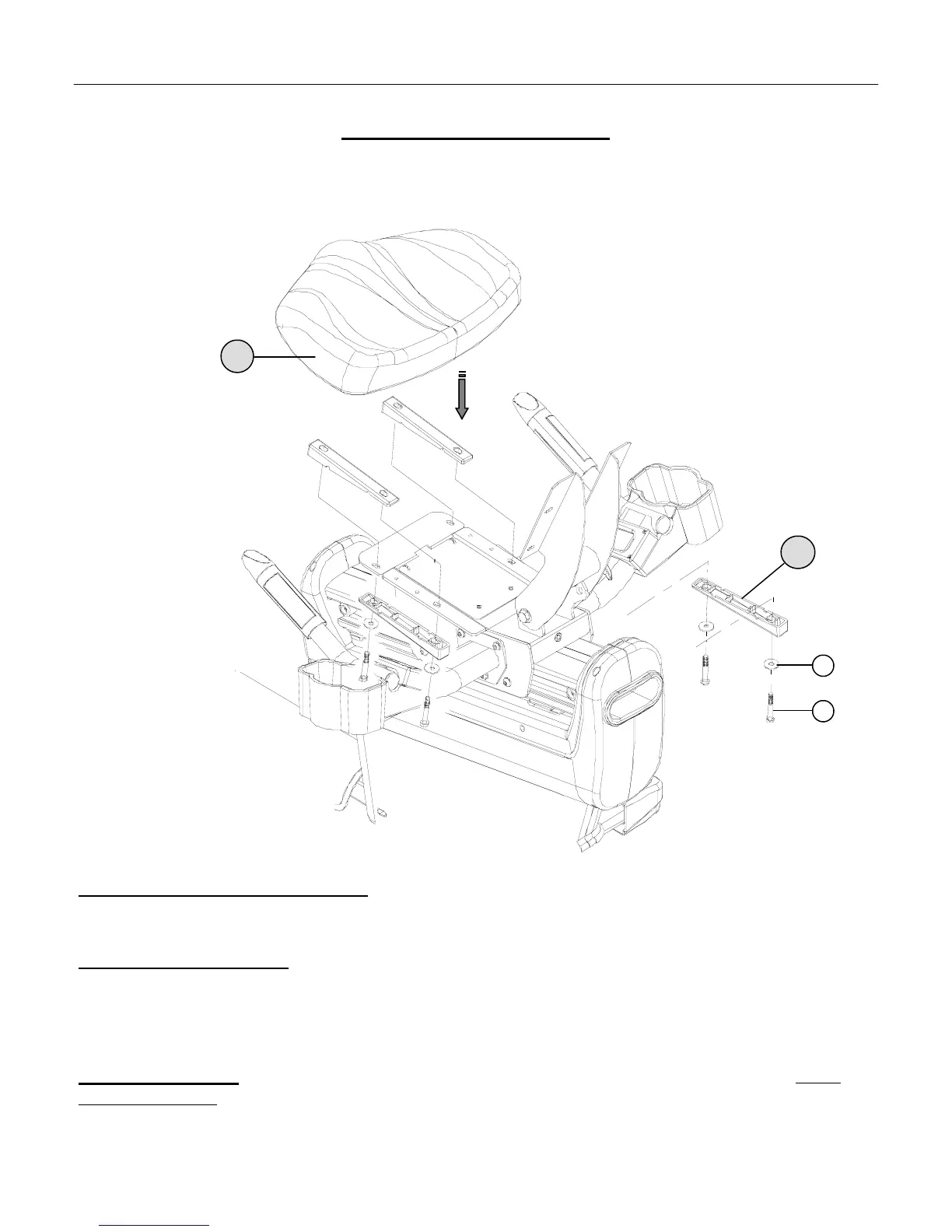

A) Secure the Seat Pad (#12) and the (optional) 4-Seat Spacers (#20) to the Seat Slider Assembly using 4-Hex
Head Bolts (#21) and 4-Flat Washers (#28).
Seat Spacer Placement: The 4–Seat Spacers (#20) can be used to change the comfort angle of the seat pad. All the
spacers must be used; they can be oriented as shown or rotated 180 degrees to change the angle of the seat pad.
♦ Assembly Stage #4 completed
ASSEMBLY INSTRUCTION
20
21
28
12
To Next Page
