5 Commissioning
Mounting position
DANGER!
Due to the pilot burner falling due to vibrations for overhead assembly with sliding
flange!
Overhead assembly is only permitted with welded flange!

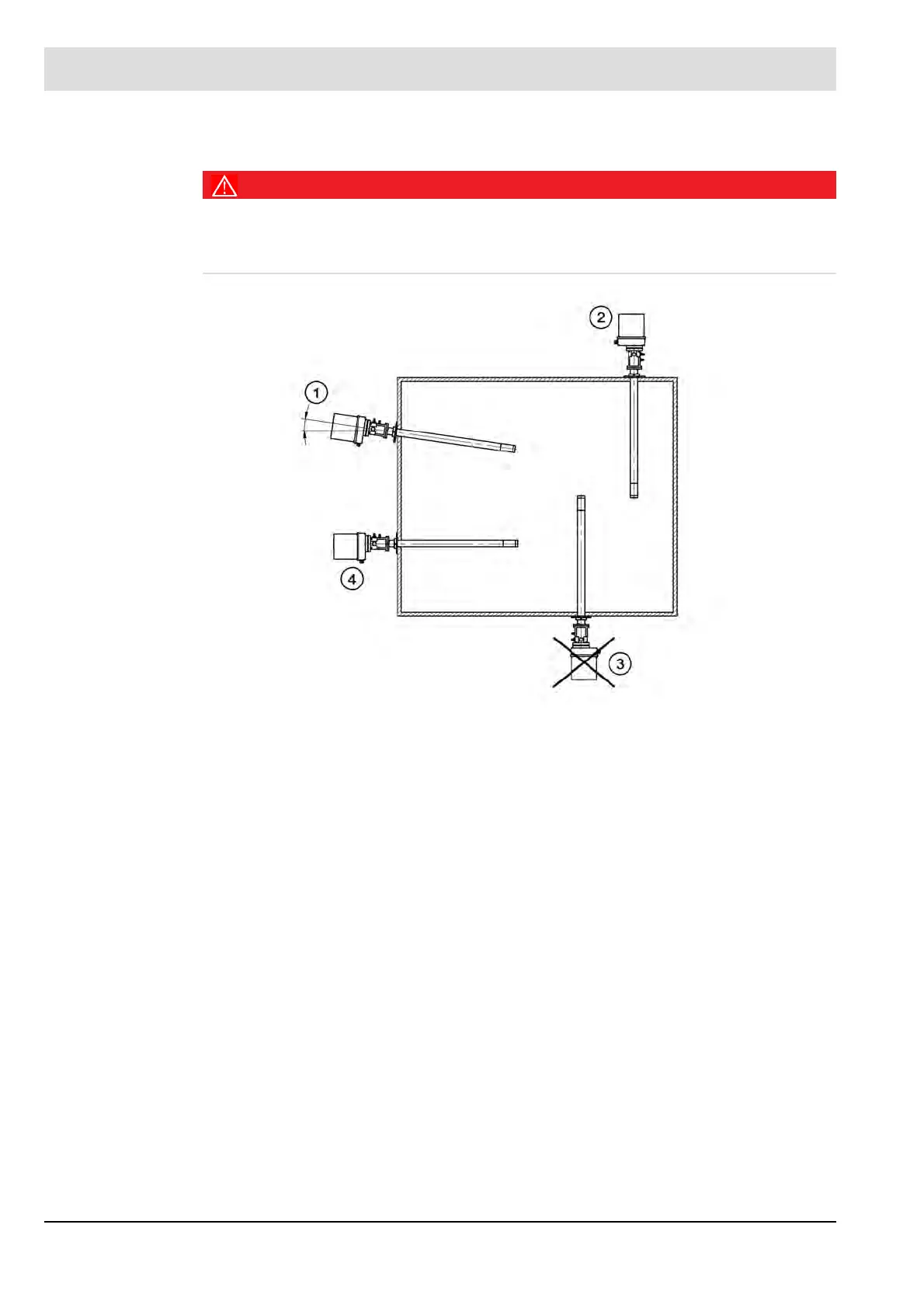

Fig. 5-1 Possible installation situations
Plan supply lines
Control devices are to be provided for the gas and air supply.
1 Mounting angle in relation to the hori-
zontal 0…90°. A corresponding adapter
for angled assembly must be present
on-site.
3 Not permissible with sliding flange.
Overhead assembly is permissible
solely with a welded flange!
2 Upright or vertical mounting position 4 Level or horizontal mounting position
