32
5 Commissioning
The following materials are required for the installation.

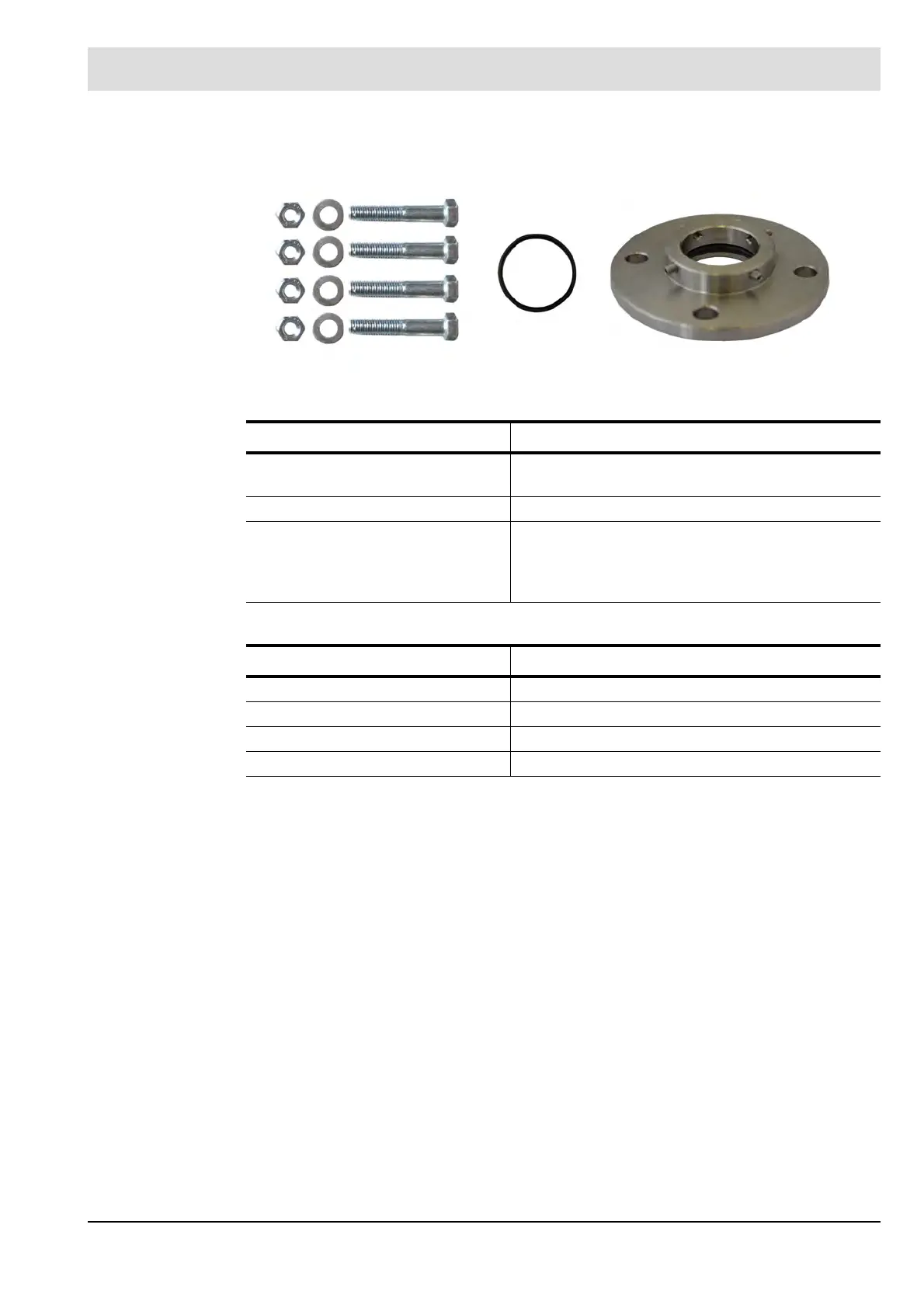

Fig. 5-2 Feed-through flange with seal and screws
The following material is required for the electrical connection.
Specific cable specifications, see chapter 3.6 Technical Data
Designation Specification
1 Feed-through flange Appropriate to the pilot burner, with radially
arranged grub screws for securing the outer tube.
1 Seal
4 x M12 screws (GFI48/GFI70)
4 x M16 screws (GFI89)
4 washers
4 screw nuts
Designation Specification
Terminal lug Ring terminal
Ground cable
Ignition cable
Ionisation cable
