4.1 Designs and Accessories of the KS1D Combination Probe
The KS1D combination probe permits a simultaneous measurement
of the O
2
concentration and combustible, oxidising gas components (CO/H
2
) displayed as
CO equivalent (CO
e
), in the flue gases from combustion systems in the superstoichiometric area
(>1) in situ (directly in the flue gas).

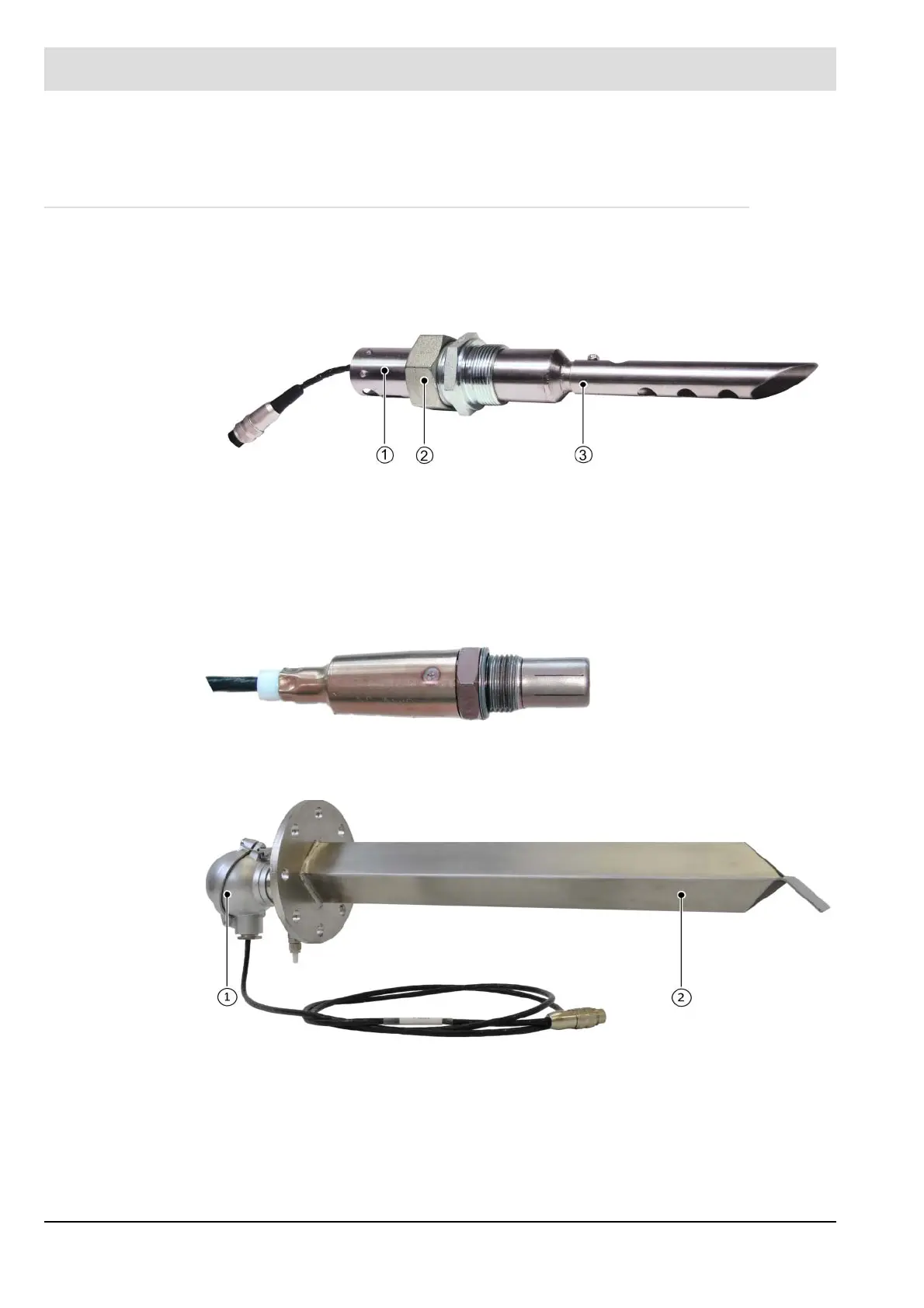

Fig. 4-1 Standard design of the KS1D combination probe
Fig. 4-2 KS1D combination probe without housing
Alternatively:
Fig. 4-3 KS1D combination probe in HT design
1 KS1D combination probe in standard housing
Standard cable length 2 m, PTFE, with connecting plug
2 Probe installation fitting (PIF)
3 Measuring gas extraction device (GED)
1 KS1D combination probe in high-temperature housing
Standard cable length 2 m, PTFE, with connecting plug
2 Flue gas bypass tube
