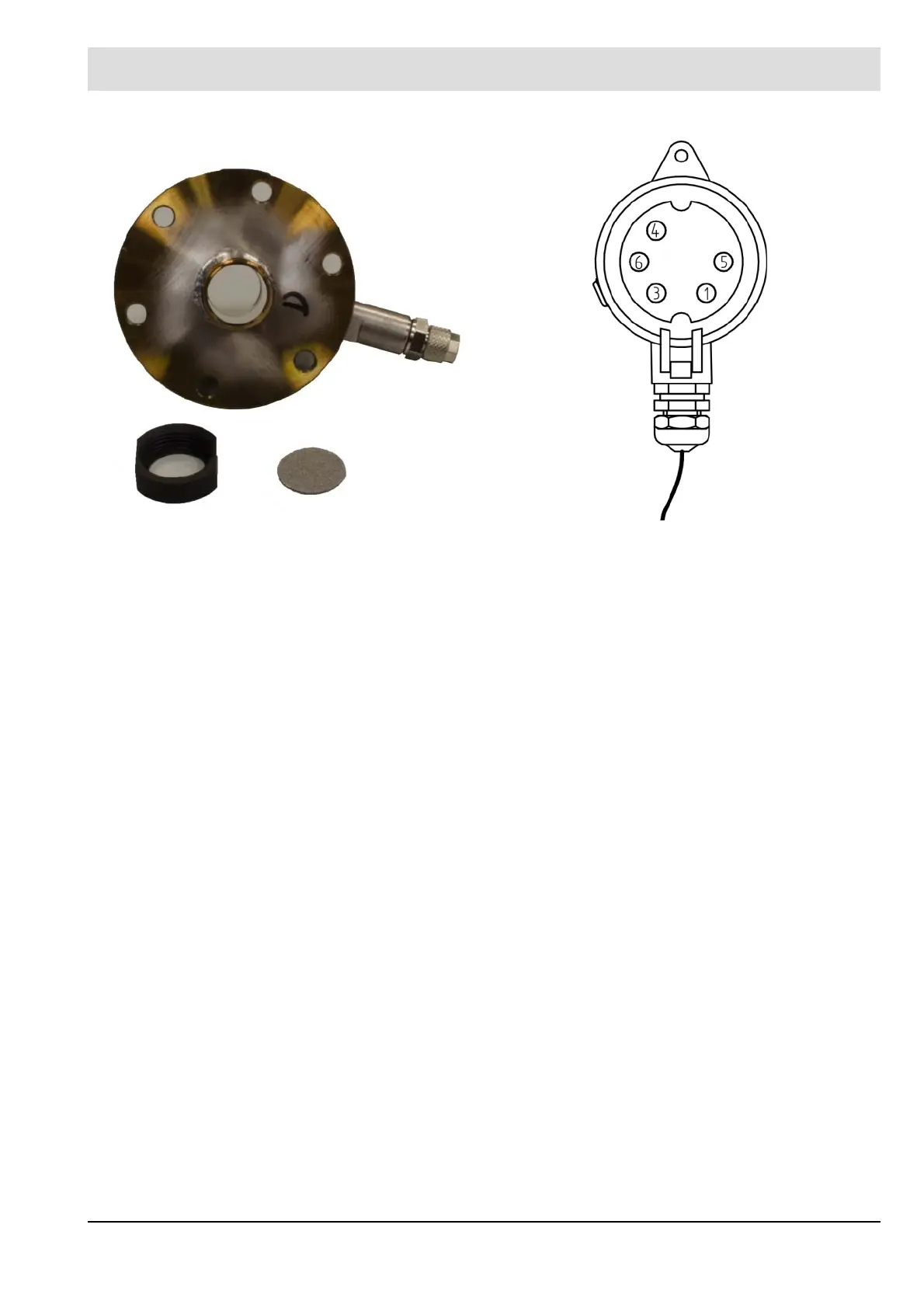

Fig. 7-7 Sensor holder with filter cap and filter
Fig. 7-8 Terminal socket KS1D-HT
1 (-) probe signal O
2
(red)
3 (-) probe signal CO (grey)
4 (+) probe signal CO/O
2
(black)
5 probe heater (white)
6 probe heater (white)
