75
10
Options
1

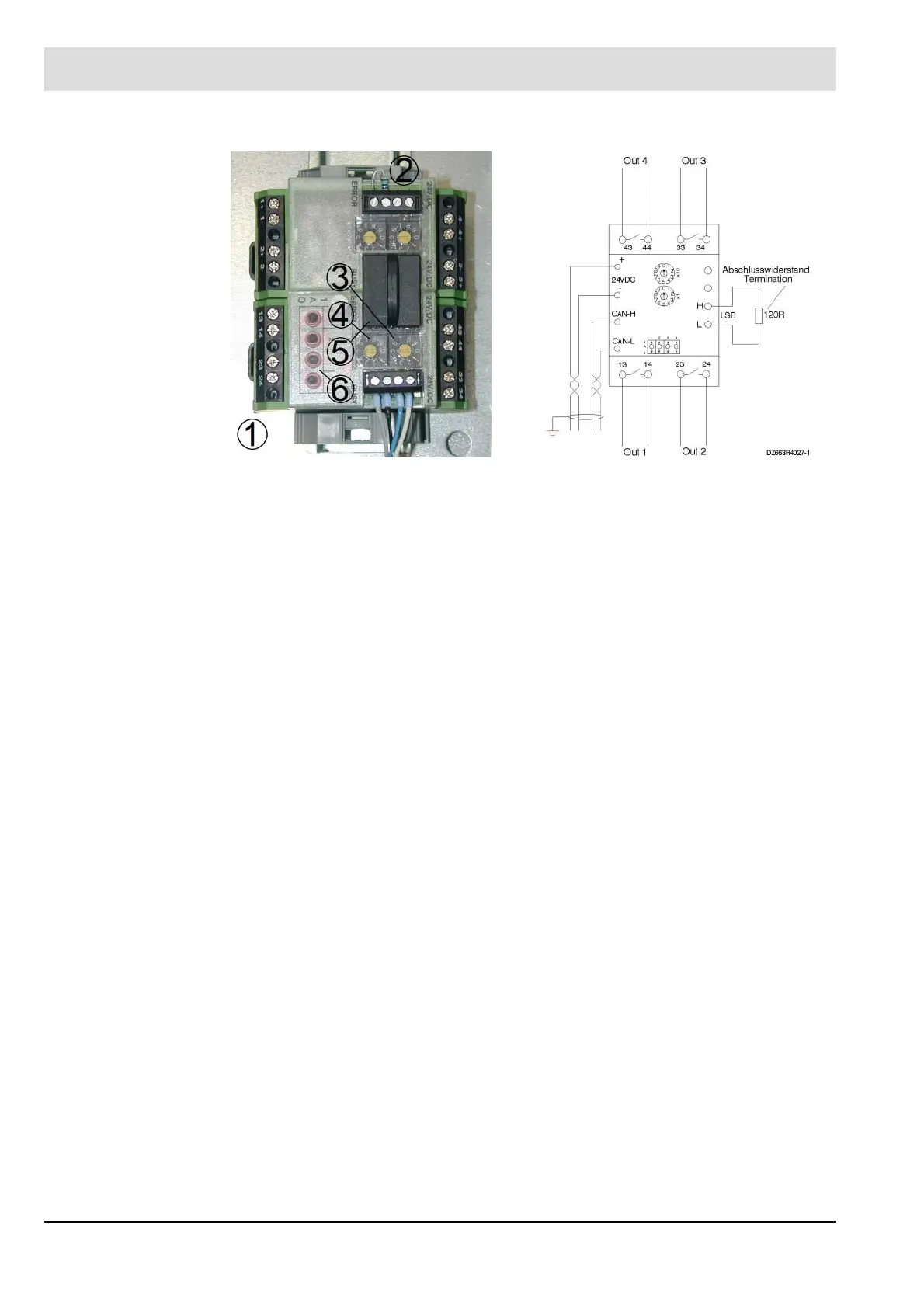

Digital output module
2
LSB terminal resistance 120
3
Rotary switch for setting the
tens LSB address
4
Rotary switch for setting the ones
LSB address
5
Jumper plug
6
Manual activation
T
erminal assignment:
13/14
23/24
33/34
43/44
24 VDC
CAN H/L
Relay output 1
Relay output 2
Relay output 3
Relay output 4
V
oltage supply for L
T3-F T
ermi-
nals 77-/78+
LAMTEC SYSTEM BUS for L
T3-
F T
erminals 74 H/75 L
75
77
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Information about the Manual
7
Information on Using this Operating Manual
7
2 General Safety Instructions
8
Classification of the Safety Instructions and Warnings
8
Proper Use - Conditions of Use
9
Permissible Users
10
Safety Equipment/Safety Measures
11
3 Product Description
13
Applications
13
Declaration of Conformity
14
4 Mounting and Functions
17
Connection Extension
17
5 Display and Operational Controls
18
Operation
19
Menu Structure
19
Password Entry Menu Structure
19
Information Menu Structure
20
Calibration Menu Structure
20
Settings Menu Structure
21
Status Line
22
Main Menu
23
Main Menu - Password Entry
24
Main Menu - Information
25
Main Menu - Calibration
26
Main Menu - Settings
27
6 Commissioning
29
Operating Conditions
29
Installation
30
Measurement Start-Up
30
Enter the Password for the Access Level
31
Activate/Deactivate Maintenance Mode
32
Response of the Internal Resistance Regulation
34
Premature Cold Start Termination
35
Reading the Measured Values
36
Calibrating the Probe
38
Offset Calibration
39
Calibrating the O 2 Electrode
41
Perform a Calibration of the CO/H Electrode
42
Settings
44
Maintenance Mode
44
Filter Time
44
Analogue Outputs
45
Replacing a Probe
45
Display
45
Limit Values
46
Test Certificate
48
Probe Certificate
49
7 Maintenance
50
Checking/Calibrating the KS1D Combination Probe
50
Checking/Calibrating the Air Voltage (Offset)
50
Checking/Calibrating the O 2 Electrode
50
Checking/Calibrating the CO/H 2 Electrode
50
Checking/Calibrating with Test Gas
51
Checking/Calibrating with Reference Measurement
55
Simple Function Test of the CO/H 2 Electrode
55
Wear-And-Tear Parts of the KS1D Combination Probe
56
Replacing a Probe
57
Sensor Replacement KS1D-HT
59
8 Correcting Faults
62
Faults and Warnings
62
Faults
63
Warnings
68
Call of the Fault History
70
9 Decommissioning
71
Protection against Emissions from Gas Carrying Channels
71
10 Options
72
Analogue Outputs Via LSB Module Current, Alternative Voltage, LSB Address 19
72
Functional Description
72
Factory Setting of Analogue Outputs Via LSB Module
73
Conversion of the Output Range Via the User Interface
74
Digital Outputs Via LSB Module, LSB Address 03 and 51
75
Functional Description
75
Factory Setting of the Digital Outputs
77
Diagnosis of the Digital Outputs
77
Digital Inputs Via the LSB Module, LSB Address 11 and 55
78
Functional Description
78
Factory Settings of the Digital Inputs
79
Diagnosis of the Digital Inputs
79
LSB Module for Calculating Combustion Efficiency
80
Functional Description
80
External Connection
82
Commissioning of the Additional Modules
84
11 Storage
85
Storage Conditions
85
12 Disposal Notes
86
Environmental Protection, Waste Disposal
86
13 Appendix
87
LT3-F Spare Parts
87
Spare Parts Combination Probe KS1D in Housing
87
Spare Parts Combination Probe KS1D Without Housing
87
Spare Parts KS1D-HT Combination Probe
88
Wet/Dry Measurement Deviations, Conversion Table
89
