5 Display and Operational Controls
5 Display and Operational Controls
To display and operate LT3-F, the user interface is integrated into the front door of LT3-F (in-
cluded in the standard scope of supply).
Functions:
• Reading of the O
2
and CO
e
measured values
• Password entry
• Information regarding the probe, fuel, warnings, faults, software version,
CRC, and serial number
• Calibration of measurement
• Settings  maintenance, filter time, analogue output, probe replacement, display,
limit values, and digital outputs

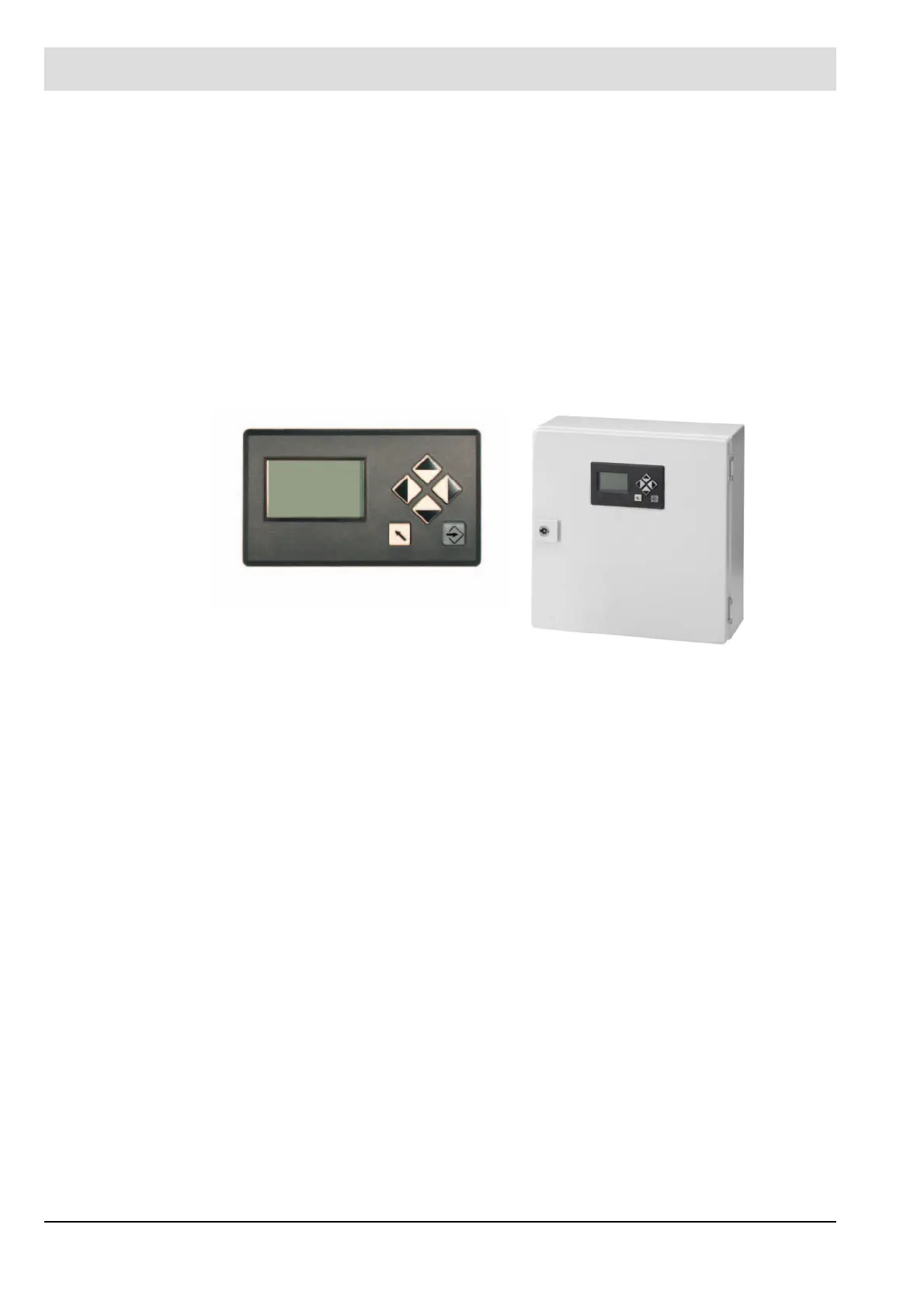

Fig. 5-1 LT3-F user interface
Fig. 5-2 Housing with user interface
