PHW SERIES PRESSURE WASHER
OPERATOR’S MANUAL
25
LANDA PHW • 9/02
7
2-1100, 3-1100 4-2000, 4-3000
11
12
14
4
3
2
1
13
10
6
5
8
7
1
3
4
1
13
10
12
11
14
6
5
8
9
2

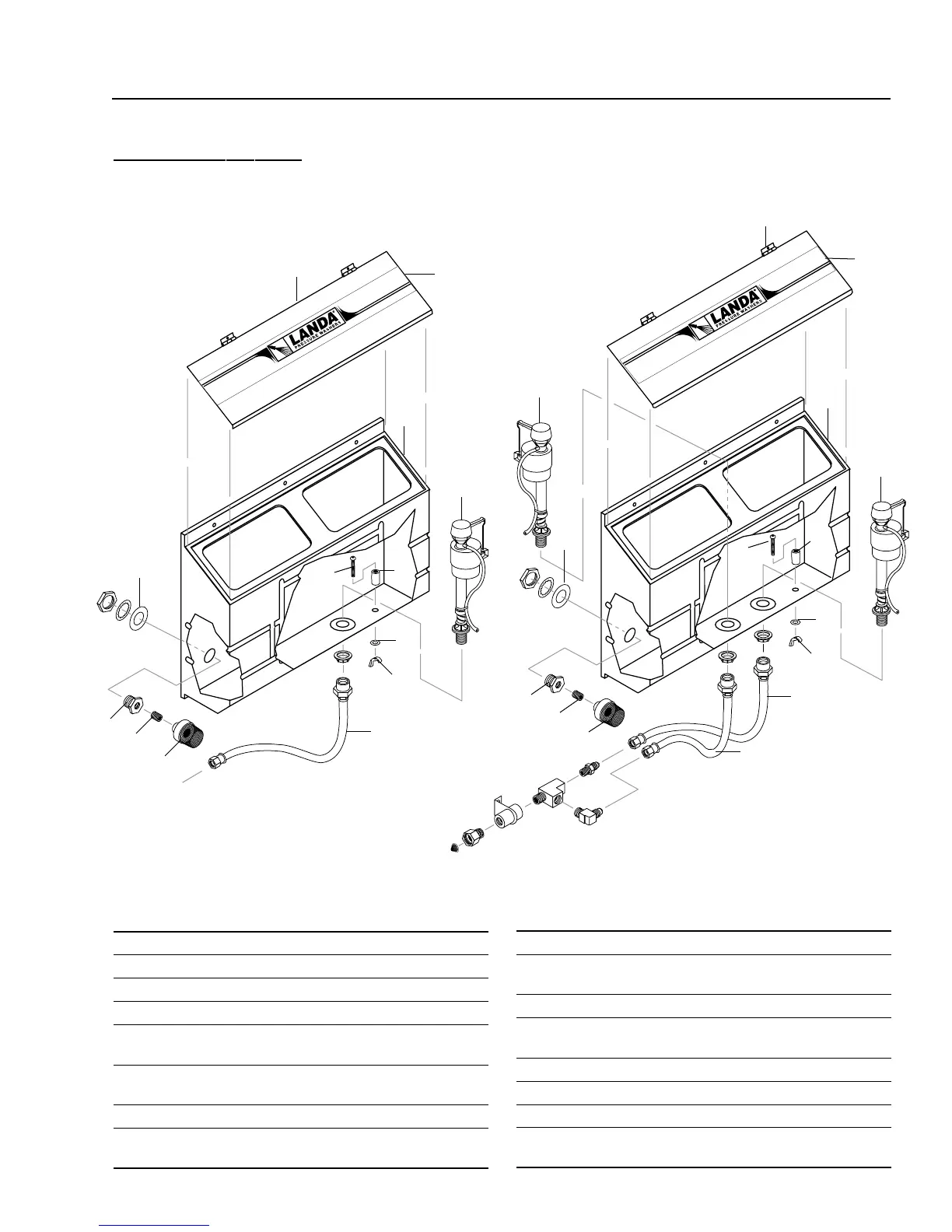

PHW FLOAT TANK
ALL MODELS
ITEM PART NO. DESCRIPTION QTY
1 2-3014 Valve, Float, Fluid Master, 400A 2
2 2-01164 Tank, Plastic, Universal Float 1
3 95-07121207 Lid & Hinges, Plastic Float 1
4 10-99079 Label, Hot 1
5 2-10062 Modified Close Nipple, 1/2" NPT
(3-1100) 1
2-1053 Nipple, 1/2" JIC x 1/2" Pipe
(4-2000, 4-3000) 1
6 2-1906 Strainer, Basket, 1/2" 1
7 90-4017 Washer, 1-3/16" x 2-1/4"
STL RBR 1
ITEM PART NO. DESCRIPTION QTY
8 2-11041 Connector, Anchor, 1/2" 1
9 4-02100013 Inlet Hose, 13" Supply Water
(4-2000, 4-3000, 5-3000) 1
10 2-0151 Plug Float Tank Assy. (#10-13) 1
90-4030 Screw, 5/16"-18 x 1-1/2" SS,
Button 1
11 90-4031 Nut, 5/16"-18, Wing, SS 1
12 90-4032 Washer, 5/16", SS 1
13 4-02140000 Tubing, 5/16" x 9/16", Rubber 1
14 4-02100009 Inlet Hose, 11" Supply Water
(All Models) 1
