24 PHW SERIES PRESSURE WASHER OPERATOR’S MANUAL
LANDA PHW • 9/02

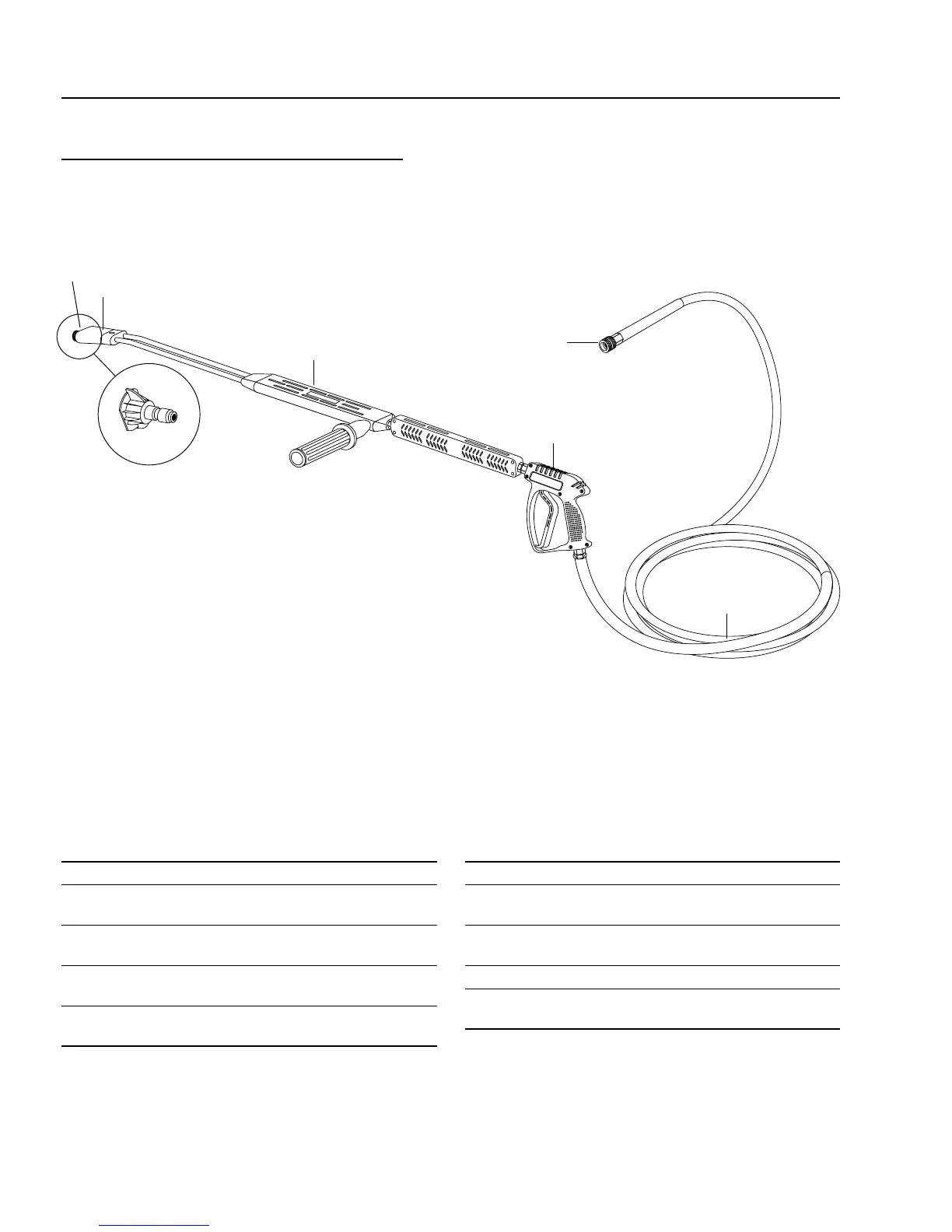

HOSE & SPRAY GUN ASSEMBLY
ALL MODELS
1
2
4
5
6
3
ITEM PART NO. DESCRIPTION QTY
1 2-2001 Coupler, 1/4", Male 1
2-0119 ▲ O-Ring, Sm Coupler,
High Heat, 1/4" 1
2 4-011143A Wand, SS, V.P. Wand, (AL 344)
w/ Coupler 1
4-0111391 Wand Only, SS.V.P. Wand,
(AL 344) 1
83-SSVPKIT Repair Kit, SS Seat
(AL 334, 344) 1
ITEM PART NO. DESCRIPTION QTY
3 4-06540 ▲ Nozzle Only, 1/8" 1
4 4-01212 Spray Gun, Shut-Off,
Series 2000 1
5 4-02043450C Hose Only, 50' x 3/8", 100R2
w/ Coupler 1
6 2-2002 Coupler, 3/8" Female 1
2-0121 ▲ O-Ring, LG, Coupler,
High Heat, 3/8" 1
▲ Not Shown
Pressure
Nozzle
