Configuration of the UtiliNet Module
The S4e UtiliNet meter is programmed using 1132Prog/1132Com. The UtiliNet module is factory programmed with
a LAN Address.
Meter Setup
The Utilinet module relies on certain inputs from relay 4 for its operation. As a result there are a few minimum
programming requirements for the S4 (using 1132Prog). The load control relay activates the relay upon power
up. This relay triggers the UtiliNet module to power up. If the meter is not programmed as shown below the
UtiliNet module will not operate as expected. A special tool, Utilinet Radio Tool, was developed to query and
reboot the UtiliNet module.
Relays:

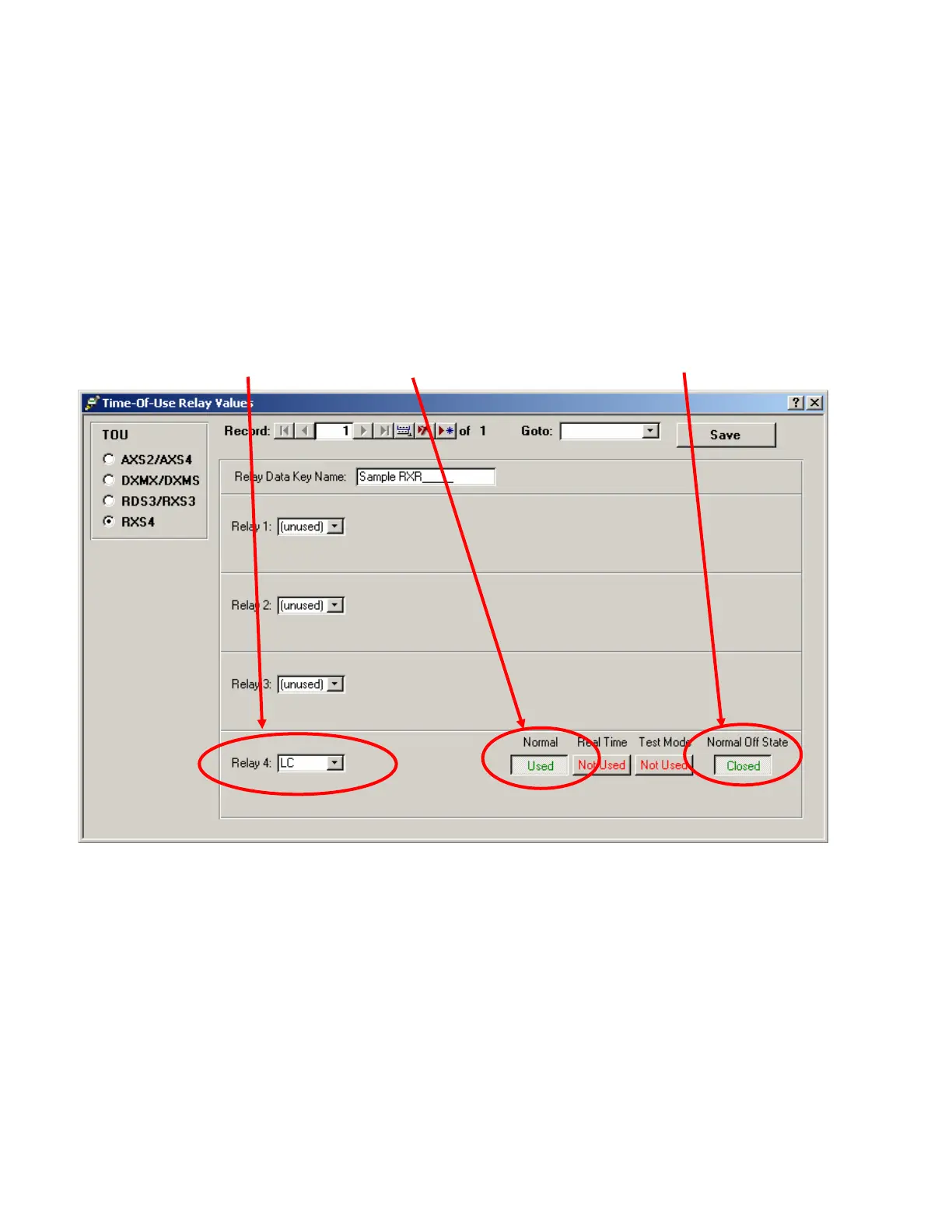

Set Relay 4 to Load Control (“LC”), “Used” in Normal Mode and Normal Off State to “Closed”.
Bulletin Number: 20031201 Rev A S4e-UtiliNet User Manual Page 7 of 13
