Controls
Pos. Designation Function
A Piezo igniter Ignite gas on burner (press).
B Flame regulator Fill burner with gas to ignite (keep depressed and
turn to "large flame" setting).
After ignition adjust the heat input for the left burner
(turn).
G1 Pressure reducer Reduce gas pressure.

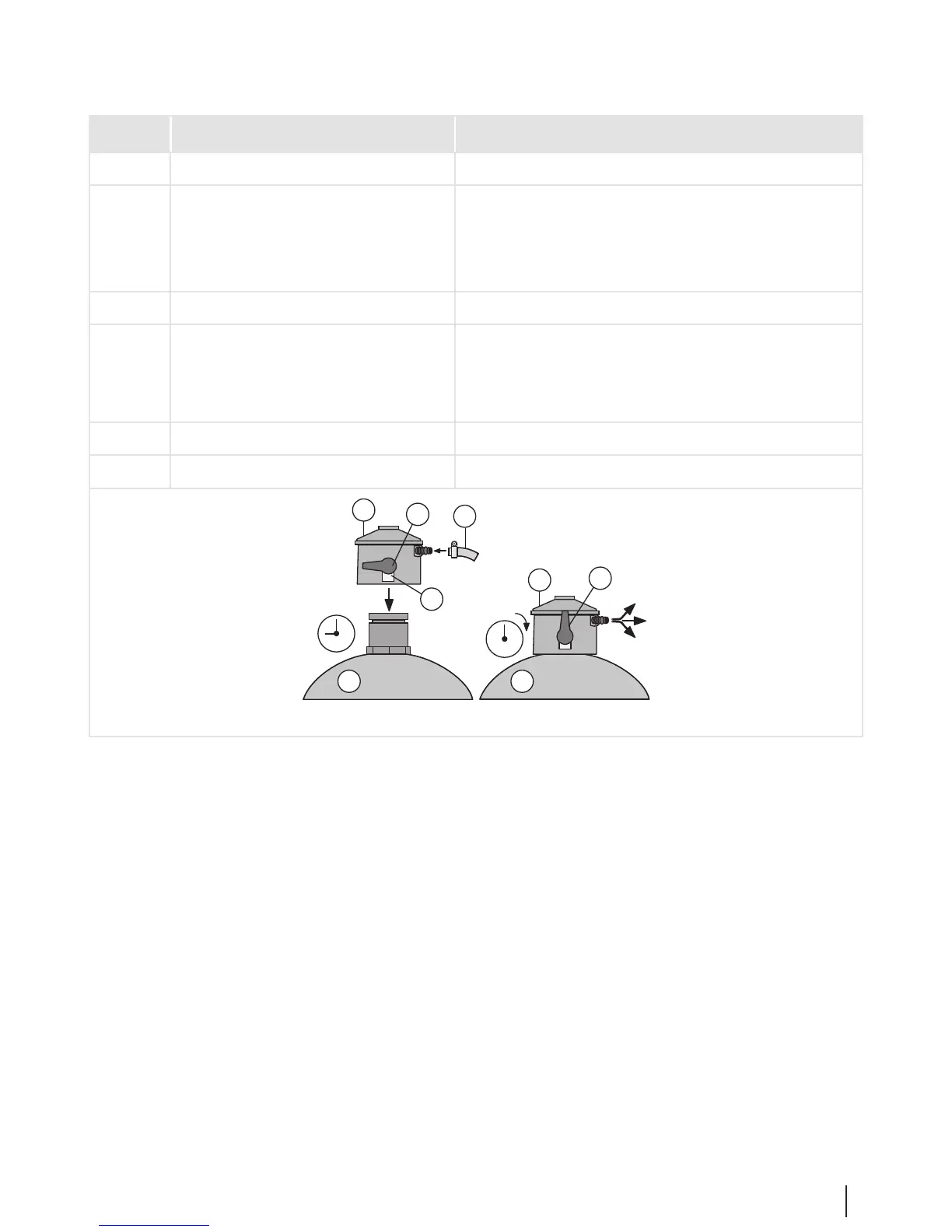

G2 control button with safety catch Cut-off safety device with 2 settings:
9 o'clock setting: gas off / shut off gas cylinder
12 o'clock setting: Gas is on.
G3 gas cylinder with bottle valve Fuel container
G4 Gas hose with hose clip Directs gas to burner.
G5
12
G1
G3
9
G2
G1
G2
G4 G4
