Replacement Parts
Part Description Part#
A Cabinet (32” insulated) ES0026
B Solid black door (32” series) ES0027
C Push button control panel ES0025
D Chrome smoking racks ES0047
E Smoking rack side support ES0005
F Damper vent with guard ES0006
G
Aluminized steel wood chip box
with lid
ES0007
H Porcelain-coated enamel water pan ES0008
I Galvanized steel grease pan ES0009
J Door and drawer handles ES0010
K Adjustable feet (pair) ES0011
L Fixed position feet (pair) ES0012
M Heating element (800 Watt) ES0013
N Wheel assembly (each) ES0014
O Back handle ES0015
P Top drawer front panel-black ES0016
Q Top drawer support frame ES0017
R Bottom drawer front panel-black ES0018
S Bottom drawer support frame ES0019
T Top drawer slides (set) ES0020
U Bottom door crossbar ES0029
V Meat temperature probe ES0022
W Top door hinge ES0023
X
Bottom door hinge welded
to cross bar
ES0024
Part Description Part#
Y Top drawer stopper ES0035
Z Top drawer stopper spring ES0036
AA
M5 x 16 mm short round head
phillips bolts
ES0030
BB
M5 x 54 mm long round head
phillips bolts
ES0031
CC 6.5 mm Spring washer ES0032
DD 6.5 mm Flat washer ES0033
AB Meat probe fixture ES0037
AC
Grease tray slide - right outside
(preassembled)
ES0038
AD
Grease tray slide - right inside
(preassembled)
ES0039
AE
Grease tray slide - left inside
(preassembled)
ES0040
AF
Grease tray slide - left outside
(preassembled)
ES0041
AG
Door latch assembly
(preassembled)
ES0042
Control panel plugs (4 plugs) ES0025
Bottom drawer wheels (pair) ES0045
Hardware blister card ES0046
Note: Refer to the "Hardware Contents" section for
illustrations of hardware available for order.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
1-800-321-3473, 8:00 a.m. – 5:00 p.m., EST, Monday – Friday.

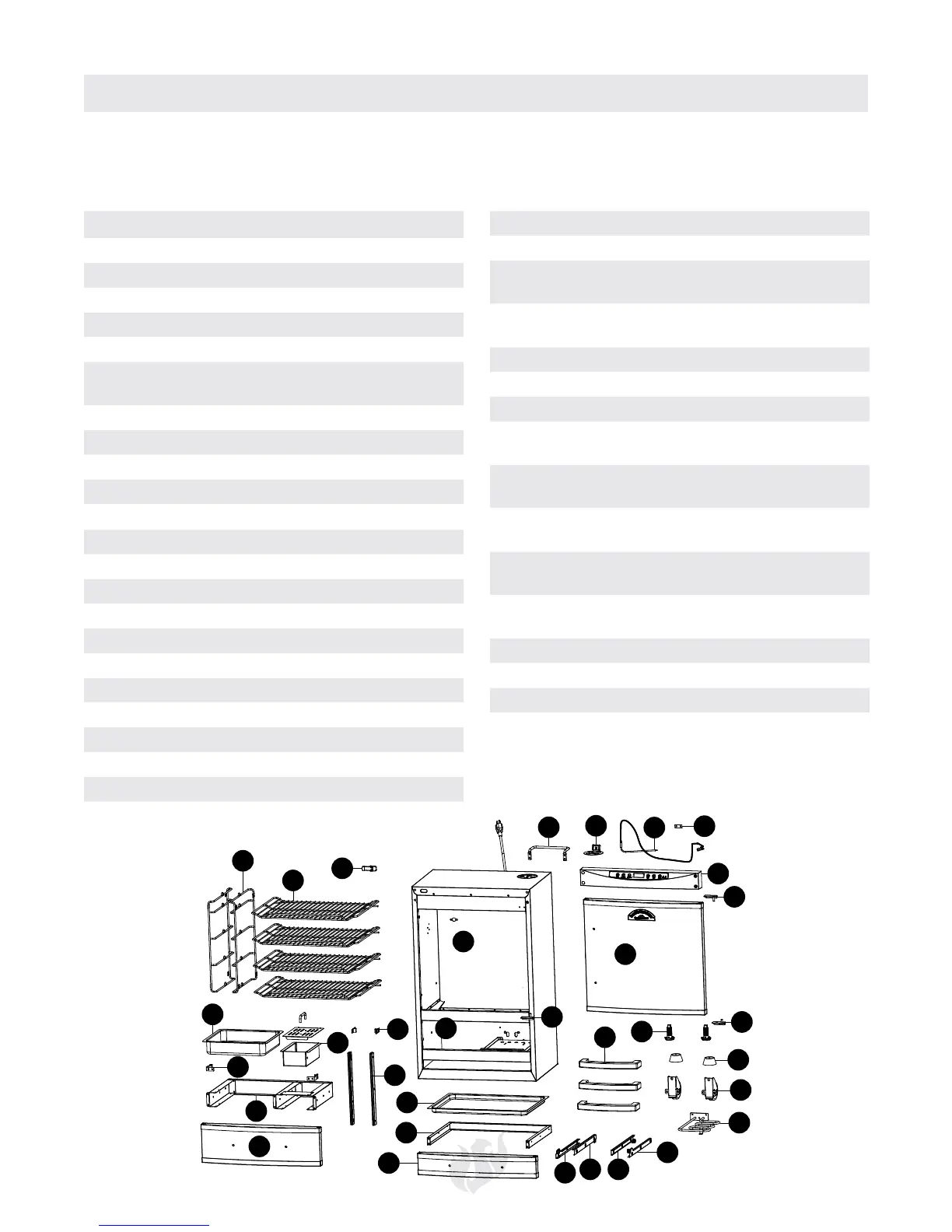

H
