Laney CUB HEAD User Manual

SPECIFICATIONS
7
Nominal Supply Voltage ~100V, ~115V, ~220V, ~230V, 50/60Hz
Power Consumption 50W
Output Power Rating 15W
Input Impedance 1MOhm
Size (H*W*D) 248*435*235
Unit Weight
Operating voltage Factory set
Loudspeaker outputs 1x 8 Ohm Extension speaker socket
Features Class A/B Push/Pull circuitry
2xEL84 Power Tubes
3xECC83/12AX7 Preamp Tubes
Gain, Tone, Volume & EQ Controls
FX Loop
Digital Reverb - Footswitchable (FS1 Optional)
Hi & Lo Power Inputs (See later description)
9Kg (Shipping Weight 10Kg)
1x 16 Ohm Extension speaker socket

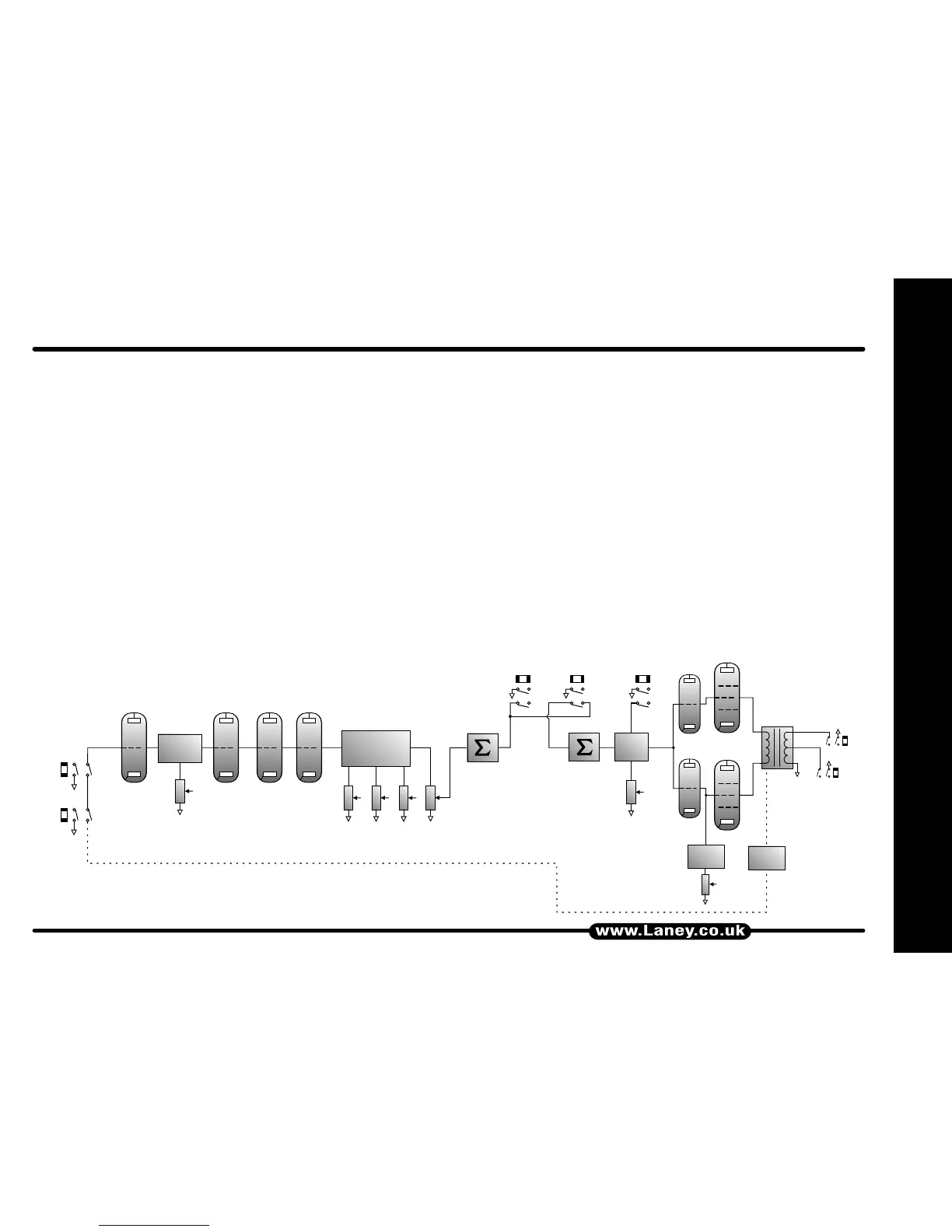

BLOCK DIAGRAM
15W INPUT
<1W INPUT
V1b
V1a
GAIN
GAIN
CONTROL
LOUDSPEAKER
SOCKETS
EQ
BASS
MID
TREBLE
VOLUME
V2aV2b
8 OHMS
V3a
V3b
V4
V5
FX RETURN
LINE OUT
FX SEND
TONE
TONE
CONTROL
POWER
SCALING
DIGITAL
REVERB
REVERB
FOOTSWITCH
16 OHMS
CUB HEAD

Laney CUB HEAD Specifications
