Lanix LX700B - 4 Input;Output Specification; Input Signal Connector

17"& 19” LCD Color Monitor LANIX LX700B&LX900B
11

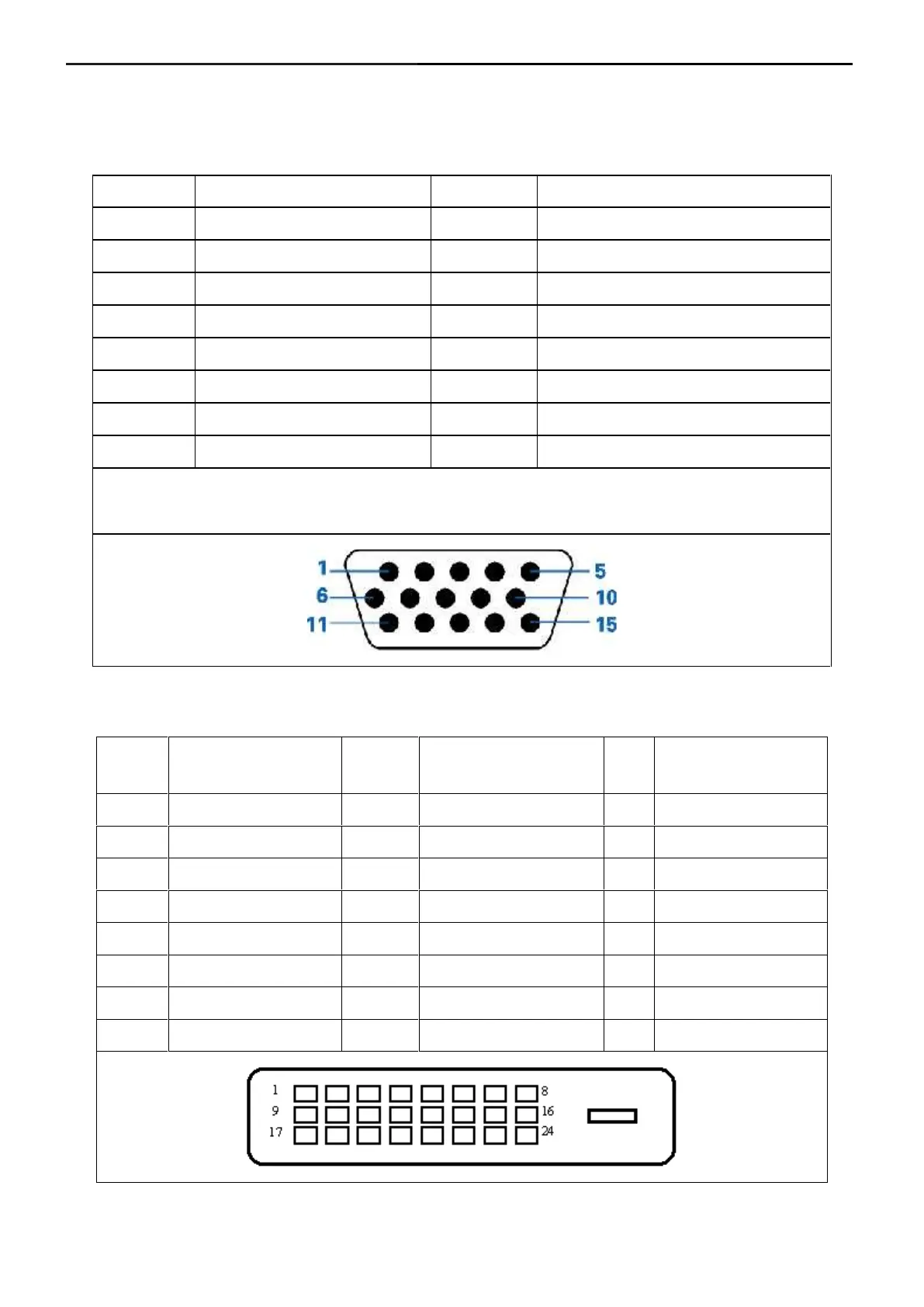

4. Input/Output Specification
4.1 Input Signal Connector
Analog connectors
Pin No.
Description
Pin No.
Description
1
Video-Red
9
+5V
2
Video-Green
10
Detect Cable
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Ground
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
VGA connector layout
DVI connectors
Pin No.
Description
Pin No.
Description
Pin
No.
Description
1
TMDS Data 2-
9
TMDS Data 1-
17
TMDS Data 0-
2
TMDS Data 2+
10
TMDS Data 1+
18
TMDS Data 0+
3
TMDS Data 2/4 Shield
11
TMDS Data 1/3 Shield
19
TMDS Data 0/5 Shield
4
TMDS Data 4-
12
TMDS Data 3-
20
TMDS Data 5-
5
TMDS Data 4+
13
TMDS Data 3+
21
TMDS Data 5+
6
DDC Clock
14
+5V Power
22
TMDS Clock Shield
7
DDC Data
15
Ground(for+5V)
23
TMDS Clock +
8
N.C.
16
Hot Plug Detect
24
TMDS Clock -
