17"& 19” LCD Color Monitor LANIX LX700B&LX900B
49

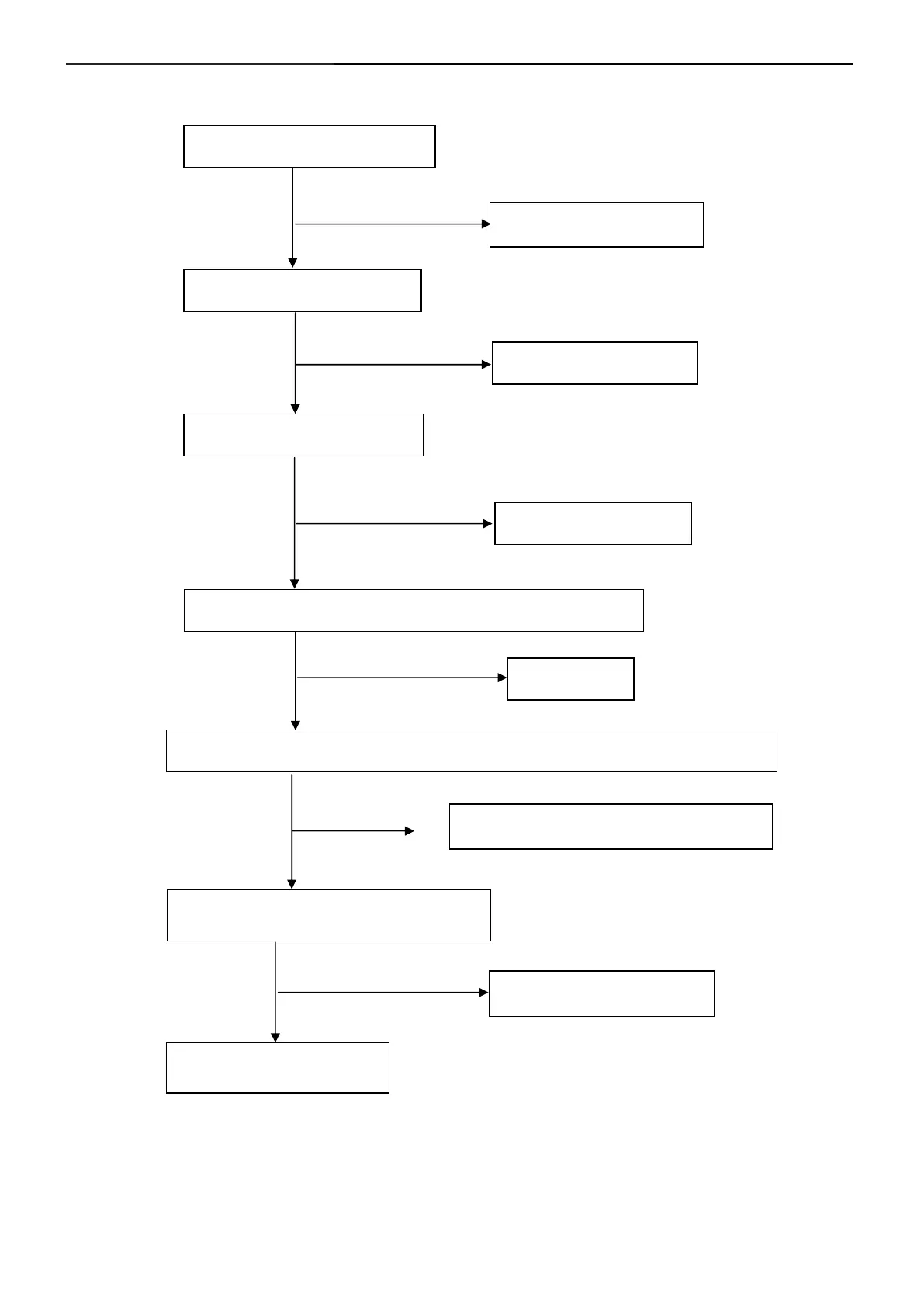

2.) W / LED, No Backlight
Check CN902 pin4, 5 = 5V
NG
OK
Check adapter or MB
Check ON/OFF signal
Check Interface board
NG
OK
Check IC801 PIN12=12V
pin9=12vvoltage of C905(+)
NG
OK
Change Q808
Check IC801 PIN10, 9 have the output of square wave at short
time
NG
OK
Change IC801
Check Q802 PIN5, 6, 7, 8 have the output of square wave at short time.
NG
OK
Check Q801, Q804, Q811, Q812, Q802
Check the output of T801
Check connecter & lamp
OK
NG
Change T801
