Lanner NCA-1516 - LTE and WiFi Combination Placement; 1 x LTE + 1 x WiFi 5 (Wave 2) Placement; 1 x LTE + 1 x WiFi 6 Module Placement

NCA-1516 User Manual
33

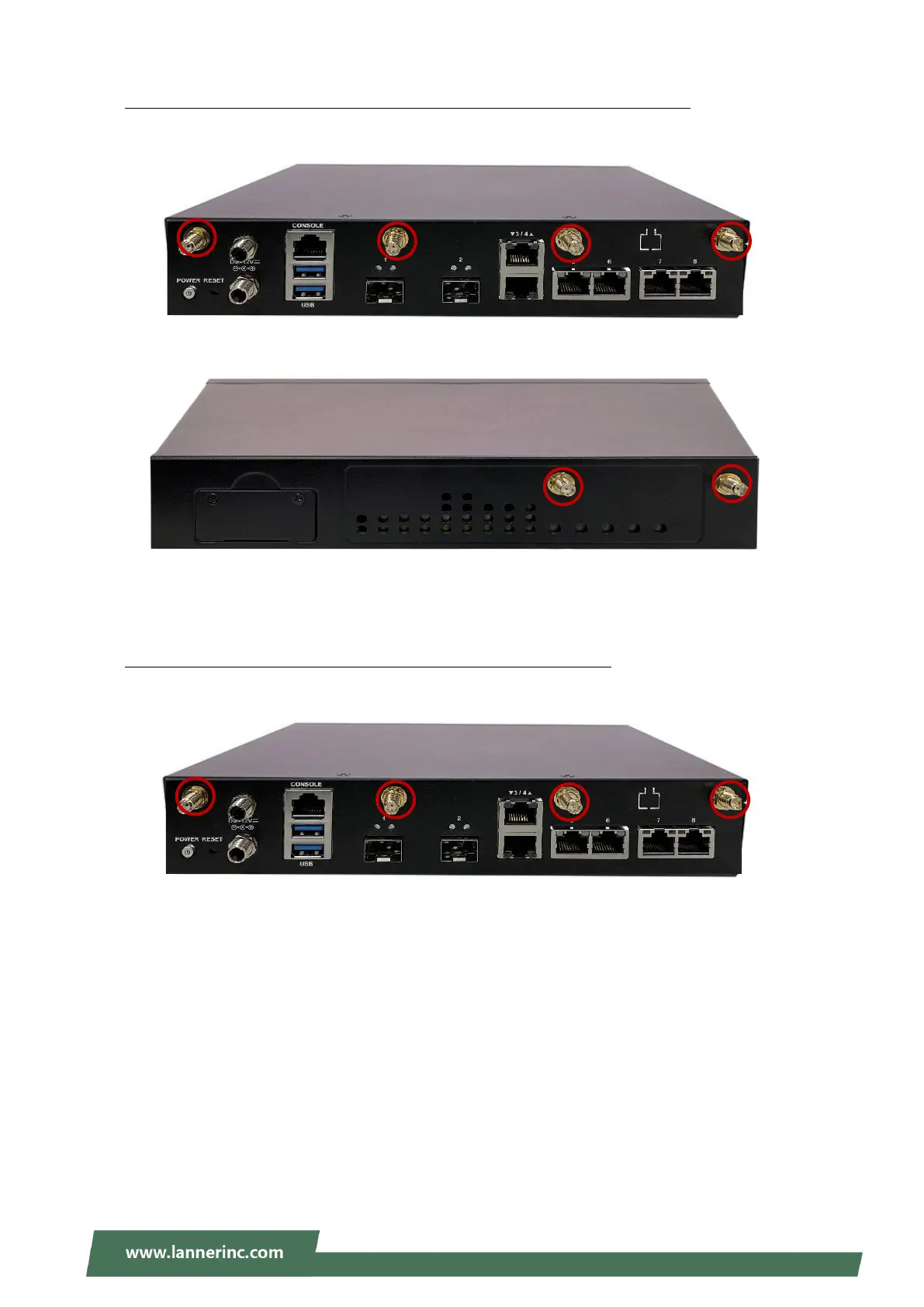

H. Antenna Placement Optimization for 1x LTE and 1x WiFi 5 (802.11ac Wave 2):
I. Antenna Placement Optimization for 1x LTE and 1x WiFi 6 module:
Rear Panel
LTE Aux
LTE Main
WiFi 5 Wave 2
WiFi 5 Wave 2
WiFi 5 Wave 2
Front Panel
WiFi 5 Wave 2
Rear Panel
LTE Aux
LTE Main
WiFi 6
WiFi 6
