8: Line and Tunnel Settings
EDS1100/2100 Device Server User Guide 55
Active
(If it receives a specific ([configurable]) character from the serial port ([same start
character as Connect Mode’s start character]).
Modem control signal
(When the modem control pin is asserted on the serial line corresponding to the tunnel.)
Modem emulation
To configure the Accept Mode of a specific tunnel:
1. Select Tunnel on the menu bar, if you are not already in the Tunnel web page.
2. Select a tunnel number at the top of the page.
3. Select Accept Mode. The Accept Mode page for the specific tunnel appears.

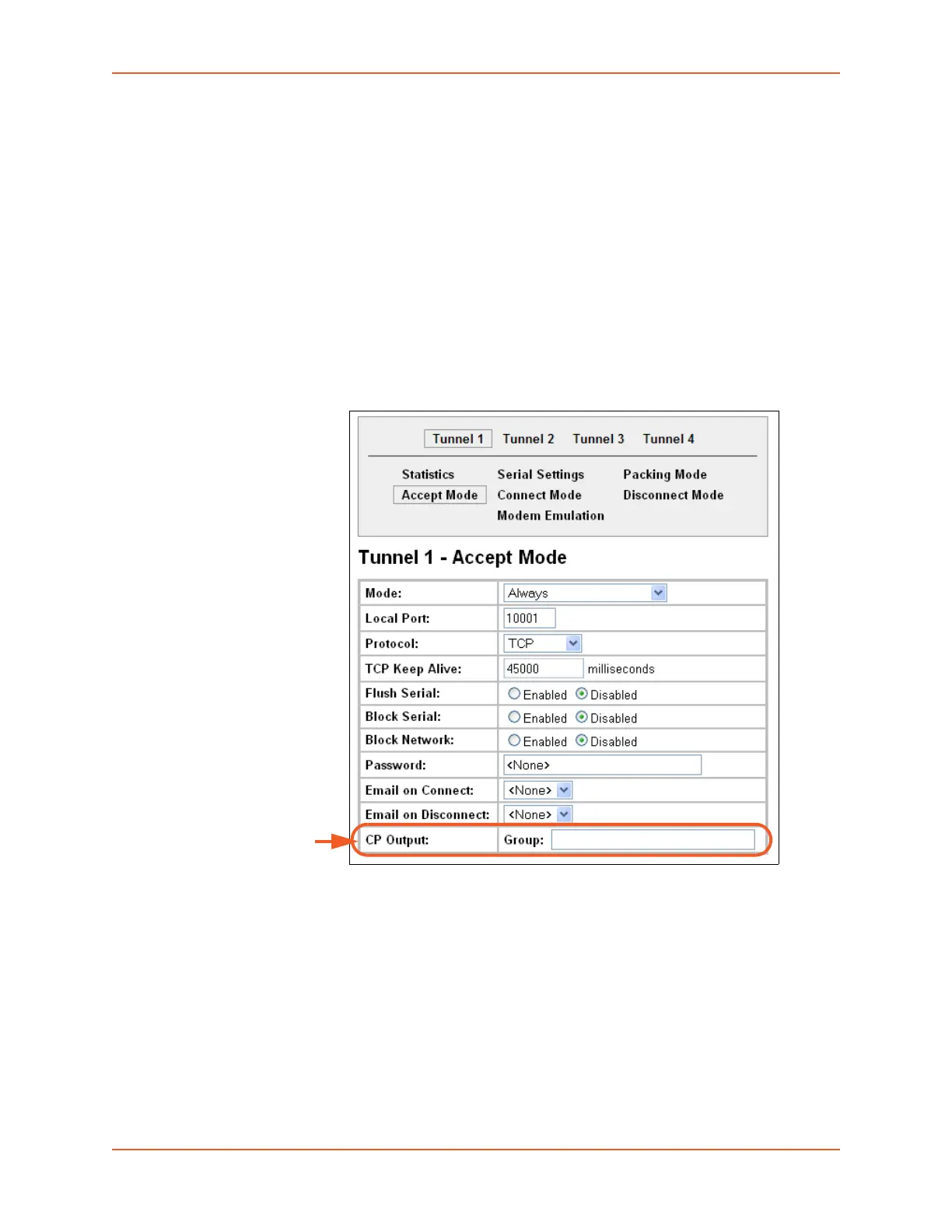

Figure 8-13 Tunnel 1 Accept Mode
4. Enter or modify the following settings:
Note: The CP Output
option is only supported in
XPort Pro and XPort AR.
