4: Quick Setup
SLC™ Console Manager User Guide 35

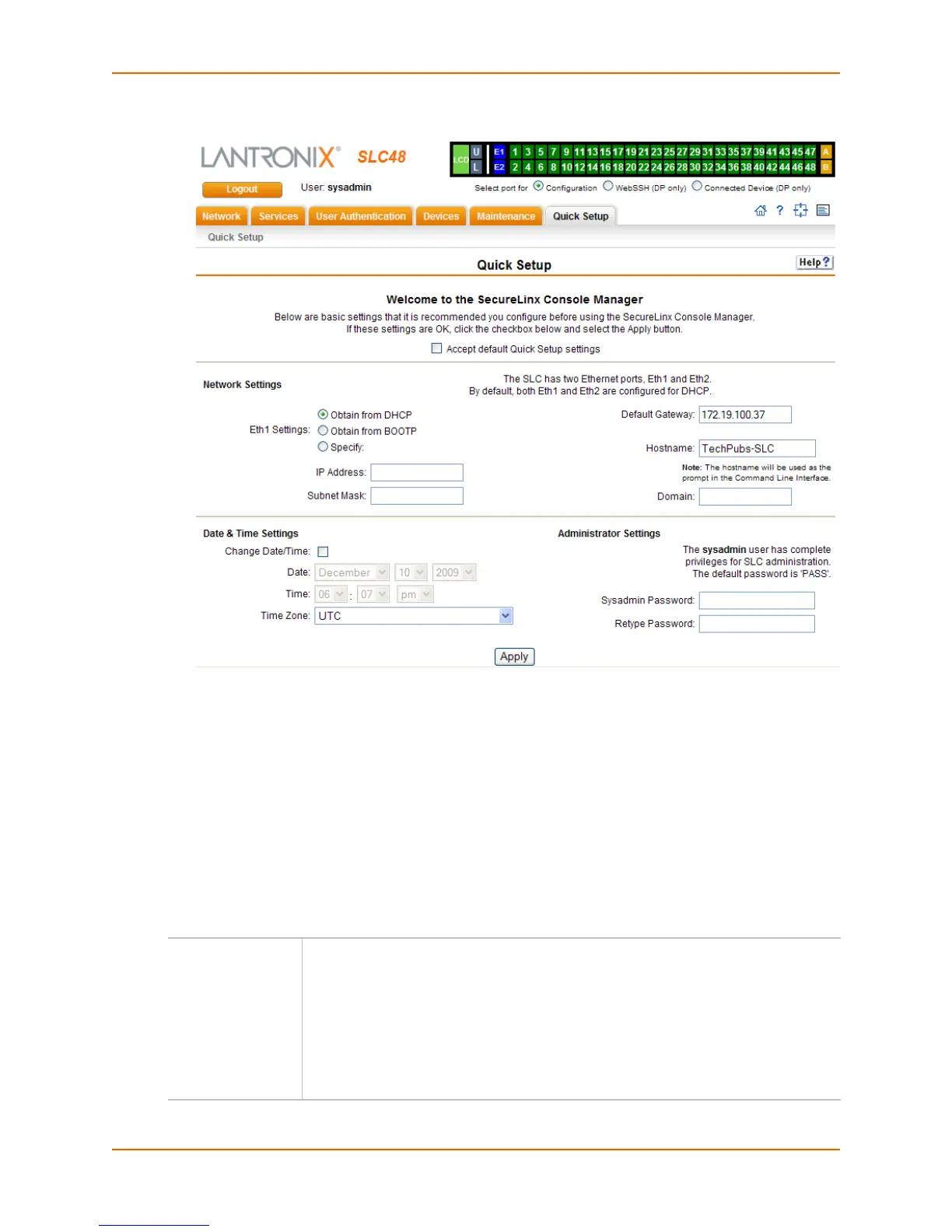

Figure 4-5 Quick Setup Tab
4. To accept the defaults, select the Accept default Quick Setup settings checkbox in the top
portion of the page and click the Apply button at the bottom of the page. Otherwise, continue
with step 5.
Note: Once you click Apply on the Quick Setup page, you can continue using the web
interface to configure the SLC console manager.
5. Enter the following fields.
Note: Configurations with the same IP subnet on multiple interfaces (Ethernet or PPP)
are not currently supported.
Network Settings
Eth1 Settings Obtain from DHCP: Acquires IP address, subnet mask, hostname and gateway
from the DHCP server. (The DHCP server may not provide the hostname gateway,
depending on its setup.) This is the default setting. If you select this option, skip to
Gateway.
Obtain from BOOTP: Lets a network node request configuration information from a
BOOTP “server” node. If you select this option, skip to Gateway.
Specify: Lets you manually assign a static IP address, generally provided by the
system administrator.
