5: Web and Command Line Interfaces
SLC™ Console Manager User Guide 41

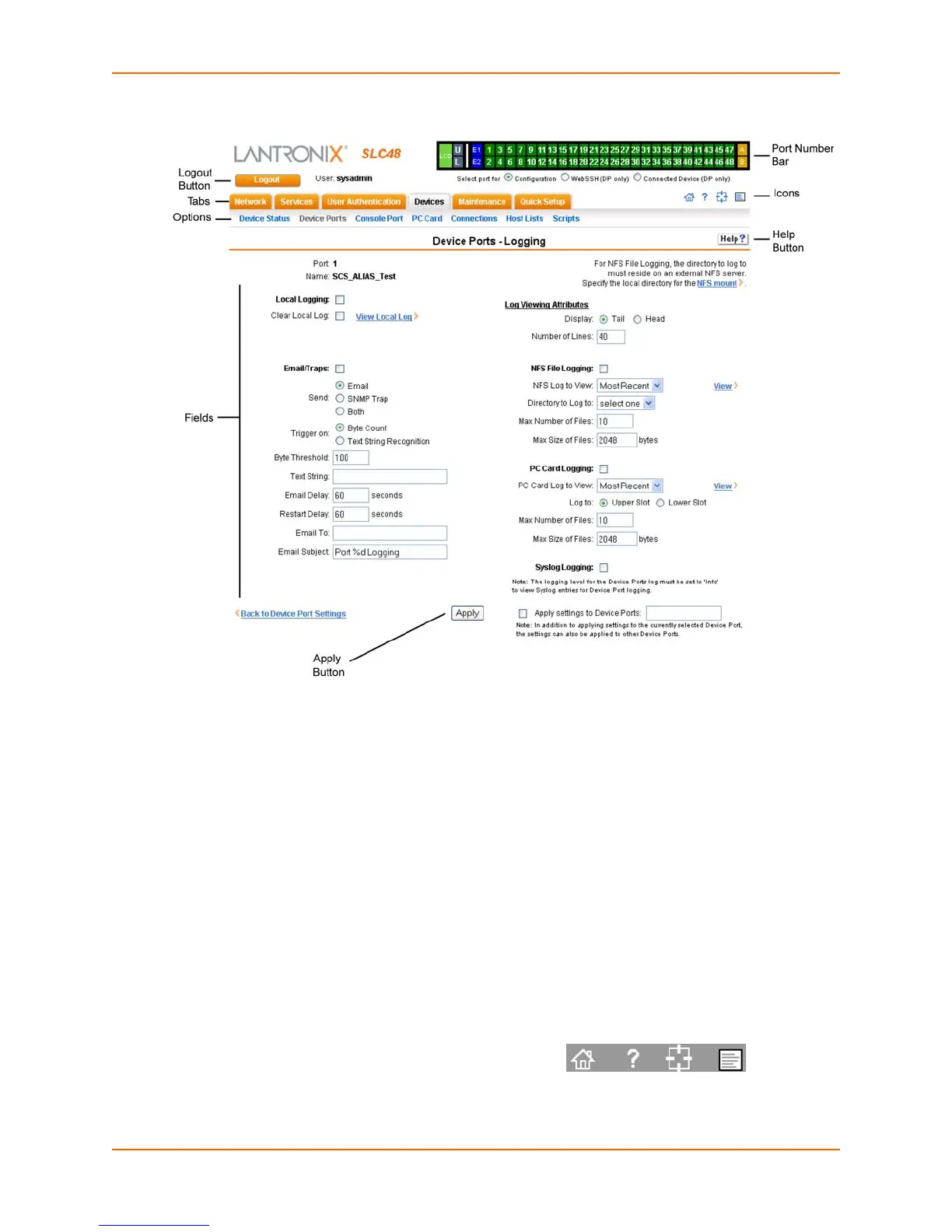

Figure 5-1 Web Page Layout
The web page has the following components:
Tabs: Groups of settings to configure.
Options: Below each tab are options for specific types of settings. Only those options for
which the currently logged-in user has rights display.
Port Number Bar: Allows you to select a port and display its settings. The E1 and E2 buttons
display the Network – Settings page. The A and B buttons display the status of the power
supplies. Only ports to which the currently logged-in user has rights are enabled.
Entry Fields and Options: Allow you to enter data and select options for the settings.
Note: For specific instructions on completing the fields on the web pages, see Chapters
Chapter 6: Basic Parameters, Chapter 7: Services, Chapter 8: Devices, Chapter 9: PC
Cards, Chapter 10: USB Port, Chapter 11: Connections, and Chapter 12: User
Authentication.
Apply Button: Apply on each web page makes the changes immediately and saves them so
they will be there when the SLC console manager is rebooted.
Icons: The icons in the icon bar above the Main Menu are (from left
to right):
- Home page.
