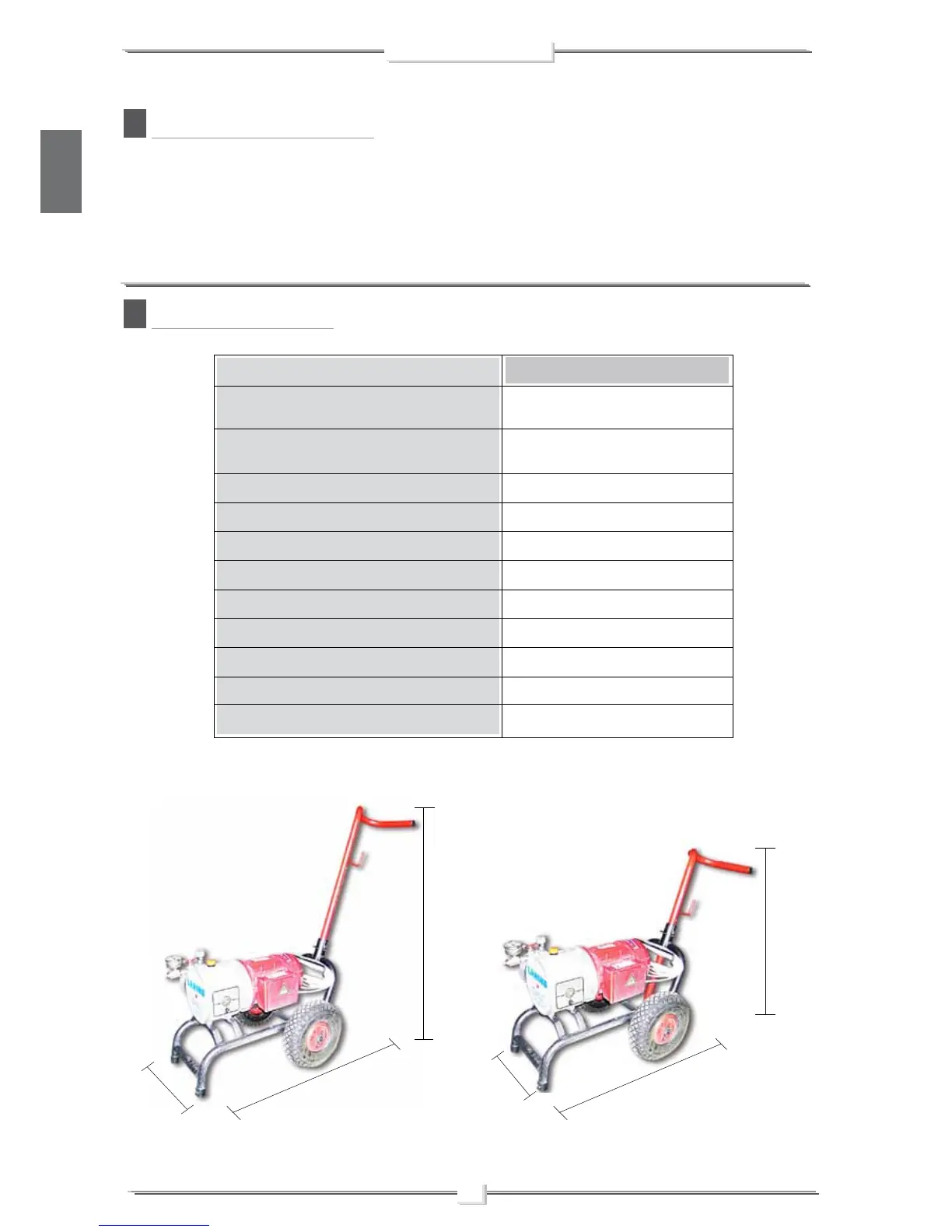

Larius DALI - Working Principle; Technical Data

2
DALì
English
C
B
A
A
B
DALÌ
SUPPLY (
single-phase, Three-phase internal com-
bustion supply, petrol-diesel )*
MOTOR POWER Mono-threephase
Internal combustion
MAX. WORKING PRESSURE
MAX. DELIVERY
MATERIAL OUTLET
WEIGHT
LEVEL OF THE SOUND PRESSURE
LENGTH
WIDTH
MAXIMUM HEIGHT
MINIMUM HEIGHT
220V 50Hz / 110V 60Hz
380V 50Hz
1,1 kW
3 HP
200 bar 2900 psi
4 L/min
M16 x 1,5 (M)
38 Kg
≤ 65dB(A)
(A) 1100 mm
(B) 500 mm
(C) 1000 mm
(C1) 710 mm
B
C1
A
*Available on request with special voltages
PARTS OF THE PUMP IN CONTACT WITH THE MATERIAL Stainless Steel AISI 420B, Teflon, Aluminium.
WORKING PRINCIPLE
The LARIUS DALÍ unit is defined as an “electric diaphragm
pump”. An electric diaphragm pump is used for high pressure
paint spraying without air (known as “airless”).
The pump is powered by an electric (internal combustion) motor
coupled with a cam shaft. The shaft acts on the hydraulic piston
as it pumps oil from the hydraulic case and sends the suction
diaphragm into fibrillation. When the diaphragm moves, it creates
a vacuum. The product is sucked up, pushed towards the pump
outlet and sent to the guns through the flexible hose . A hydraulic
valve on the hydraulic case head allows setting and checking
the pressure of the paint product at the pump outlet. A second
hydraulic safety valve to avoid over-pressure, ensures total
equipment reliability.
TECHNICAL DATA
