LTI TruPulse 360R User’s Manual Page 14
Copyright (c) [2017] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Display Indicator Test
To verify that all display indicators are working properly:
1. Start with the TruPulse 360R powered OFF, press-and-hold
.
2. Compare the in-scope display to the Figure #6 (see page 11) to verify
that all indicators are working properly.
3. Release
to start normal operation.
Eyepiece
The adjustable eyepiece (see Figure #7) is designed for comfort and to
block extraneous light. To extend the eyepiece, turn the eyepiece
counter-clockwise while pulling up. To return the eyepiece to its
original position, turn the eyepiece clockwise and push down. To
match your personal preference, the eyepiece may be located in any
position from fully up to fully down. If wearing eyeglasses or
sunglasses, the fully down position brings the eyepiece lens closer
to your eye and gives you a full field of view.
Eyepiece Cover:
The eyepiece cover protects the internal components
from sunlight exposure. The eyepiece cover should be
in place whenever the TruPulse 360R is not in use.
To attach the eyepiece cover:
Feed the thin cord under the metal bar and flare the loop
open. Pull the eyepiece cover through the loop and cinch
tight.

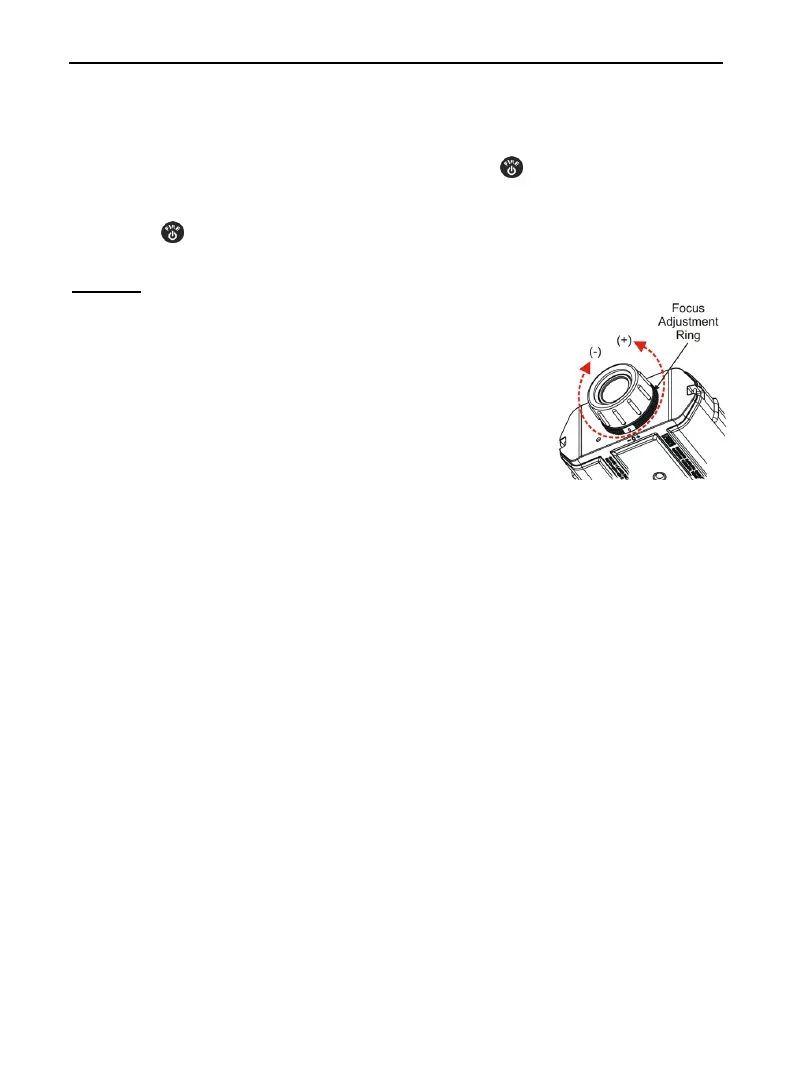

Figure #7
To Next Page
