Laser BWT15 - DIP switch

Shenzhen Qilin Laser Application Technology Co., Ltd.

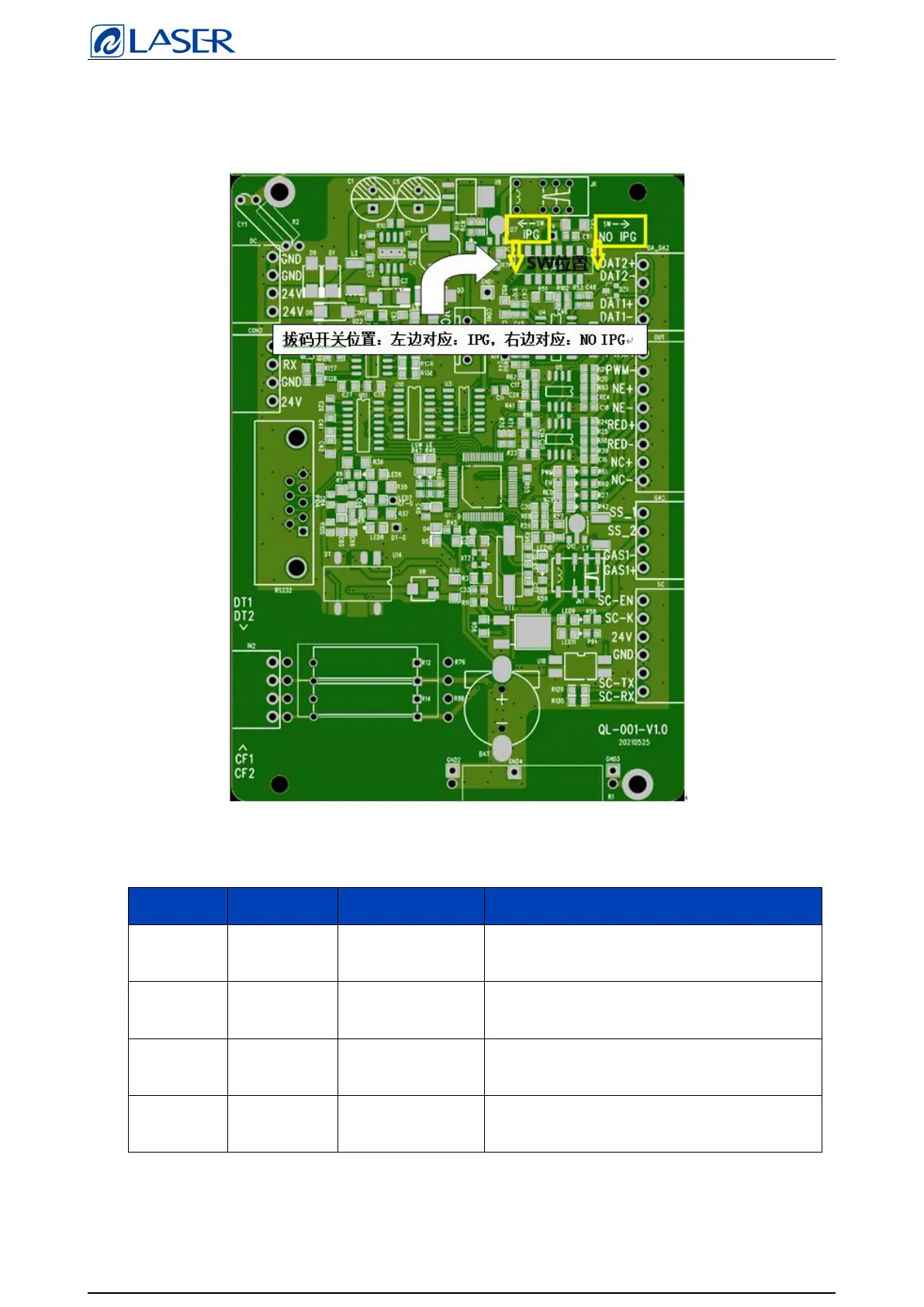

DIP switch:
Button position: left side for IPG using; right side for other source using
Pin
Signal
Definition
Description
1
IPG
IPG Laser control
signal
PWM, EN, RED, NC output 5V
2
IPG
IPG LPC
Power adjustment: 0-4V analog voltage can
be adjusted
3
NO IPG
Laser control
signal except IPG
PWM, EN, RED, NC output 24V
4
NO IPG
LPC except IPG
Power adjustment: DA 1 analog voltage can
be adjusted from 0 to 10V
