18
800 Magnetic Sensor

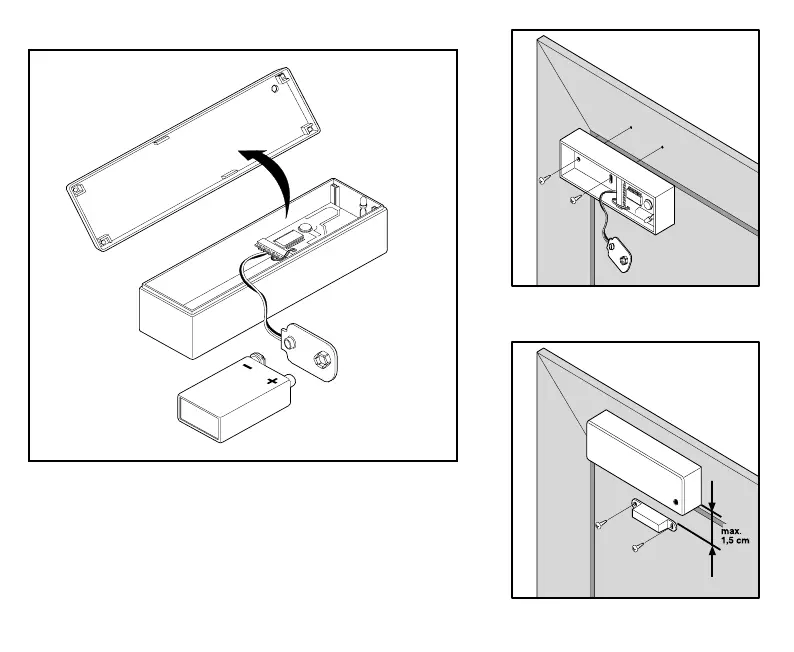

fig. 1
Tips for mounting the magnetic contact:
Avoid mounting the magnet on a ferrous surface (this will
attract the power of the magnet).
Mount magnet/contact on opening side of door and as high as
possible to avoid accidental damage.
fig. 3
fig. 2
Mount contact to door frame.
(see fig. 2)
Mount magnet to door. (see fig.3)
