LaserLiner LAN-Check User Manual

LAN-Check
09
11
13
10
1
2
6
3
7
4
8
5
9
12
1
2

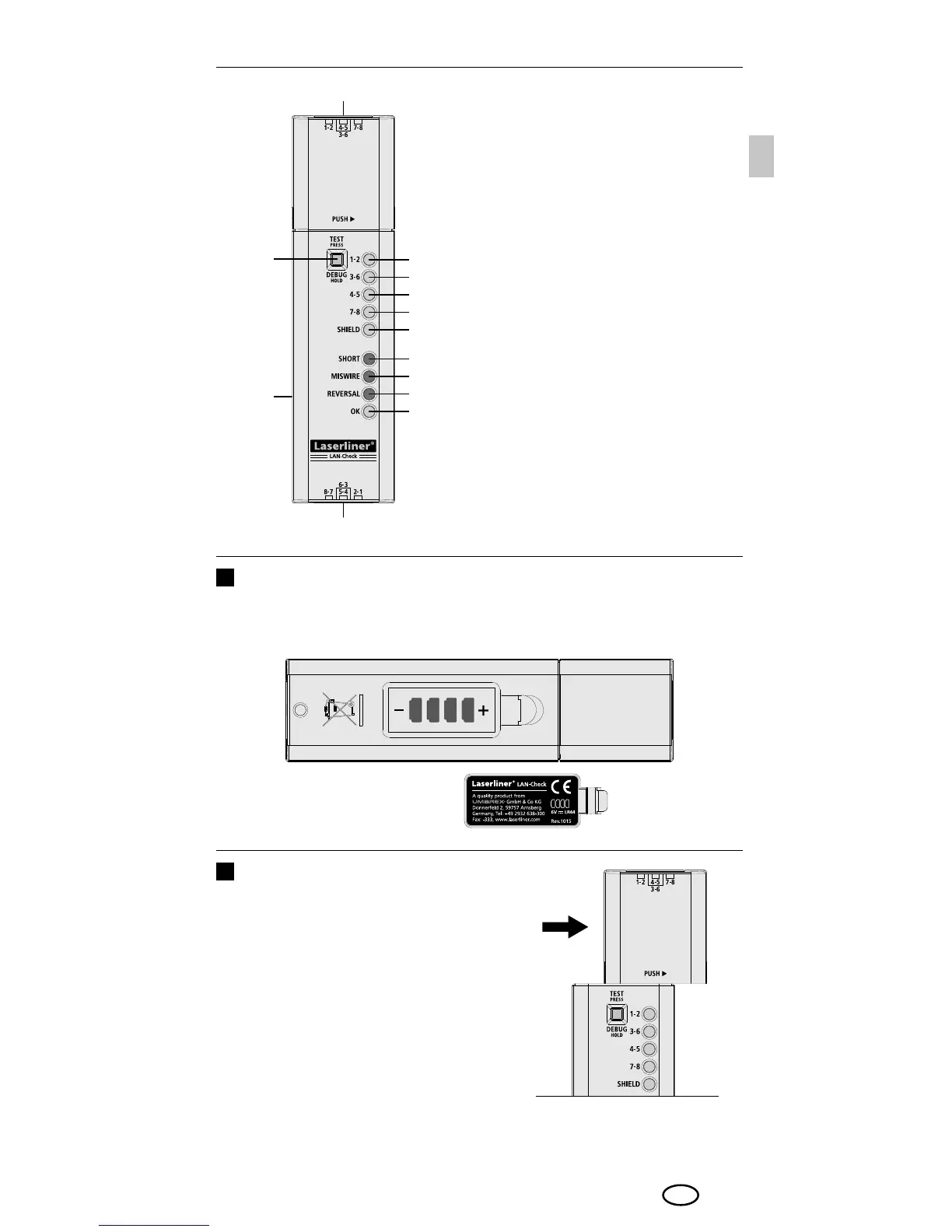

LED twisted pair 1 - 2
LED twisted pair 3 - 6
LED twisted pair 4 - 5
LED twisted pair 7 - 8
LED Shield (shielded
twisted pair cable)
LED „Short“
LED „Miswire“
LED „Reversal“
LED „OK“
RJ45 cable connector
(main device)
Battery compartment (rear)
„TEST“ (press) /
„DEBUG“ (hold) button
RJ45 cable connector
(cable terminal)
1
2
3
4
5
6
7
8
9
10
11
12
13
Inserting batteries
Remove cable terminal
Open the battery compartment and insert batteries according
to the symbols. Be sure to pay attention to polarity.
The cable terminal can be disconnected
from the main device before testing.
GB
