10 / 34 Puridest Glass Distillation Apparatus 09/2020
6 Water Connections

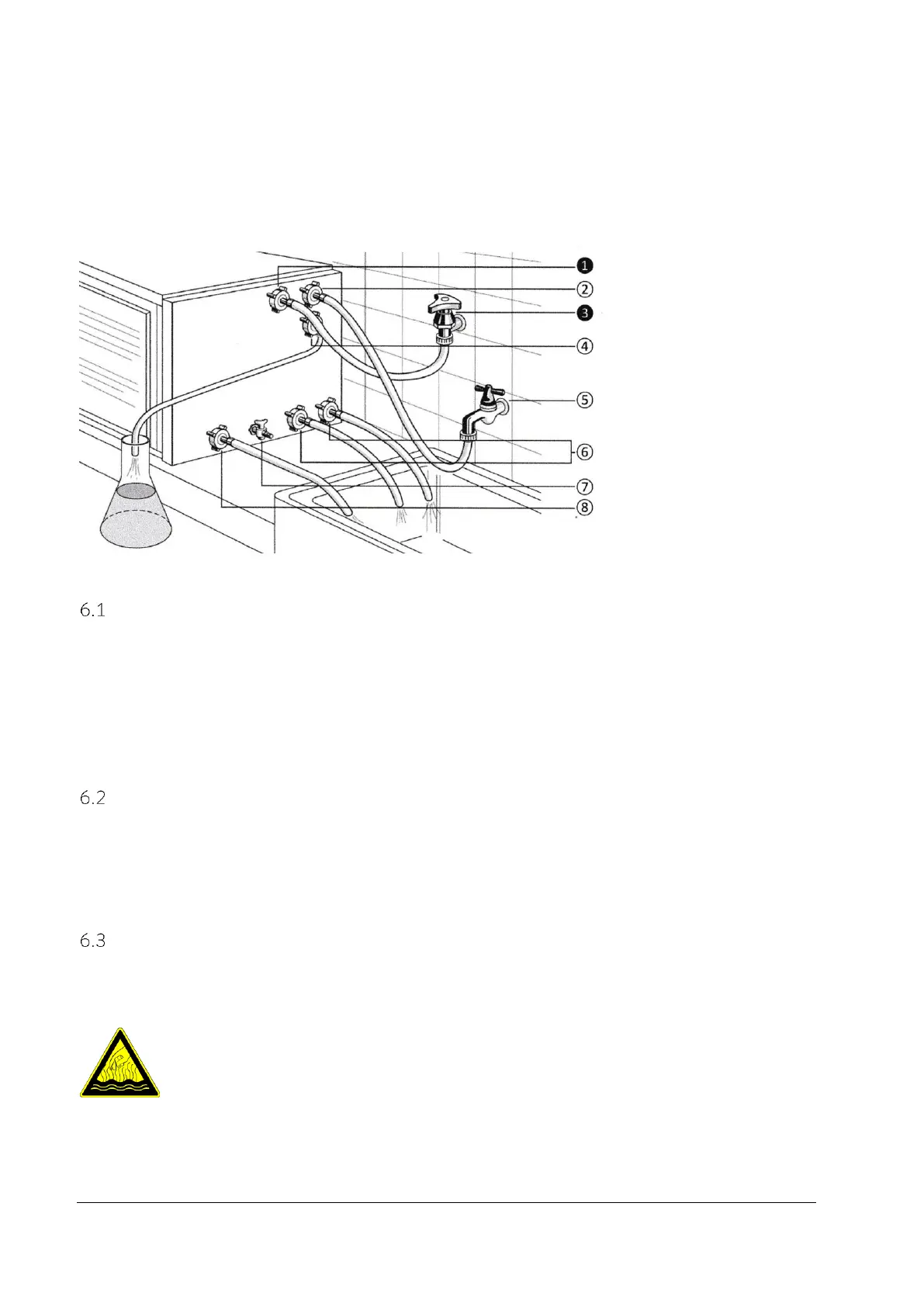

All water connections of the Distillation Apparatus, except the distillate withdrawals, are situated on the right-hand side of
the unit. Hoses for water inlet and outlet are not included in the standard scope of supply.
Inlet separate water supply
❶ Part of an Option. Only fitted if a „separate water supply“ was ordered.
The water inlet for the separate water supply feeds softened or desalinated water to boiler of the Distillation Apparatus
through a solenoid valve. The hose connection must be connected to the domestic water connection ❸ for pretreated
water with a ½" pressure hose with lockable water connection (cut-off valve). Both hose connections must by all means be
secured with hose clips.
Tap water inlet
② The tap water inlet provides the Distillation Apparatus with water through a solenoid valve. The hose connection must be
connected to the water mains supply with a ½" (inch, inside 12.7 mm) pressure hose and a lockable water connection (
⑤,.manual cut-off valve). Both hose connections must by all means be secured with hose clips!
Distillate outlet
④ Connect a heat-resistant laboratory hose to the hose connector marked distillate outlet and lead it into a vessel to collect
the distillate.
Caution:
Distilled water leaves the Distillation Apparatus with temperatures up to 100 °C.
Danger of scaldings!
