Lauda PD 4 - 13.2 Examples for connection to the mains supply

16 / 22 Puridest Mono Distillation Apparatus 09/2020
Examples for connection to the mains supply 13.2

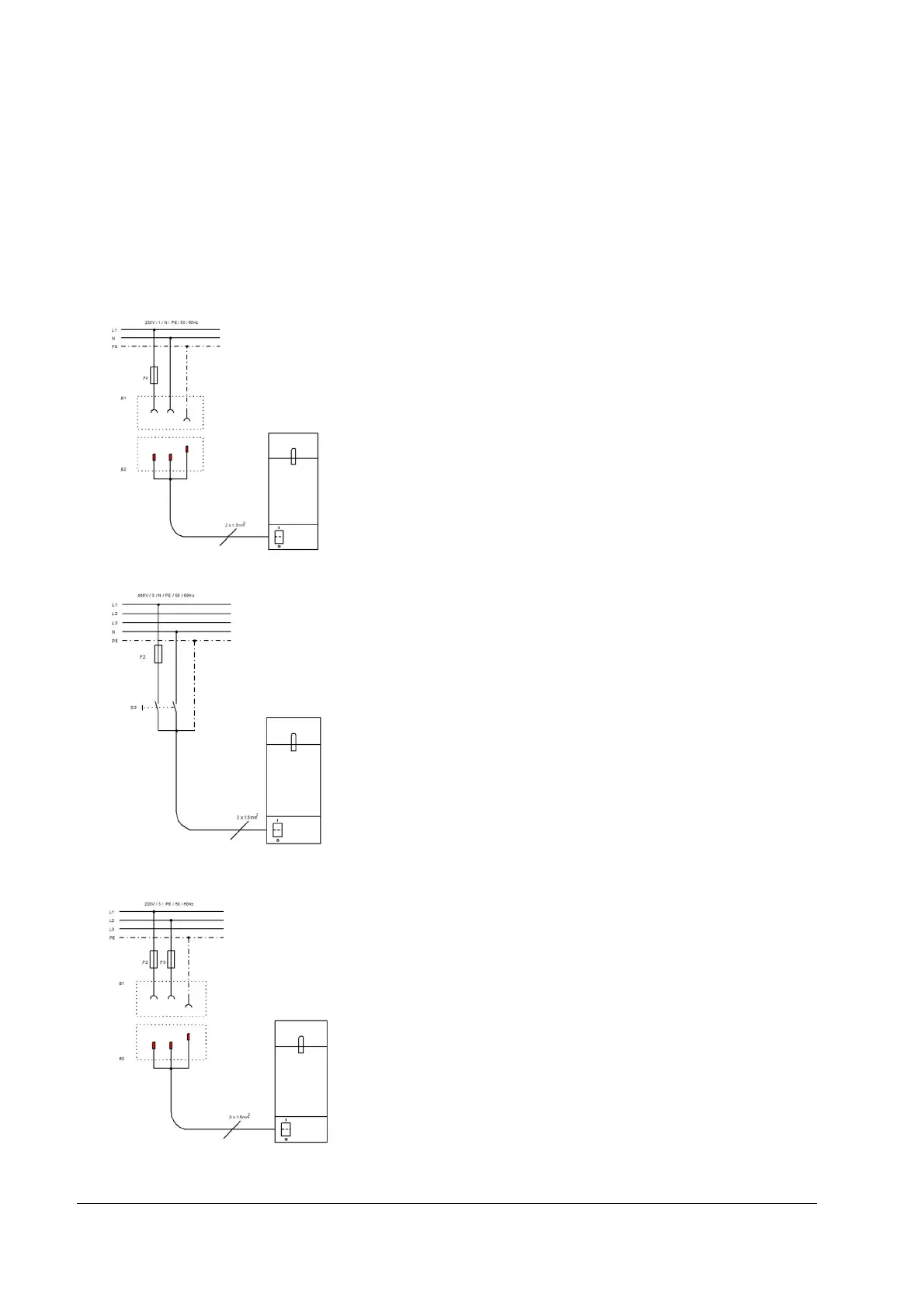

Components
B1 Shock-proof socket (on-site)
B2 Shock-proof plug (mounted on the unit)
F4 Mains fuse (on-site)
F5 Mains fuse (on-site)
S2 Main switch (on-site)
PD 2 und PD 4
with mains supply 230 V / N / PE / 50 / 60 Hz,
connected through 3-pole shock-proof plug system.
PD 2 und PD 4 for 230 V
with mains supply 400 V / 3 ~ / N / PE / 50 / 60 Hz
connected through on-site main switch.
PD 2 und PD 4
with mains supply 220 V / 3 ~ / PE / 50 / 60 Hz
connected through 3-pole shock-proof plug system.
