Launch TLT440 - Pneumatic Diagram

LAUNCH 440(440W) 455(455W) Installation Manual
29

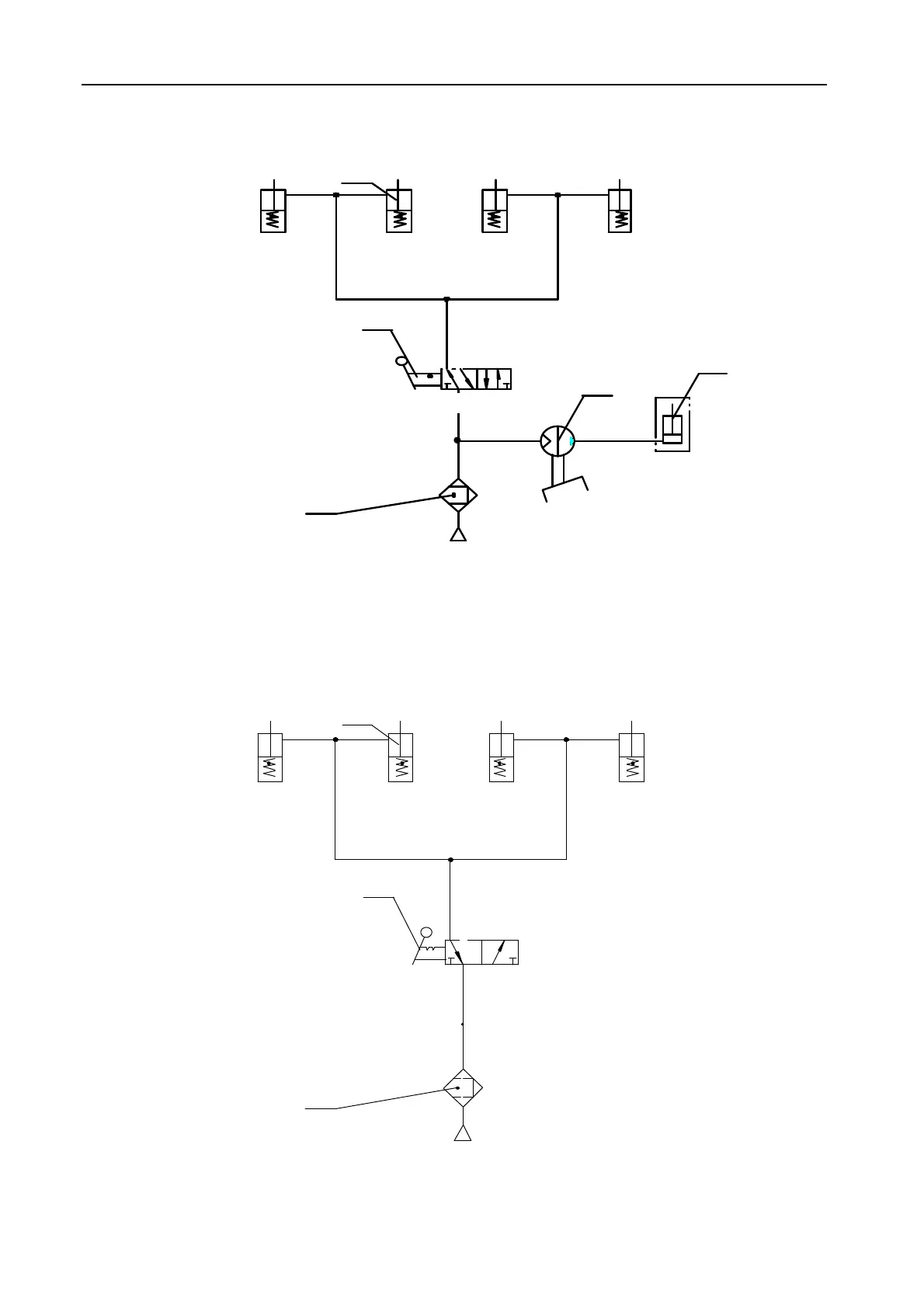

TLT440W, TLT455W Diagram of Pneumatic system:
1
3
X Y
4
5
P
P
S R
B A
2
1.AirSource2.AirControlValve
3.AirCylinder
4PneumaticPump5Cylinder
TLT440, TLT455 Diagram of Pneumatic system:
1
3
P
R
A
2
P
1．Air Source 2. Air Control Valve 3. Air Cylinder
