3.4 Outside the vehicle test
It only applies to battery test and detecting floating electricity will be ignored
while performing battery test.
1. On Fig. 3-1, select [Outside the vehicle], and click [Next] to enter.

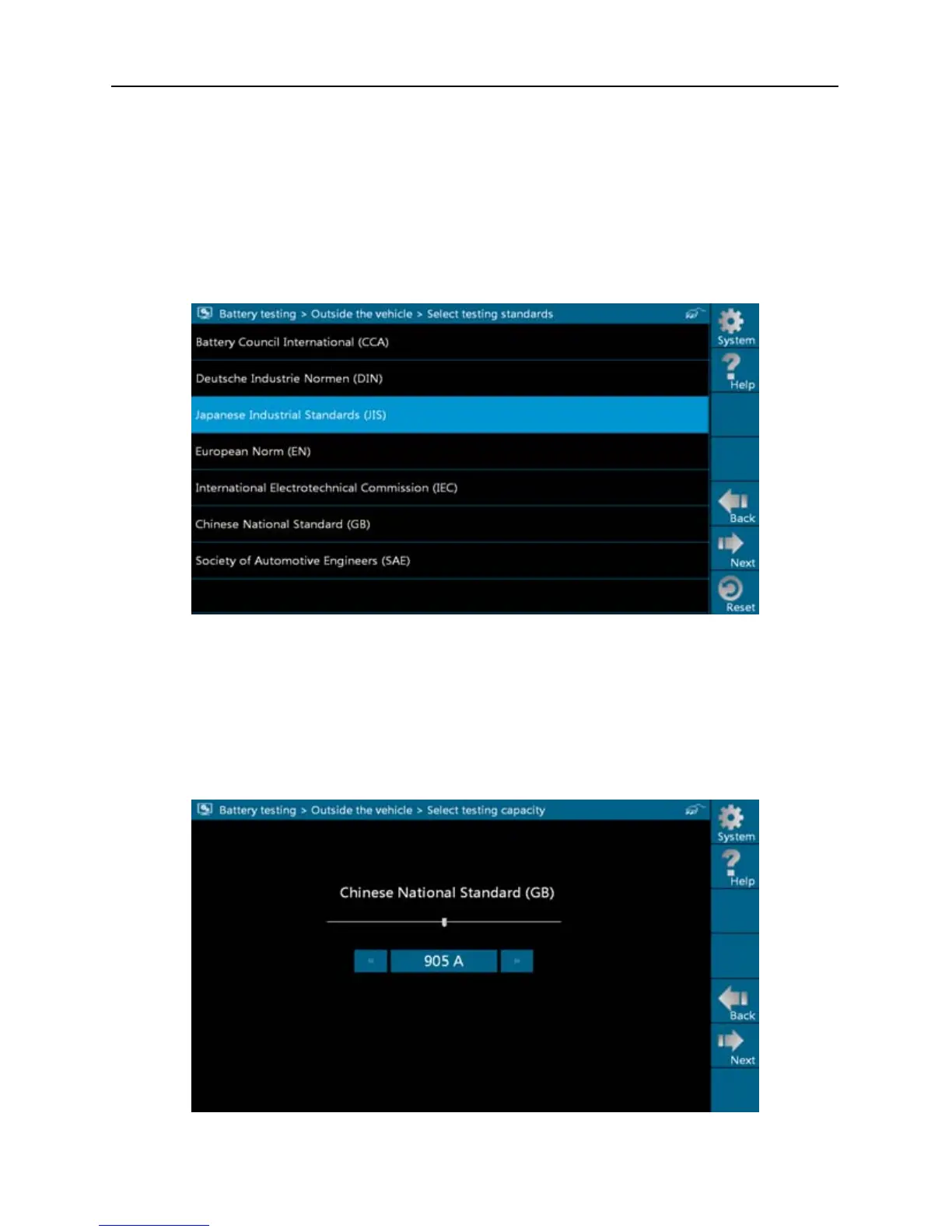

Fig.3-13
2. Select a
testing standard except for JIS and click [Next], the system will
enter a screen shown as Fig. 3-14. The capacity value can be adjusted by
touching << or >> or by dragging the slider on the bar.
Fig. 3-14
