1.3 Identification
1.3.1 Combine identification
The combine and its main components are identified by serial numbers and/or production codes.
The position of the different identification data is described below.
NOTE:
Always quote the combine serial number when contacting your Dealer for spare parts or assistance.
Combine approval and safety plates

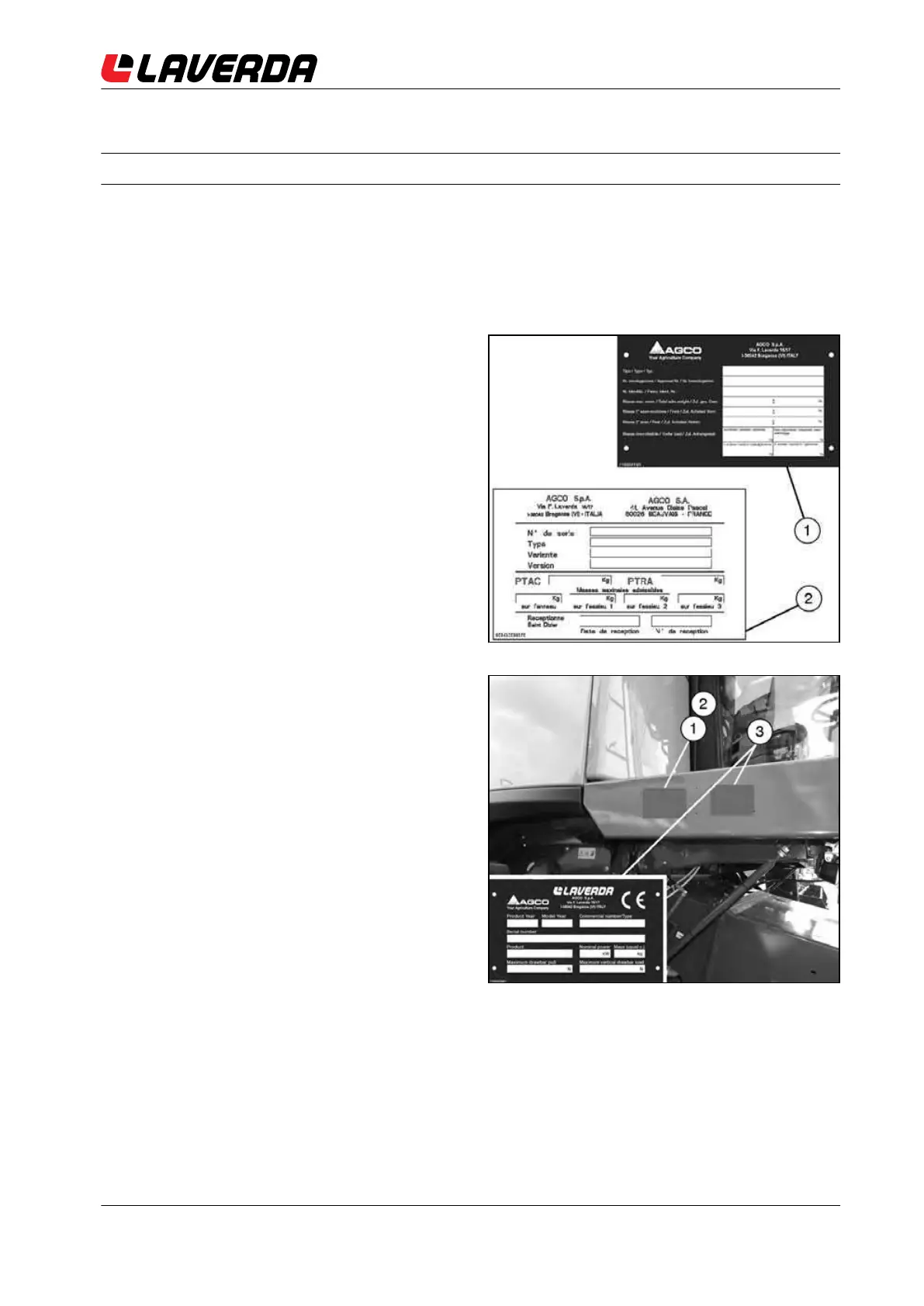

The manufacturer's type plate (1), statutory for all
countries (or (2), for France only), is positioned on
the outer right-hand side of the operator platform
and shows the following information:
•
Combine type
• Approval number
• Combine serial number
• Total maximum permitted weight
• Weight (on both axles)
• Towing weight
For further details, please refer to the type
approval certificate.
Fig. 2
GUID-4C05F0A5-44A4-4480-A035-912644AA1868-high.tif [High]
The safety plate (3) is located next to the approval
plate, and guarantees that the combine was built
in compliance with Machinery Directive 2006/42/
EC as well as Directive 2004/108/EC.
This plate shows the following information:
•
Manufacturing year
• Marketing year
• Model
• Combine serial number
• Crop type
• Total weight (normal configuration)
• Nominal engine power
• Maximum towing weight
• Maximum vertical load on the trailer hitch
In certain countries (e.g. Russia) these two plates
are positioned next to an additional decal/plate
corresponding to the approval for that specific
country.
Fig. 3
GUID-FB36F4EF-5D06-4654-8251-5F9F61635486-high.jpg [High]
[V]
GUID-9C2411E7-011E-4994-933C-A3CD5798373E [V1]
1. General Information
Combines 21
M300-M310_EN_327305015
