Lawn Devil DB8605 - INSTALLATION INSTRUCTIONS; Installing Lower Handle into Housing; Connecting the Upper Handle with the Lower Handle; Installing Recoil-starter Rope in Rope Guide

6
INSTALLATION INSTRUCTIONS
Installing Lower Handle into Housing
WARNING
 Folding or unfolding the handle improperly can damage the cables, causing
an unsafe operating condition.

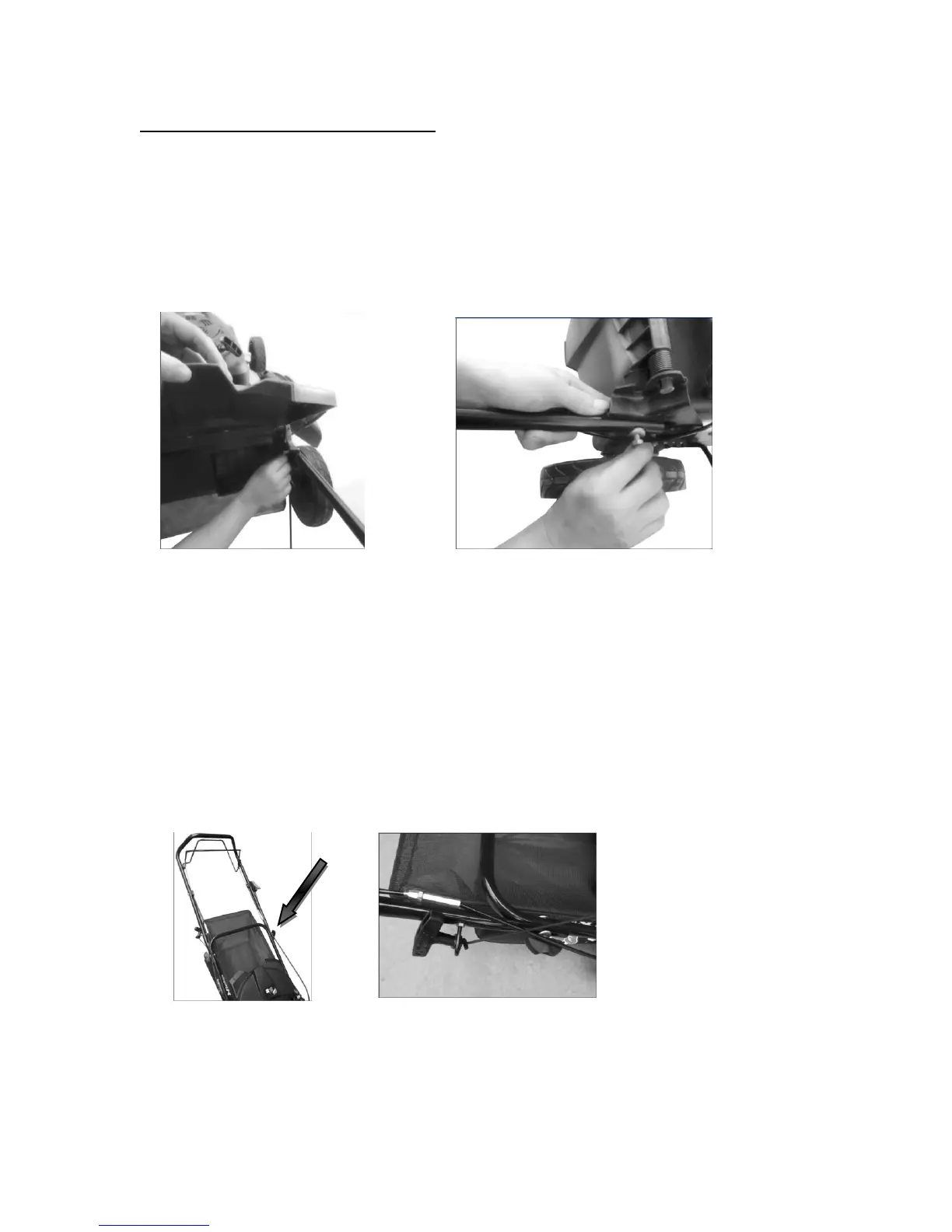

 Remove the bolts from the mower housing ( Figure 1) .
(Figure 1) (Figure 2)
 Move the handle to the operating position (Figure 2).
 Install and tighten the handle knobs that you removed in step a so that lower
handle is installed and tightened into the mower housing (Figure 2).
Connecting the Upper Handle with the Lower Handle
 Remove the handle knobs from the Lower Handle
 Move the Upper Handle to the operating position, to install and tighten the
handle knobs that you removed so that the Upper Handle and Lower Handle
are installed together and tightened(Figure 3).
(Figure 3) (Figure 4)
Installing Recoil-starter Rope in Rope Guide
 Pull the Recoil-starter Rope through the Rope Guide on the handle (Figure 4).
