14
ASSEMBLY

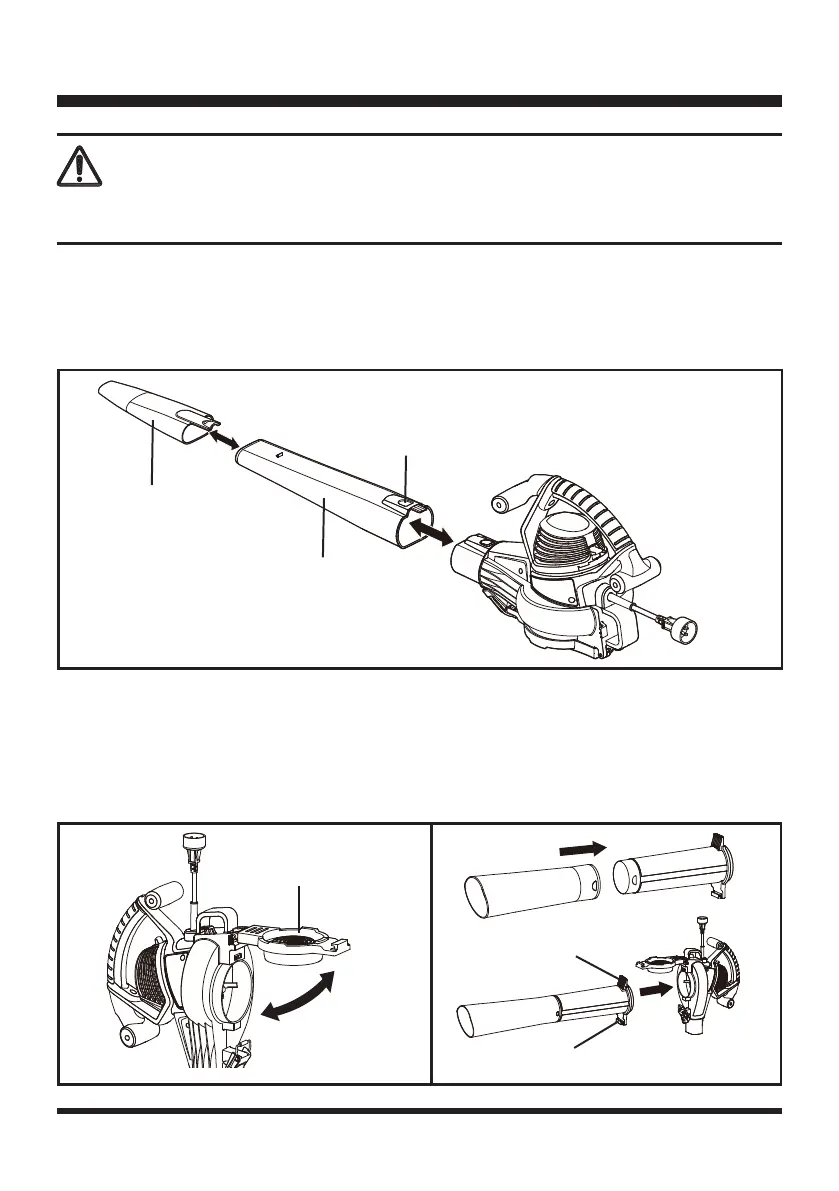

ASSEMBLING THE BLOWER TUBE (Fig. 1)
INSTALLING VACUUM TUBE AND COLLECTION BAG WITH SHOULDER STRAP
1. Assemble the vacuum tube sections by aligning and sliding upper tube into the lower vacuum tube
until the dierent size tabs have "set".
2. Open the mulch/vacuum gate (Fig. 2).
3. With the gate open, align tabs on vacuum tube with opening inside the gate (Fig. 3).
1. Slide blower tube forward until the tab on the blower housing clicks into the slot on the tube.
2. Insert the concentrator nozzle onto the blower tube to lock. A concentrator nozzle is used to increase
air ow in tight areas: ower beds, under decks, etc.
WARNING
Do not connect to a power supply until assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
Fig. 1
Blower Tube
Slot
Concentrator
Nozzle
Fig. 3
Mulch/Vacuum Gate
Open
Shut
Fig. 2
Vacuum Tube Aligning Tab
Vacuum Tube Locking Tab
To Next Page
