15
ASSEMBLY

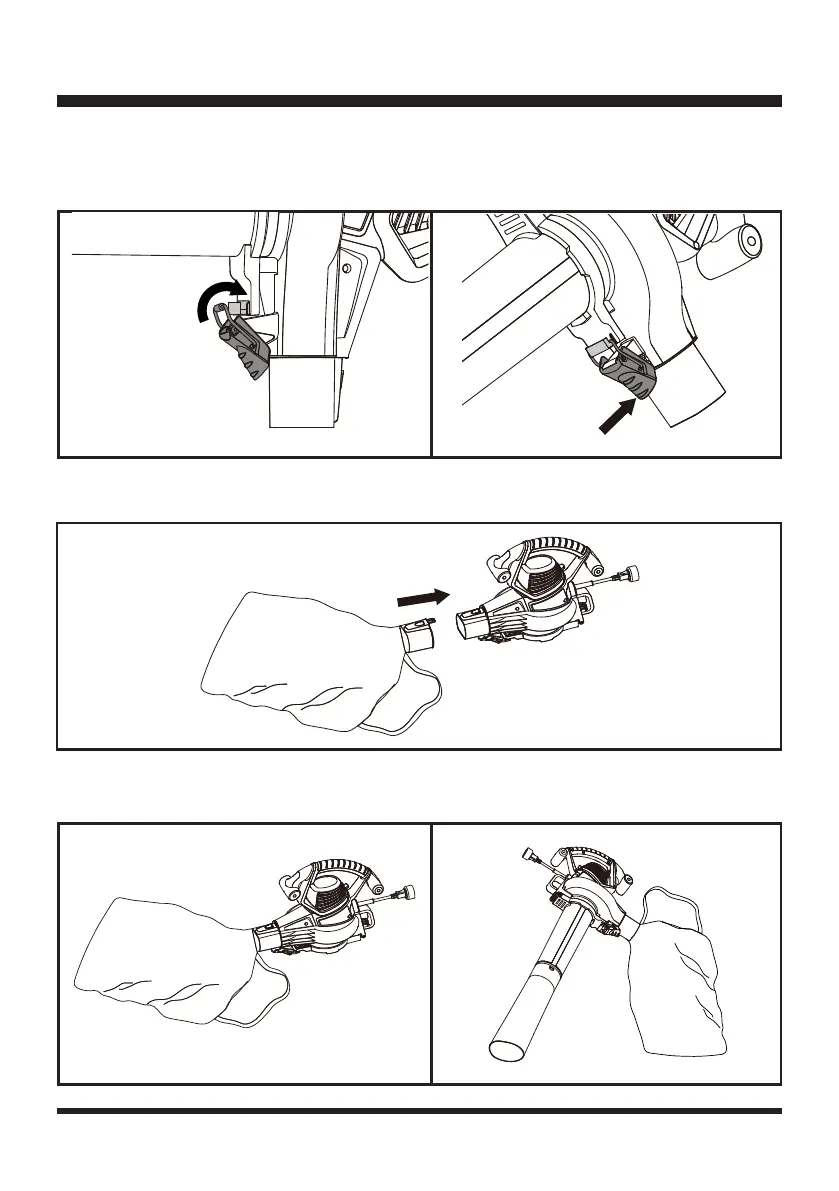

4. With the assembled vacuum tube properly aligned, insert into the aligned gate opening and using
the latching gate lock, lock vacuum tube into place. Make certain the vacuum tube aligning tab is
rmly "seated" before locking the latch (Fig. 4).
5. Add collection bag by aligning the plastic connector sleeve on the bag to the blower exhaust (Fig. 5).
6. While standing in the operating position, adjust the length to t the operator’s size. Pull the tab to
lengthen, pull the strap to shorten (Fig. 6 & 7).
Fig. 4
Fig. 5
Fig. 7
Fig. 6
