WARNING

Never operate the tool without the proper safety devices in place and working. Never operate the tool

with damaged safety devices. Failure to heed this warning can result in serious personal injury.

Fig. 1

Fig. 4

Fig. 2

Fig. 5

Fig. 3

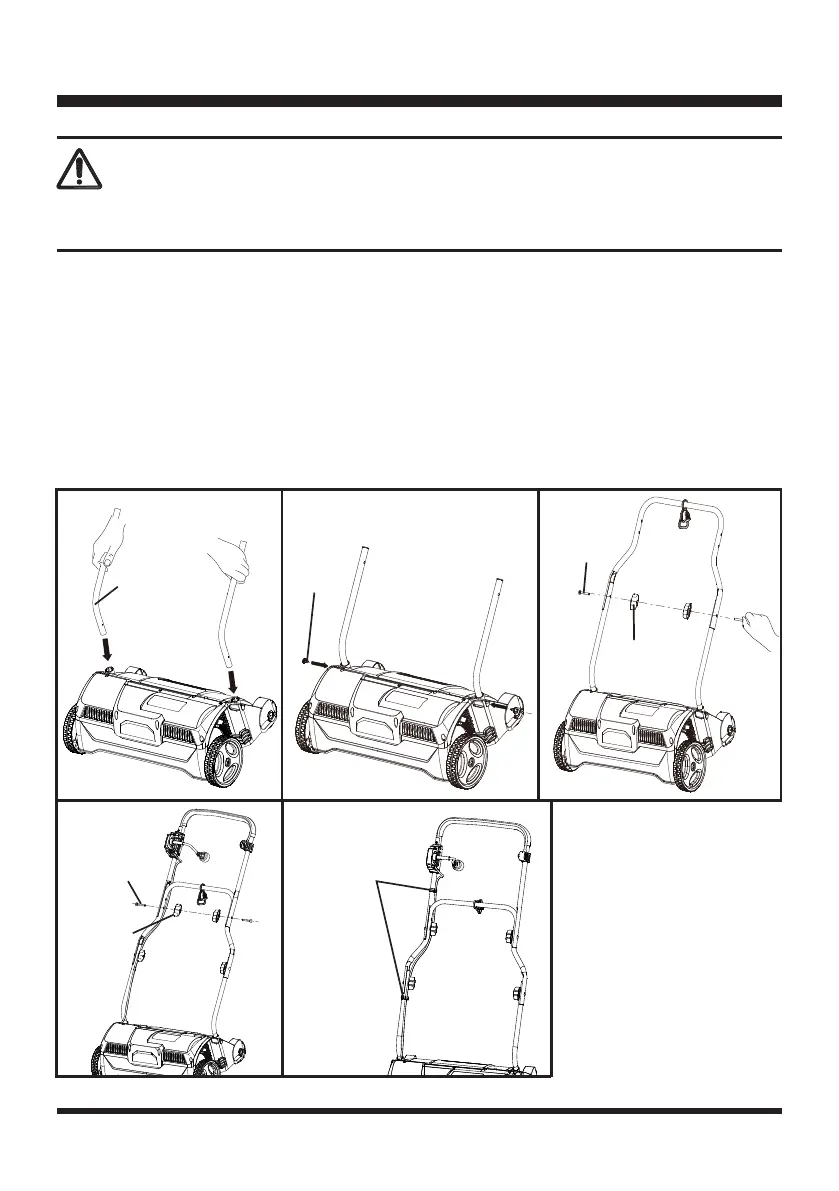

ASSEMBLY

ASSEMBLING THE HANDLE

(See Figs. 1-5)

■ Insert the two lower handles into the deck and secure them with two screws (Fig. 1 & 2).

■ Place the cord retainer on middle handle. Secure the middle handle to the lower handle with two

carriage bolts and two wing nuts (Fig. 3).

■ Secure the upper handle to the middle handles, at the desired height, with two carriage bolts and

two wing nuts (Fig. 4). There are two possible positions.

■ Use the two cable clips to attach the power cord to the handles (Fig. 5).

During assembly, ensure that the power cable is not squeezed and that it has sufcient play.

Lower Handle

Screw

Carriage

Bolt

Wing Nut

Carriage Bolt

Cable Clips

LawnMaster GVB1316 User Manual
